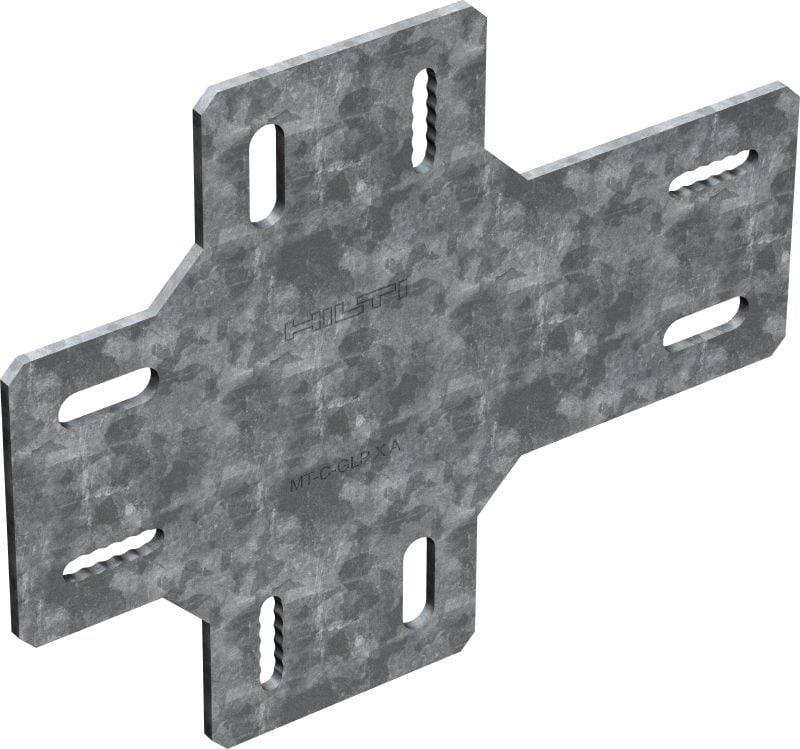

MT-C-GLP X A OC Connector plate
Connector MT-C-GLP X A OC #2332783
Hot-dip galvanized connector plate for cantilever connections with MT-80 MT-100 girders in moderately corrosive environments
- Material composition: Q355 or better steel
- Surface finish: Outdoor Coated - HDG
- Material thickness: 4 mm
Choose options
Pack size
- 10 pc
Quantity
Box
Total Pieces
10
Discounted net
$320.00
$320.00 / 1 Box
Technical Data
Material composition
Q355 or better steel
Surface finish
Outdoor Coated - HDG
Material thickness
4 mm
Weight
2.2 lb
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Documents
pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]
Features & Applications
Features
- Increased load resistance for cantilevered girders
- Adjustable – elongated holes allow 5 mm (1/4") adjustability
- Compatible with MT Thread Forming Bolt channel connectors – for much faster, adaptable assembly
- Corrosion resistance – hot-dip galvanized to help protect against moisture and chemical corrosion
- Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
Applications
- Right-angle connections between MT-80 girders (including cantilevers)
- Suitable for use in moderately corrosive environments
