MT-C-LDP L1 OC Angle connector

Connector MT-C-LDP L1 OC #2320180

Configurator
Technical Data
Documents
Features & Applications
Related Products

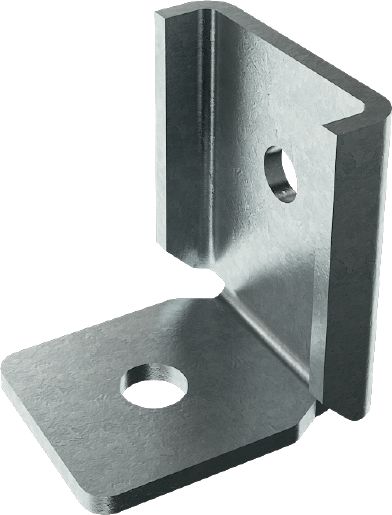

MT-C-LDP L1 OC, L-shape Load Disctribution Plate Connector, 2320180

Angle connector for assembling strut channels structure or channel with Load Distribution Plate, for outdoor use with low pollution

  • Material composition: Q235 or better steel
  • Surface finish: Outdoor Coated - HDG
  • Material thickness: 4 mm

Choose options

Pack size
  • 8 pc
 Product options
Quantity
Box
Total Pieces
8
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$39.75
$39.75 / 1 Box

Technical Data

Material composition
Q235 or better steel
Surface finish
Outdoor Coated - HDG
Material thickness
4 mm
Weight
0.5 lb
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Certificate
Documentation
Technical information
Brochure
Operating Instruction
pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – compatible with the Hilti MT Twist-Lock, MQM and MRN Channel Nuts, a faster alternative to spring nuts for assembling a modular support system
  • Vertical channel can be inclined up to 7-degrees for compensation of roof pitch
  • Connector with channel can be inclined up to 10-degrees for compensation of roof pitch

Applications

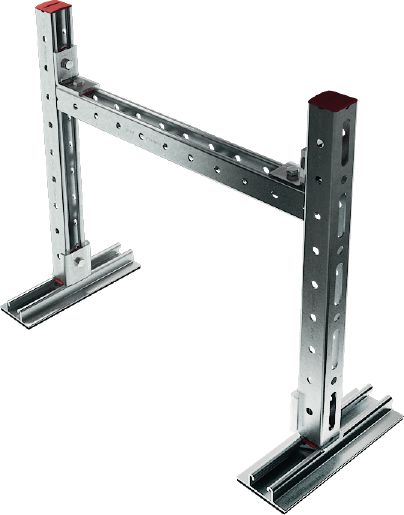

  • Fastening connections between two strut channels or one channel and Load Distribution Plate

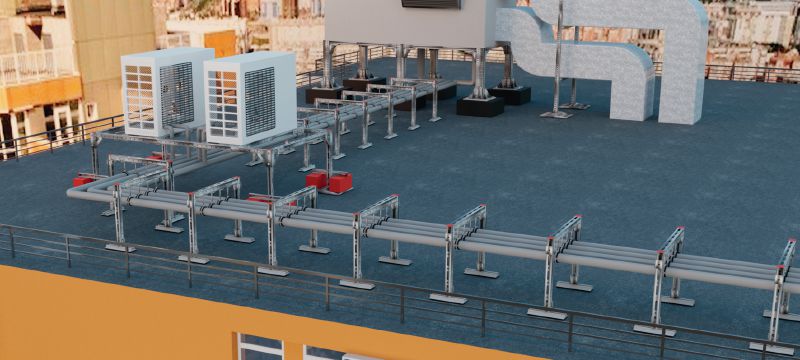

  • Perfectly suitable for outdoor applications
