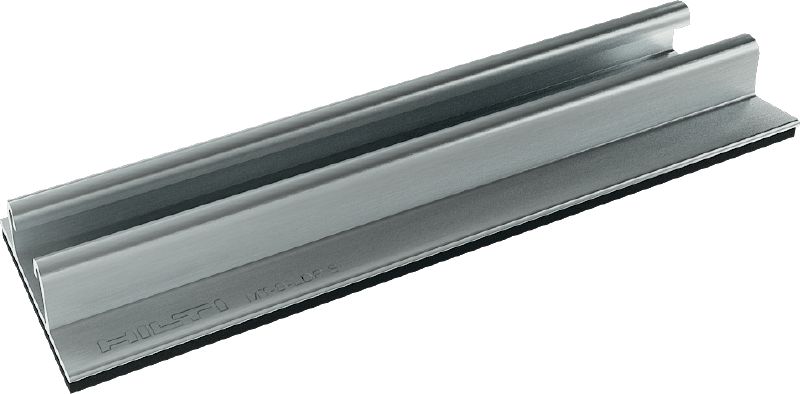

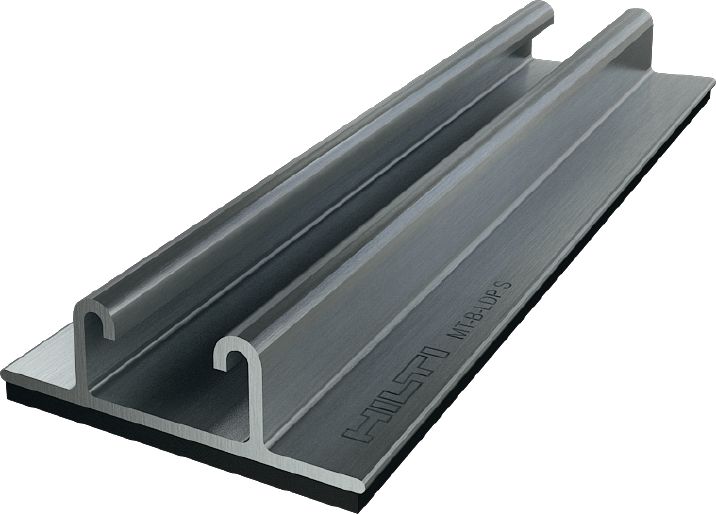

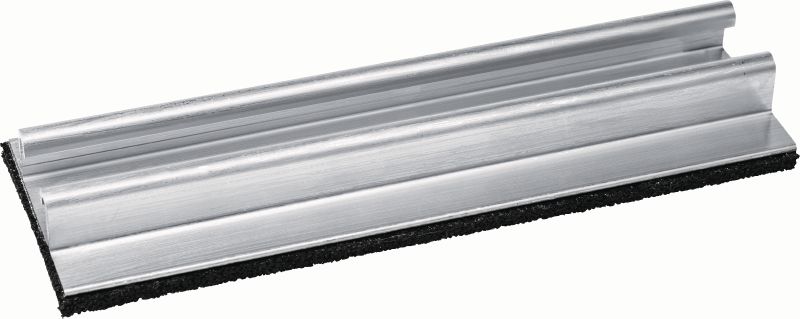

MT-B-LDP S Load distribution plate
New productItem #r13751846
Small load distribution plate for installing ventilation ducts, pipework or cable trays on flat roofs
- Material composition: Aluminium, EPDM rubber, Recycled Rubber blend SBR-PU-EPDM
- Surface finish: n/a
- Material thickness: 2.75 mm
Share
Features
- Part of the Hilti MT system – an economical, all-in-one solution for rooftop ventilation and other modular support systems
- Easy to install – compatible with the Hilti MT Twist-Lock, MQM and MRN Channel Nut, a faster alternative to spring nuts for assembling a modular support system
- Easier to handle and transport compared to pre-fabricated welded steel
- Includes a non-slip anti-vibration mat
- Suitable for outdoor applications, with features such as aluminum feet for better weather resistance
Applications
- Installing ventilation ducts, pipework and cable trays on flat roofs
- Suitable for use in outdoor environments

Technical Data
Documents
-
- Operating Instruction MT-B-LDP-S, Italian, Russian, Hebrew, Serbian, German, Swedish, Turkish, Ukrainian, French, Arabic, Portuguese, Sardinian, Finnish, Spanish, Malay, Thai, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, English, Kazakh, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 6.6 MB ]
