MT-CC-70 OC U-Fitting

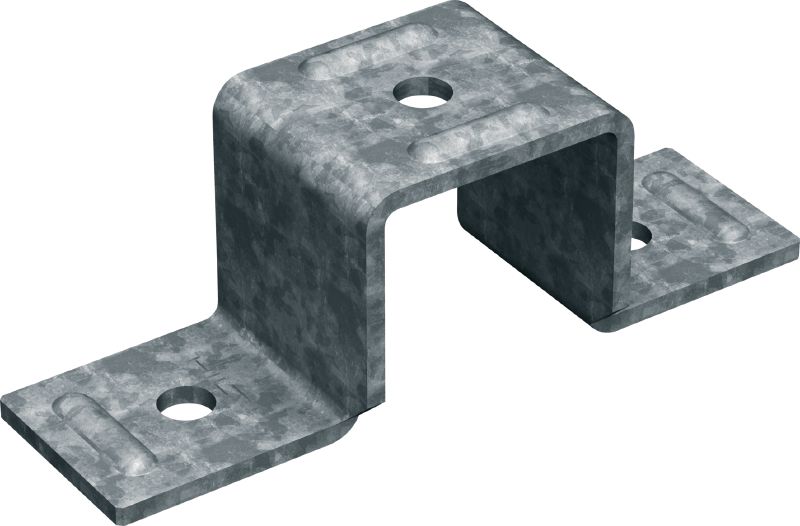

Clamp MT-CC-70 OC #2322404
Clamp for cross-connection of one MT girder to another channel/girder, for outdoor use with low pollution
- Material composition: Q235 or better steel
- Surface finish: Outdoor Coated - HDG
- Material thickness: 4 mm
Choose options
Pack size
- 16 pc
Quantity
Box
Total Pieces
16
Discounted net
$173.00
$173.00 / 1 Box
Technical Data
Material composition
Q235 or better steel
Surface finish
Outdoor Coated - HDG
Material thickness
4 mm
Weight
0.8 lb
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Documents
pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]
Features & Applications
Features
- Compatible with MT Twist-Lock and MT Thread Forming Bolt channel connectors – for much faster, adaptable assembly
- Universal – complete many different applications using few parts
- Twist-lock and Thread Forming Bolt channel connector takes up shear and tensile loads
- Compatible with multiple strut channel/girder profiles
- Corrosion resistance – hot-dip galvanized to help protect against moisture and chemical corrosion
Applications
- Cross-connection of one strut girder to another channel or girder
- Suitable for use in moderately corrosive environments
