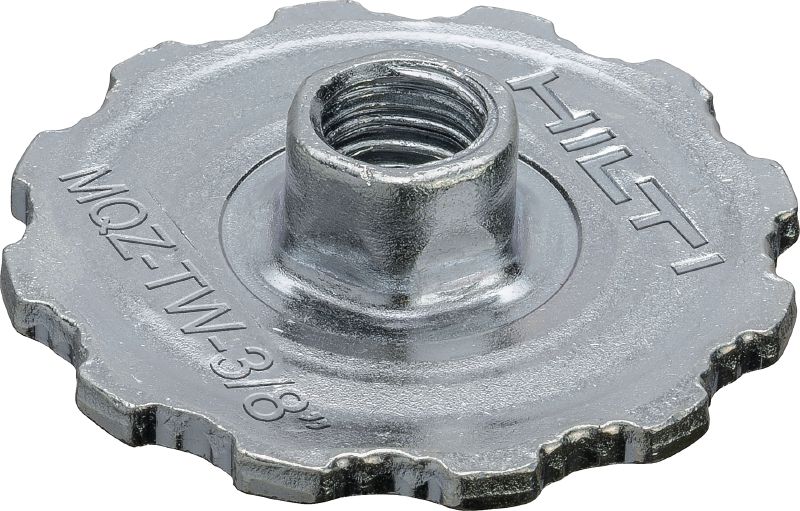

MT-ZT Trapeze wheel
Quick adjust plate for threaded rod trapeze applications with C-Channels
- Material composition: DD11 MOD - HN 547, DC04 - DIN EN 10130
- Surface finish: Indoor Coated - Electro galvanized
- Material thickness: 1/8 in
ultimate
Customers also searched for Trapeze Wheel, nut or Wheel.
Choose options
Thread connection - M
- 3/8 in
Wrench size
- 1/2 in
Pack size
- 50 pc
Quantity
Package
Total Pieces
50
Discounted net
$110.25
$110.25
/
1 Package
Technical Data
Material composition
DD11 MOD - HN 547, DC04 - DIN EN 10130
Surface finish
Indoor Coated - Electro galvanized
Material thickness
1/8 in
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Product Class
Ultimate
Documents
pdf Corrosion handbook, English [ 9.4 MB ]
Features & Applications
Features
- Single-piece part combining nut and washer
- Faster and less error-prone installation compared to traditional alternatives
- Shaped for optimal handling
- Easier fine-tune adjustments for leveling
Applications
- Fastening installation C-Channel profiles to threaded rods
- Easy height adjustment of C-Channels on threaded rod connections
For approval or certificate information, please see individual items.
