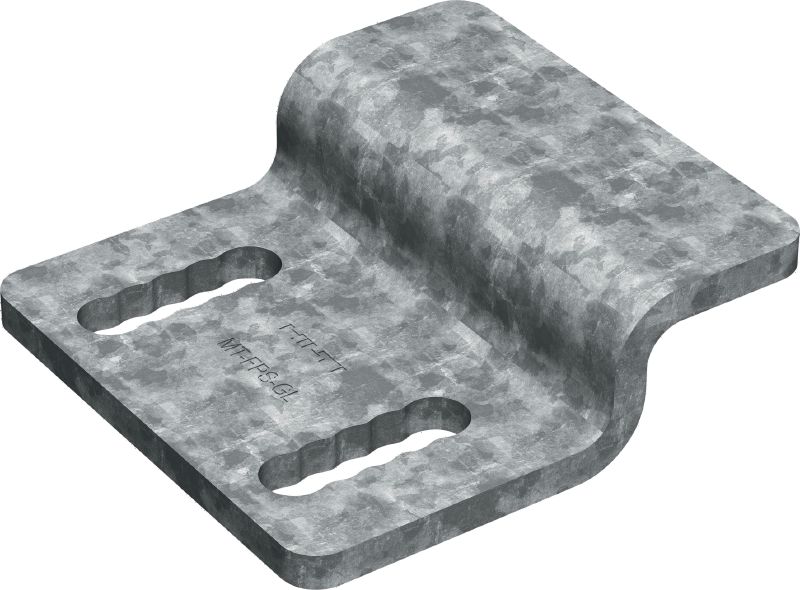

MT-FPS-GL OC Pipe shoe guide (wide)
Pipe shoe MT-FPS-GL OC fixation #2273701
Adjustable guiding bracket for fastening sliding pipe shoes to MT-90 and 100 girders, for outdoor use with low pollution
- Material composition: Q355 or better steel
- Surface finish: Hot-dip galvanized - for outdoor use
- Material thickness: 6 mm
Choose options
Pack size
- 10 pc
Quantity
Box
Total Pieces
10
Discounted net
$127.00
$127.00 / 1 Box
Technical Data
Material composition
Q355 or better steel
Surface finish
Hot-dip galvanized - for outdoor use
Material thickness
6 mm
Weight
0.9 lb
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Documents
Features & Applications
Features
- Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
- Adjustable – two slotted anchor holes to simplify pipe shoe positioning and fastening
- Easy to install – one-step fastening using Hilti MT-TFB thread-forming bolts
- Adaptable for any pipe shoe size
Applications
- Fastening pipe shoes to MT-90 and MT-100 girders without restricting movement
- Suitable for use in moderately corrosive environments
