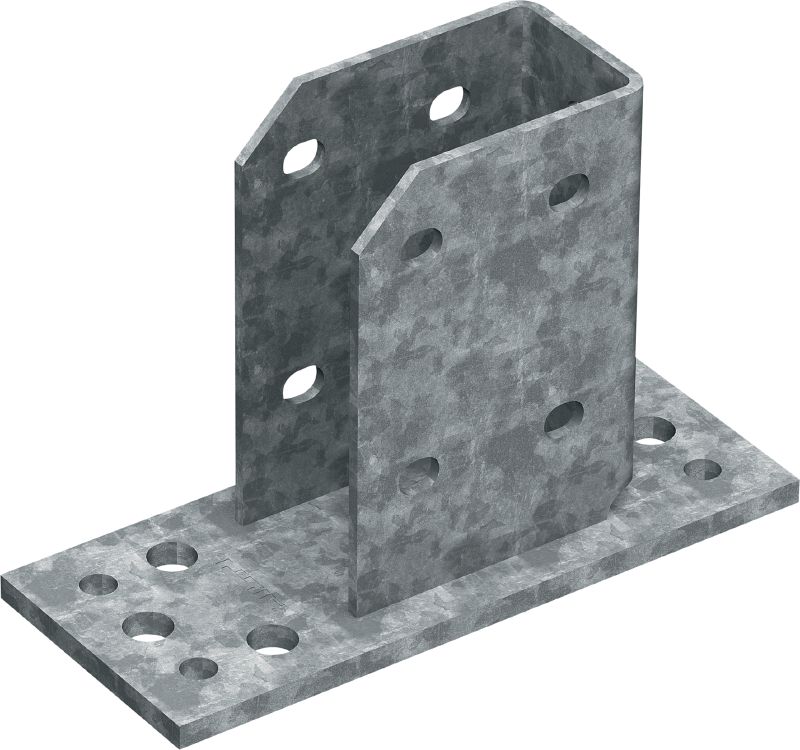

MT-B-GS T OC Girder baseplate
Baseplate MT-B-GS T OC #2272100
Base connector for anchoring MT-70 and MT-80 girder structures to concrete and steel, for outdoor use with low pollution
- Material composition: Q355 or better steel
- Surface finish: Hot-dip galvanized - for outdoor use
- Material thickness: 8 mm
Choose options
Pack size
- 2 pc
Quantity
Box
Total Pieces
2
Discounted net
$140.00
$140.00 / 1 Box
Technical Data
Material composition
Q355 or better steel
Surface finish
Hot-dip galvanized - for outdoor use
Material thickness
8 mm
Weight
4.8 lb
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Features & Applications
Features
- Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
- Easy to install – one-step assembly using Hilti MT-TFB thread-forming bolts
- Adaptable – unlike welding, modular metal framing can be modified for future MEP requirements
- Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
- Part of a complete Hilti solution – compatible with our direct fastening and anchoring solutions
Applications
- Fastening MT-70 and MT-80 girders to concrete floors, walls or ceilings
- Fastening MT-70 and MT-80 girders to structural steel
- Anchoring metal framing and MEP support structures with light loads to a base material
- Suitable for use in moderately corrosive environments
