MT-C-LL2 OC Angle connector

Angle connector MT-C-LL2 OC #2272053

Configurator
Technical Data
Documents
Features & Applications
Related Products
MT System Connector
MT System Connector

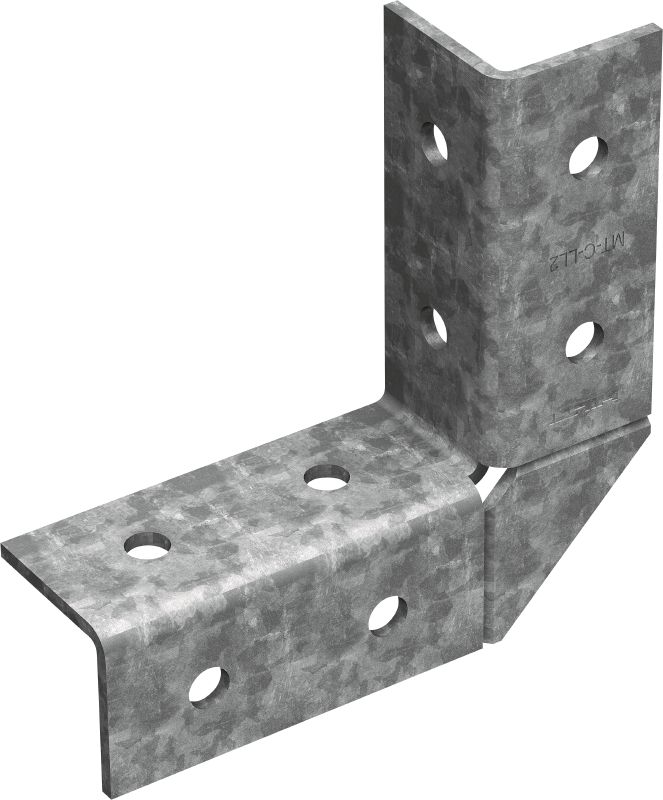

Right-angle, elongated connector for assembling strut channel structures, for outdoor use with low pollution

  • Material composition: Q235 or better steel
  • Surface finish: Hot-dip galvanized - for outdoor use
  • Material thickness: 4 mm

Choose options

Pack size
  • 10 pc
 Product options
Quantity
Box
Total Pieces
10
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$207.00
$207.00 / 1 Box

Technical Data

Details
Technical illustrations
Material composition
Q235 or better steel
Surface finish
Hot-dip galvanized - for outdoor use
Material thickness
4 mm
Weight
1.3 lb
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Certificate
Approval document
Documentation
Technical information
Brochure
Sustainability Documentation
Operating Instruction
pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
  • Adaptable – unlike welding, angle brackets allow you to modify strut channel framing during installation and for future MEP requirements
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
  • Corrosion resistance – hot-dip galvanized to help protect against moisture and chemical corrosion

Applications

  • Fastening L-shaped connections between any MT strut channels
  • Assembling 2D metal framing for MEP support structures, such as strut trapeze
  • Suitable for use in moderately corrosive environments
