MQW-3/45 Angle bracket

Name: MQW-3/45 Angle bracket
Brand: Hilti
SKU: r11307518

New product

Item #r11307518

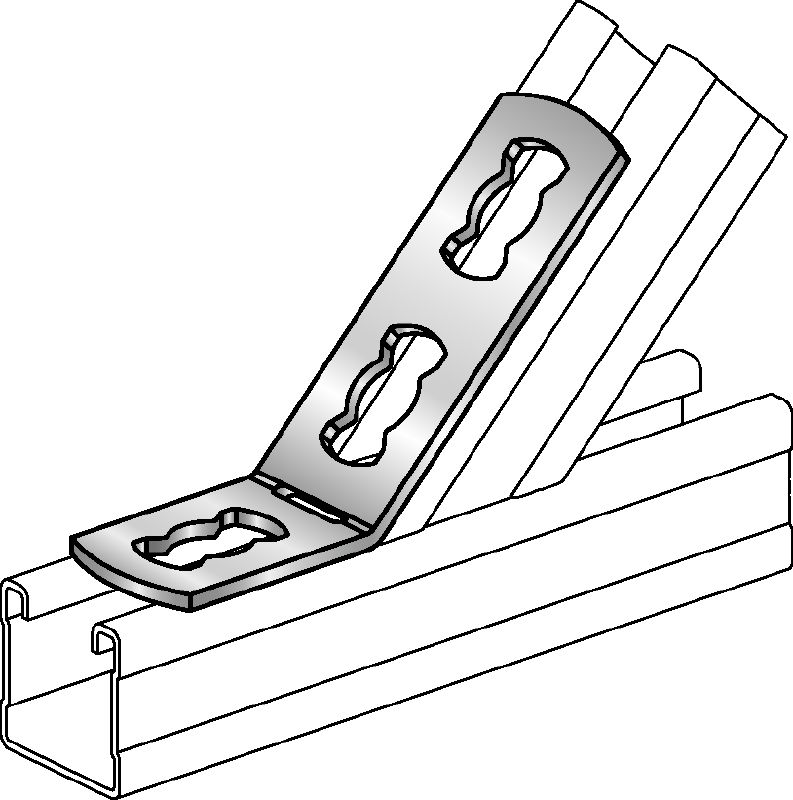

Galvanized 45- or 135-degree angle for connecting multiple MQ strut channels

Material composition: DD11 MOD - HN 547, S235JR - DIN EN 10025
Surface finish: Indoor Coated - Electro galvanized
Material thickness: 4 mm

More technical data

Features

Compatible with push button channel connectors – for much faster, adaptable assembly
Adjustable – easily fit and repositioned along strut channels

Applications

Assembling frames or connections with 45/135-degree angles
Compatible with multiple MQ strut channels
Recommended for use in dry, interior environments

Technical Data

Looking for technical information?

This product comes in different variants with specific item numbers and technical data. To see specific technical information for different product items, please select the according variant in the configurator above.

Go to product configurator

Documents

45 degree three hole angle MQW-3/45

- PDF Productivity Component Wall Chart, [ 3.4 MB ]
- PDF LEED Information for Miscellaneous Strut Parts, English, [ 153.7 kB ]
- PDF Corrosion handbook, English, [ 2.6 MB ]

MQW-3/45 Angle bracket

Galvanized 45- or 135-degree angle for connecting multiple MQ strut channels

Technical Data

Documents
