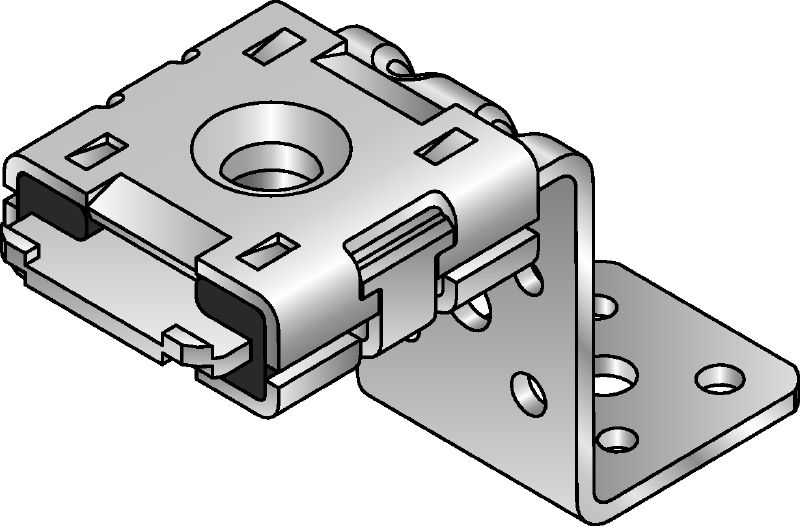

MVA-ZP ventilation support
Galvanized air duct bracket for fastening heavy ventilation ducts overhead
- Noise reduction: 12 dB (A)
- Material composition: Angle: St1203 - DIN EN 10130, Plate: DC01-A-g - DIN EN 10130
- Surface finish: Indoor Coated - Electro galvanized
Technical Data
Noise reduction
12 dB (A)
Material composition
Angle: St1203 - DIN EN 10130, Plate: DC01-A-g - DIN EN 10130
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness Insulation Material
40° ±5° Shore A
Temperature resistance
-40 - 230 °F
Documents
Features & Applications
Features
- Convenient solution for fastening ventilation ducts directly to the ceiling
- Scale for precise alignment and stand-off installation
- Movable cage – compensates for structural tolerances and allows repositioning to help avoid drilling into rebar
- Hole size/shape suitable for fastening to ducts using self-drilling screws (4.2, 4.8, 6.3), blind rivets
- 30 mm space between the threaded rod and the duct – for easier subsequent addition of insulation
Applications
- Fastening rectangular air ducts to ceilings
For approval or certificate information, please see individual items.
