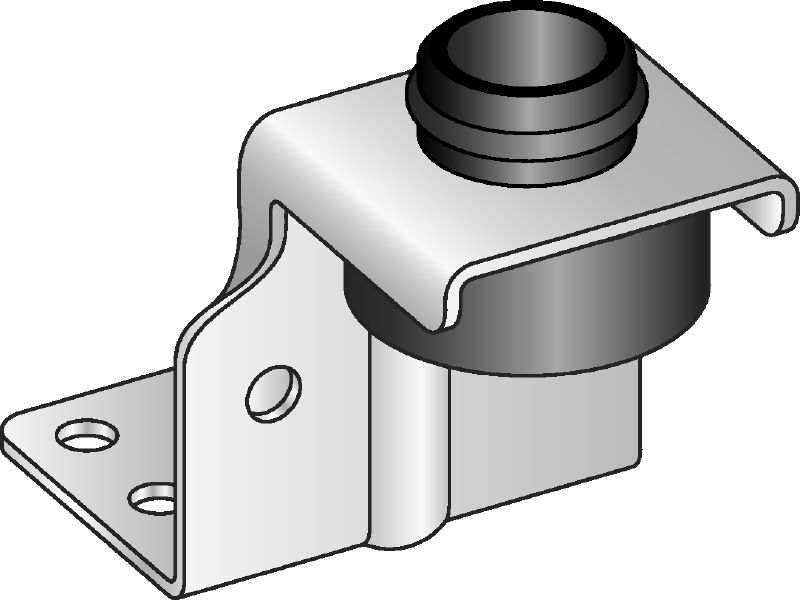

MVA-Z ventilation support
#386532
Galvanized air duct bracket for fastening light ventilation ducts overhead
- Thread connection - M: M8, M10
- Noise reduction: 18 dB (A)
- Maximum load - F: 500 N
Choose options
Thread connection - M
- M8, M10
Maximum load - F
- 500 N
Pack size
- 50 pc
Quantity
Box
Total Pieces
50
Discounted net
$120.00
$120.00 / 1 Box
Technical Data
Thread connection - M
M8, M10
Noise reduction
18 dB (A)
Maximum load - F
500 N
Material composition
DD11 steel - DIN EN 10111, EPDM
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness Insulation Material
60° ±5° Shore A
Temperature resistance
-40 - 230 °F
Documents
Features & Applications
Features
- Easy-to-install threaded rod suspension system for ventilation ducts
- Built-in acoustic insulation with through-hole and preassembled U-washer for M8/M10 threaded rods
- Height adjustment possible even after installation
- Insulation can be installed over the bracket
- Hole size/shape suitable for self-drilling screws (4.2) and blind rivets
Applications

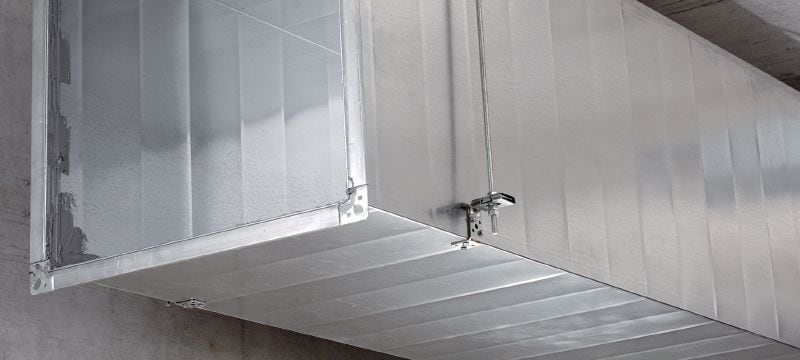

- Fastening rectangular air ducts to ceilings
