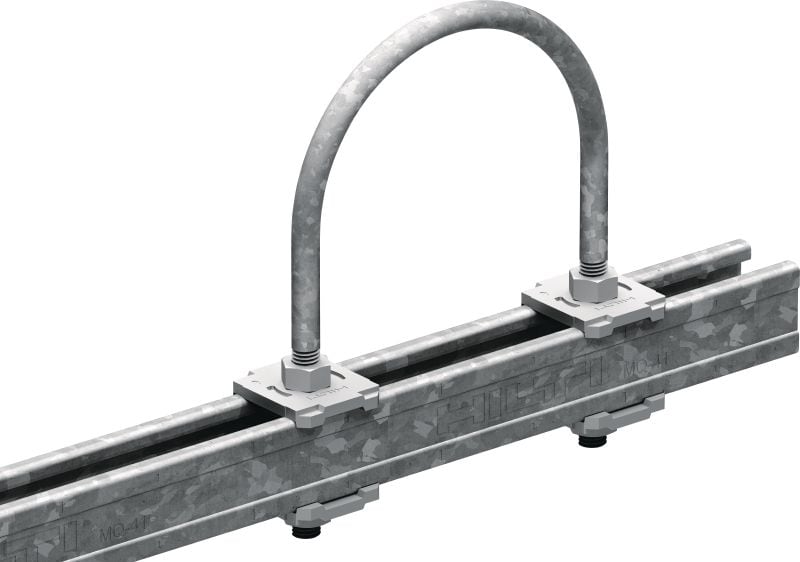

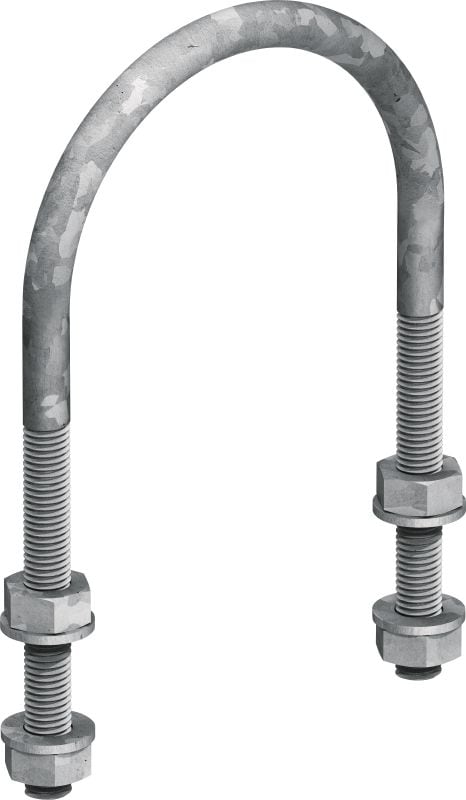

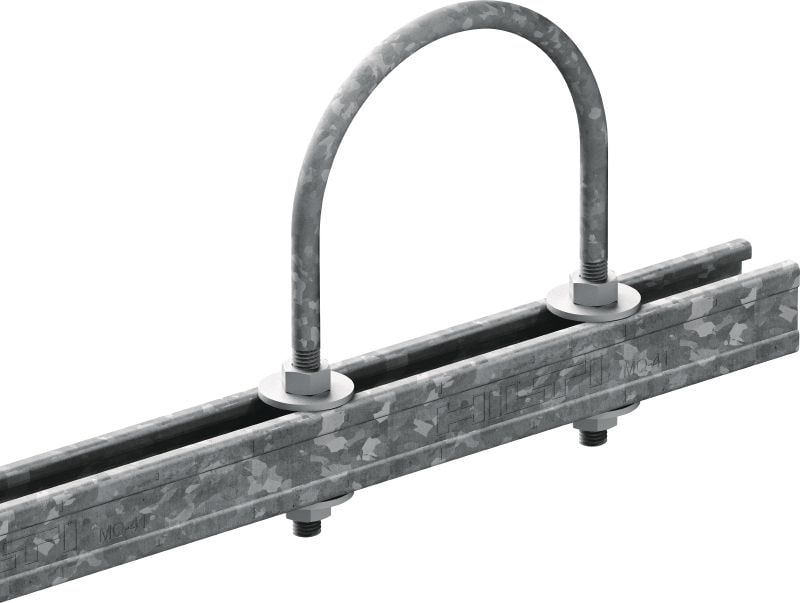

MP-UB OC U-Bolt (imperial)

U-bolt MP-UB 2 x 3/8 OC #2288427

Outdoor coated (OC) U-bolt for universal piping applications

  • Nominal pipe size (imperial): 2 in
  • Thread connection - M: 3/8 in
  • Approvals: FM approved, UL approved EX15279
standard

Choose options

Thread connection - M
  • 3/8 in
  • 1/2 in
  • 7/8 in
  • 1 in
Nominal pipe size (imperial)
  • 1-1/2 in
  • 2 in
  • 2-1/2 in
  • 3 in
  • 3-1/2 in
  • 4 in
  • 5 in
  • 6 in
  • 8 in
  • 10 in
  • 12 in
  • 14 in
  • 16 in
  • 18 in
  • 20 in
  • 24 in
Nominal pipe size
  • 40 mm
  • 50 mm
  • 65 mm
  • 80 mm
  • 100 mm
  • 125 mm
  • 150 mm
  • 200 mm
  • 250 mm
  • 300 mm
  • 350 mm
  • 400 mm
  • 450 mm
  • 500 mm
  • 600 mm
Pack size
  • 2 pc
  • 10 pc
  • 20 pc
Product options
Quantity
Package
Total Pieces
20
You can not see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

$113.00

$113.00 / 1 Package

Technical Data

U-bolt
Nominal pipe size (imperial)
2 in
Thread connection - M
3/8 in
Approvals
FM approved, UL approved EX15279
Thread length - L
3 in
Fire resistance ( Yes/No)
No
Height - H
5.1 in
Material composition
Q235 or better steel
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
5 ft-lbf
Width - B
3.4 in
Product Class
Standard

Documents

Features & Applications

Features

  • Suitable for suspended or standing installation applications
  • Small contact surface between U-bolt and pipe
  • Channel through bolting up to a diameter of 12"
  • Approved for sprinkler applications under FM
  • Approved for sprinkler applications under UL / NFPA

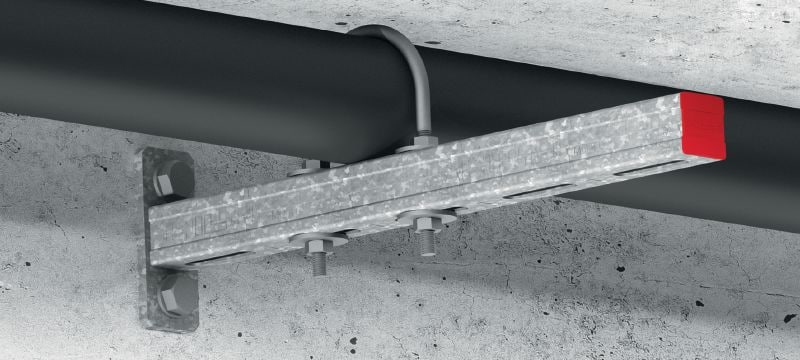

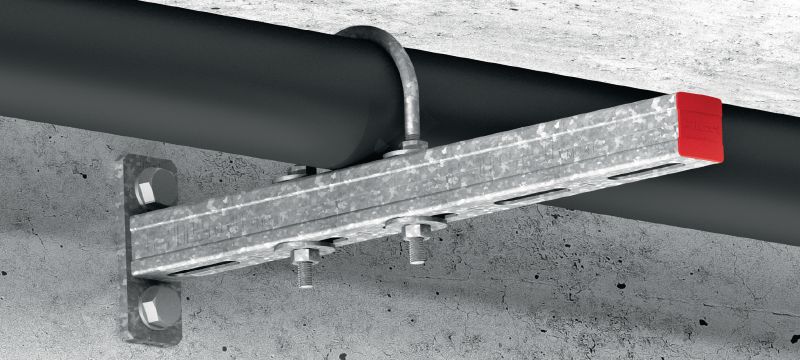

Applications

  • Universal pipe fixation up to 24"
  • Single-point fastening for sprinkler applications up to 12"
  • Installation of non-insulated pipes in industrial environments
