Nuron

PR 40-22 Single slope rotating laser level

Rotating laser PR 40-22 #2399578

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
Still life picture of the rotating laser PR 4X-22 without battery

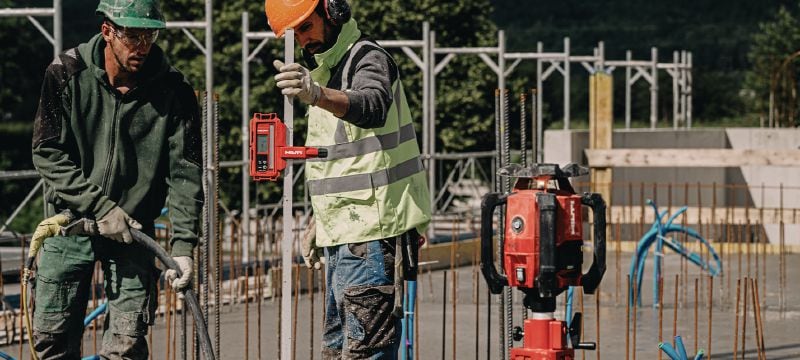

Cropped application picture of the rotating lasers PR 400-22. Concrete pouring levelling.

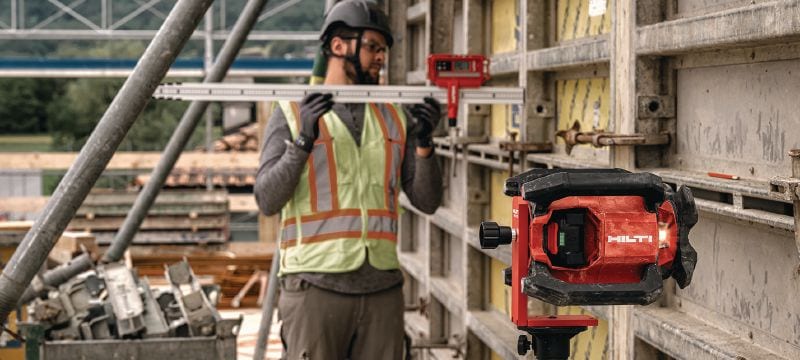

Cropped application picture of the rotating lasers PR 4-22, PR 40-22. Formwork levelling.
Cropped application picture of the rotating lasers PR 400-22, PR 40-22. Formwork wall alignment.

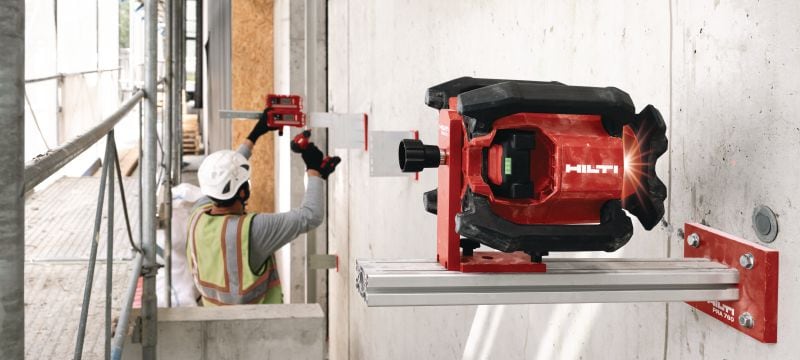

Cropped application picture of the rotating lasers PR 40-22. Facade alignment application.
Cropped application picture of the rotating lasers PR 40-22. Batter board application.

Robust exterior rotary laser level with automatic functions for long-distance leveling, aligning, sloping and squaring (Nuron battery platform)

  • Accuracy: ±0.06 in at 100 ft
  • Laser class: < 4.85 mW, 620-690 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
  • Self leveling range at room temperature: ±5(± 8.7%) °

Customize your kit

Tool Body
Tool body with case Includes: 1x PRA 400 Remote contr./laser rec., 2x AA (2) Battery alkaline, 1x PRA 83 Laser receiver holder, 3x PR 40-22 Clip printed, 1x PR 4x-22 Tool case assy
How many kits do you want to order?
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$2,223.99

Technical Data

Accuracy
±0.06 in at 100 ft
Laser class
< 4.85 mW, 620-690 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
Self leveling range at room temperature
±5(± 8.7%) °
Rotation speed
300, 600, 1000 rpm
IP protection class
IP 66 (EN 60529) - battery compartment excluded
Operating temperature range
-4 - 122 °F
Maximum operating time
35 h

Documents

Approval document
Operating Instruction
pdf 2412748_PR_40_web [ 1.5 MB ]

Features & Applications

Features

  • Easy to use – one button design enables one-person operation, allowing you to set automatic functions within 300m (diameter)
  • 2-in-1 laser remote/receiver – universal PRA 400 detects rotating laser beams up to 800m, displays digital offset values, and controls automatic functions of your rotary laser, helping you complete advanced layouts
  • Faster workflows – automatic vertical alignment, digital slope entry, and check slope features help simplify and speed up your layout applications
  • Durable and drop-resistant – new aluminum core, internal dampers, shock-absorbing head/handles, and IP66 rating to help maintain laser accuracy in rough jobsite conditions
  • Smarter features with Nuron – smart asset tracking, battery life indication, and all on one battery platform help keep your tool park streamlined and cost-efficient

Applications

  • Horizontal leveling – formwork, concrete pours, excavation, height transfer etc.
  • Vertical aligning – transferring building lines, aligning columns, façades, vertical formwork, etc.
  • Slope/ grading for ramps, parking lots, and pipes
  • Squaring for formwork applications

Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • After 2 years repair costs are capped
  • 1 or free, in and out of the repair center the same day or repair is free of charge
  • No registration or proof of purchase ever required
More information about Tool Services

Fleet Management

  • High-performing tools and latest technology help to increase jobsite productivity.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
  • Free verification of tool accuracy in accordance with manufacturer’s specifications.
  • Loan tools during repair to reduce downtime.
  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
More information about Fleet Management
