PS 300 Ferroscan system

Ferroscan PS 300 with quick scan, 2D

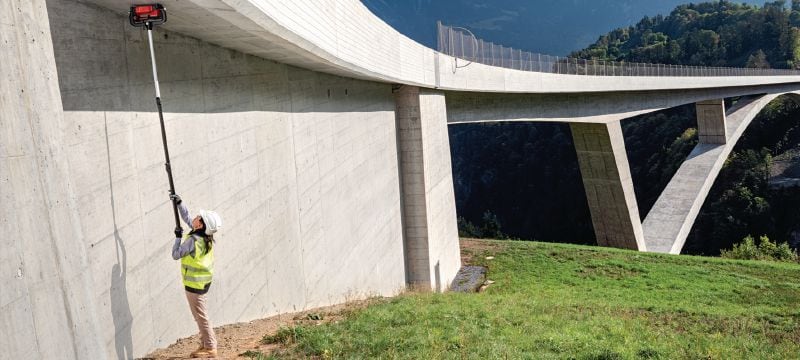

Ferroscan PS 300 with extension at bridge

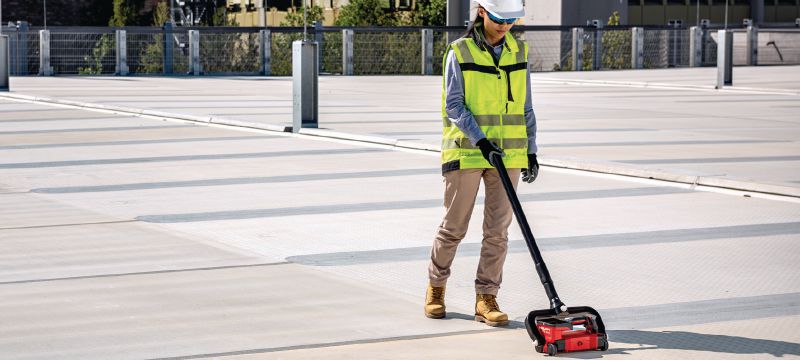

Ferroscan PS 300 with extension at parking garage
Ferroscan PS 300 with extension at bridge
Ferroscan PS 300 with extension at bridge

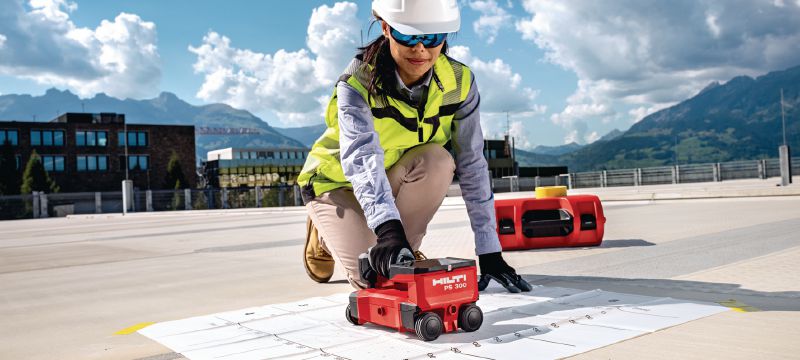

Ferroscan PS 300 with image scan at parking garage
Ferroscan PS 300 with profis Detection in office

Concrete detector for rebar localization, depth measurement and size estimation in structural analysis

  • Max. detection depth for object localization: 8 in
  • Accuracy of depth indication: 1% +/-3mm
  • Localization accuracy: 1% +/-3mm mm

Customers also searched for rebar scanner, concrete scanner, scanner or concrete scanning.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $17,029.00

Technical Data

Max. detection depth for object localization
8 in 1
Accuracy of depth indication
1% +/-3mm 2
Localization accuracy
1% +/-3mm mm 3
Minimum distance between two neighbouring objects
1.18 in
Data memory (scanner)
200 scans
Working temperature range
14 - 122 °F
Weight with batteries
4.5 lb
  1. Performance and accuracy can be significantly affected by site conditions. See operating instructions.
  2. Performance and accuracy can be significantly affected by site conditions. See operating instructions.
  3. Performance and accuracy can be significantly affected by site conditions. See operating instructions.

Documents

pdf PS 300 Operation Instruction ENU, English [ 16.2 MB ]
pdf PS 300 Operation Instruction FRA, French [ 16.7 MB ]

Features & Applications

Features

  • Integrated display provides rebar layout visuals in top view and sectional view for on-the-spot structural analysis
  • Smart algorithm helps accurate depth measurements for rebar
  • Wide sensor area enables quick and easy scan over large areas
  • Record scan data for documentation and structural analysis

Applications

  • Verification and analysis for 1st layer rebar
  • Checking concrete cover over large areas for structural repair work
  • Building acceptance inspections and quality control
  • Generation of structural assessment reports including statistics and visual presentation in 2D/3D views of areas

For approval or certificate information, please see individual items.
