Precise transpointer to detect entry and exit points, as well as the distance between them
Precise transpointer to detect entry and exit points, as well as the distance between them
Precise transpointer to detect entry and exit points, as well as the distance between them
Precise transpointer to detect entry and exit points as well as the distance between them
Precise transpointer to detect entry and exit points as well as the distance between them
Precise transpointer to detect entry and exit points as well as the distance between them

Precise transpointer to detect entry and exit points, as well as the distance between them

  • Accuracy of depth indication: 4%
  • Operating temperature range: -4 - 131 °F
  • Maximum operating time: 17 h

Customers also searched for through penetration, coring, drilling or transpoint.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $1,364.00

Technical Data

Accuracy of depth indication
4% 1
Operating temperature range
-4 - 131 °F
Maximum operating time
17 h
Working temperature range
-4 - 131 °F
Dimensions (receiver)

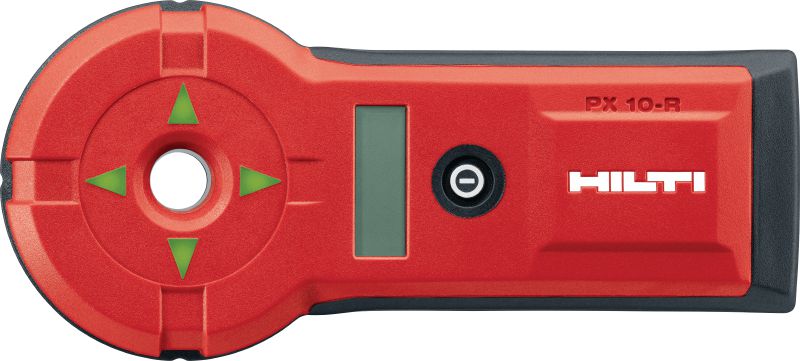

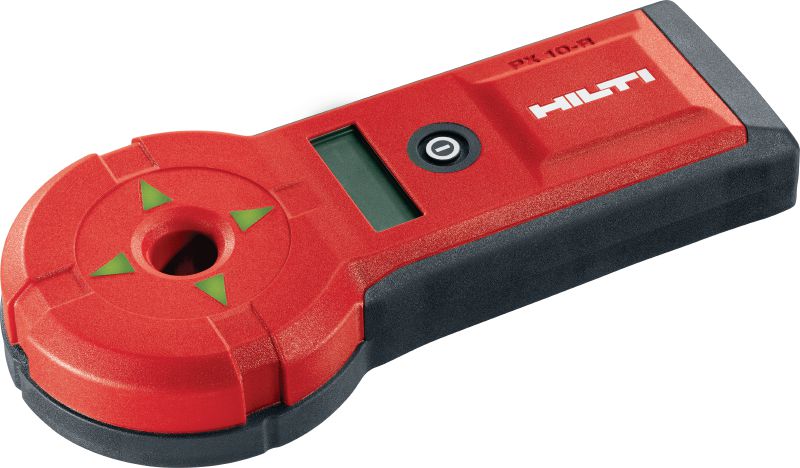

8.3 x 3.7 x 1.3 in
Dimensions (transmitter)

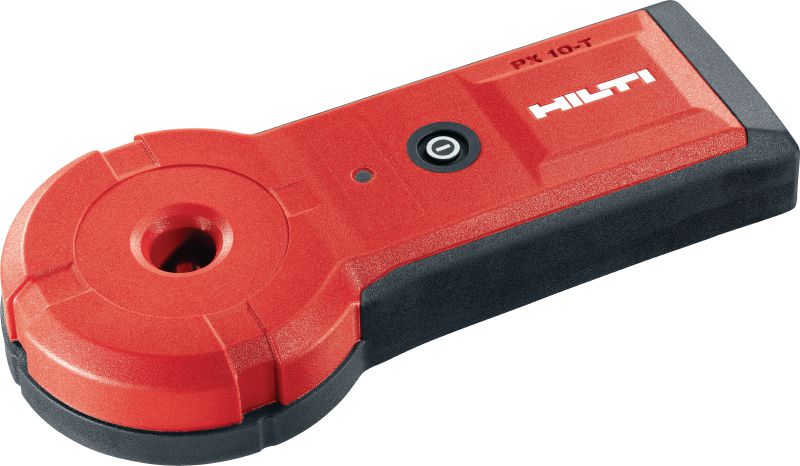

8.3 x 3.7 x 1.3 in
Weight with batteries
1.1 lb
  1. Performance and accuracy can be significantly affected by site conditions. See operating instructions.

Documents

pdf Operating Instruction PX-10, Bulgarian, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Japanese, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Chinese [ 11.6 MB ]

Features & Applications

Features

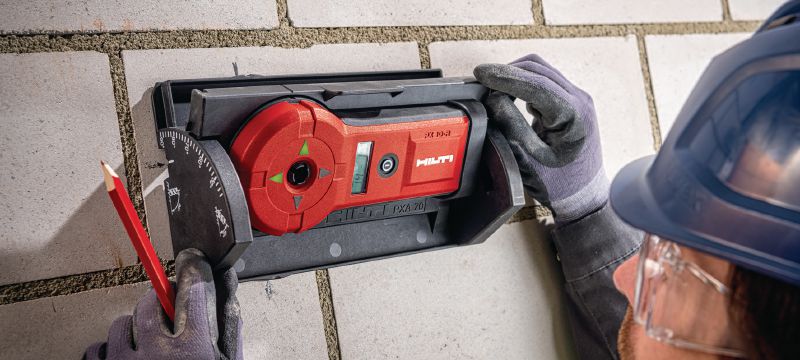

  • Unique slope adapter shows start or exit point of drilling at any drilling angle

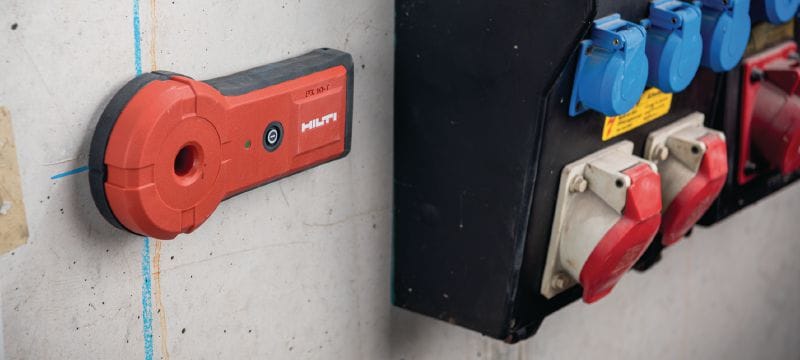

  • Position point can be transposed through floors, ceiling and walls – allowing any drilling work to be carried out quickly and efficiently
  • User-friendly direction indicators for easy operation
  • Measures wall thickness automatically – saving time by skipping trial-and-error pilot drilling

Applications

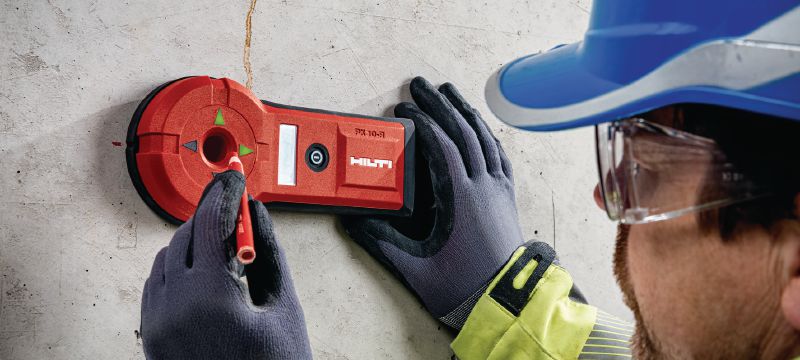

  • Transferring the starting point for drilling through-holes to the other side
  • Wall and ceiling thickness measurement for easy selection of the proper drill or core bit
  • Determine drill bit exit position and transfer drilling positions when drilling through walls and ceilings in concrete and masonry
