PS 85 Wall scanner

Configurator
Technical Data
Documents
Features & Applications
Related Products
MS PS 85 Wall Scanner - hit prevention with radar technology
MS PS 85 Wall Scanner - hit prevention with radar technology
MS PS 85 Wall Scanner - hit prevention with radar technology

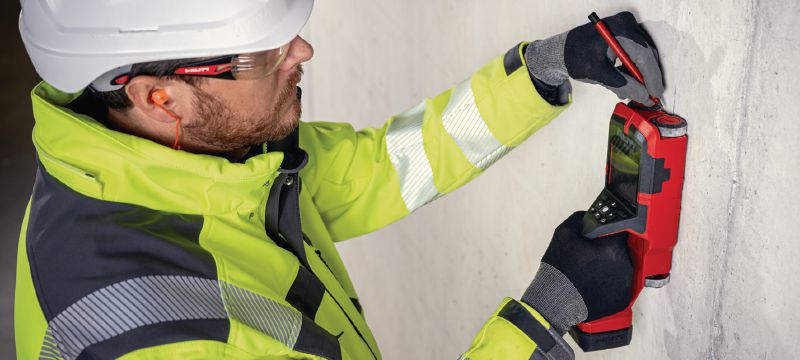

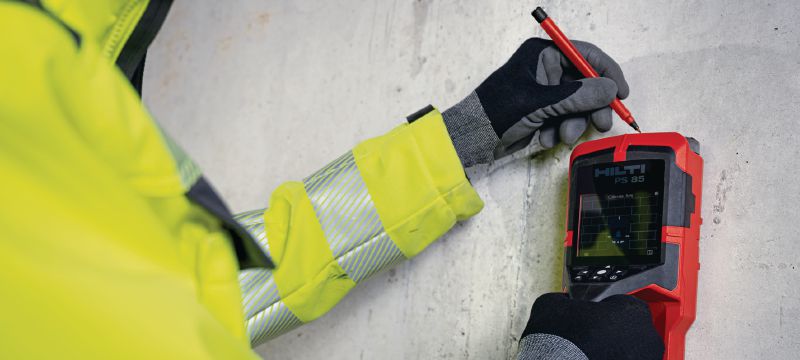

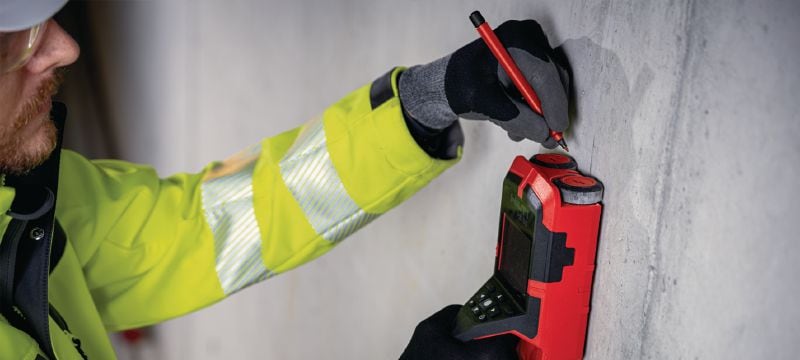

PS 85 Wall Scanner - hit prevention with radar technology concrete wall application.
PS 85 Wall Scanner - hit prevention with radar technology concrete wall application.
PS 85 Wall Scanner - hit prevention with radar technology concrete wall application, r5548505

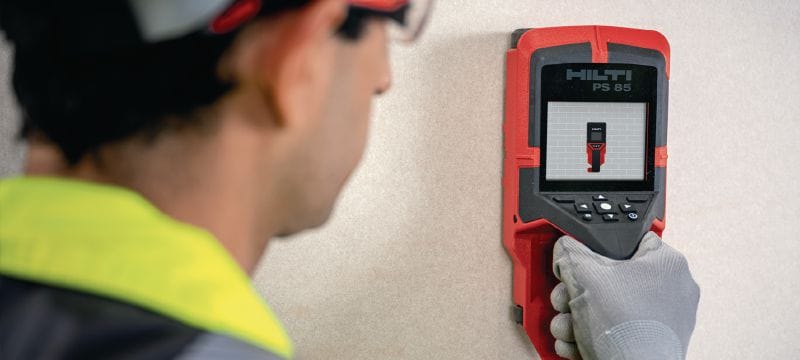

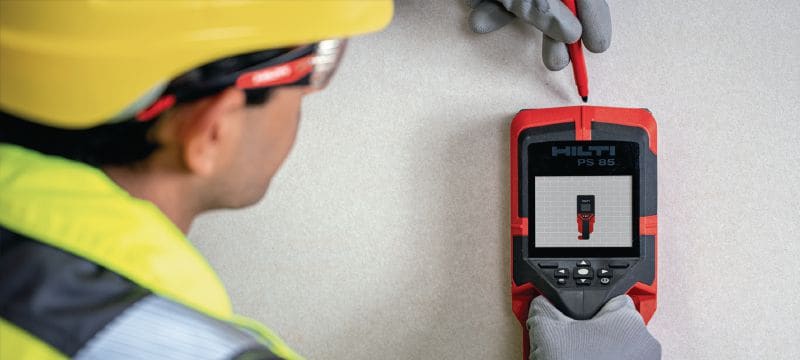

PS 85 Wall Scanner - hit prevention with radar technology on drywall application.
PS 85 Wall Scanner - hit prevention with radar technology on drywall application.

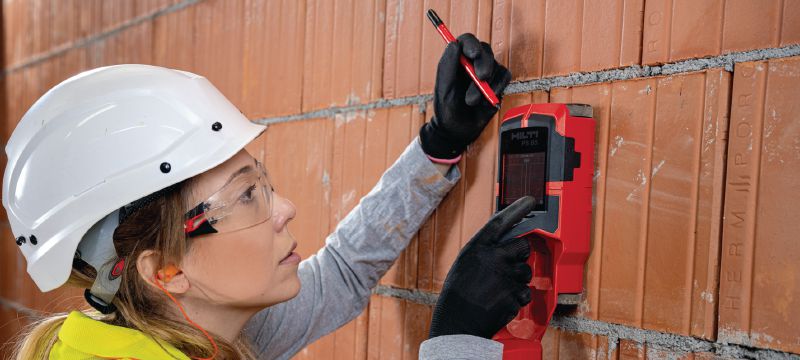

PS 85 Wall Scanner - hit prevention with radar technology on brick wall application
PS 85 Wall Scanner - hit prevention with radar technology on brick wall application

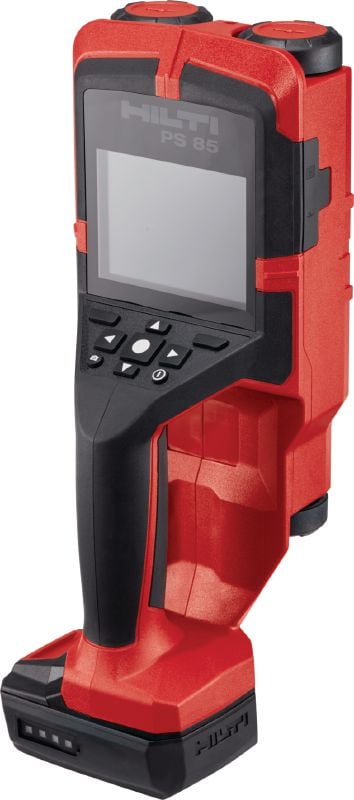

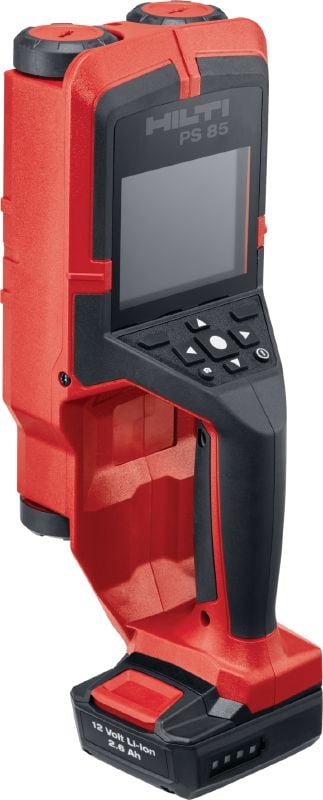

Easy-to-use wall scanner and stud finder for hit prevention when drilling or cutting near embedded objects

  • Max. detection depth for object localization: 8 in
  • Accuracy of depth indication: 5 to 10 mm (+/-) mm
  • Localization accuracy: 5to 10 mm (+/-) mm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $1,569.00

Technical Data

Max. detection depth for object localization
8 in 1
Accuracy of depth indication
5 to 10 mm (+/-) mm 2
Localization accuracy
5to 10 mm (+/-) mm 3
Minimum distance between two neighbouring objects
1.57 in
Data memory (scanner)
Approx. 200 scans (SD) approx. 10 scans (internal flash memory)
Maximum operating time
8 h
Working temperature range
14 - 122 °F
Dimensions (LxWxH)
10.4 x 4.5 x 3.9 mm
Weight with batteries
1.8 lb
  1. Performance and accuracy can be significantly affected by site conditions. See operating instructions.
  2. Performance and accuracy can be significantly affected by site conditions. See operating instructions.
  3. Performance and accuracy can be significantly affected by site conditions. See operating instructions.

Documents

Operating Instruction
Material safety datasheet
pdf Operating Instruction PS 85 (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 9 MB ]
pdf Operating Instruction PS 85 Software Update, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 55.5 KB ]
pdf Operating Instruction C4 12-50 POS3, English, Spanish, French, Portuguese [ 1.1 MB ]

Features & Applications

Features

  • Versatile and user-friendly wall scanner to help you avoid damage caused by drilling in the wrong place
  • Easier to use – large display, efficient menus and the option to export scan data via SD card
  • Upgraded ergonomics – light with large handle to keep the tool firmly in your grip
  • Built to last – shock- and dust- resistant to better withstand construction site conditions
  • Hilti battery platform – power this wall scanner using the same Li-ion batteries (2.6 and 4.0 Ah) as all your other Hilti 12V cordless tools

Applications

  • Locating embedded objects for hit prevention when drilling, coring, cutting or slitting (up to 85 mm depth, depending on material) on the wall
  • Estimating the material and size of hidden objects – multiple sensors for rebar, live wires, wooden substructures, metal and plastic pipes
  • Equipped to scan through concrete (wet and dry), brick, drywall and tiles
  • Locating embedded objects for hit prevention when drilling, coring, cutting or slitting (up to 3-3/8” depth, depending on material) on the wall

For approval or certificate information, please see individual items.
