CP 617 Firestop Putty Pad

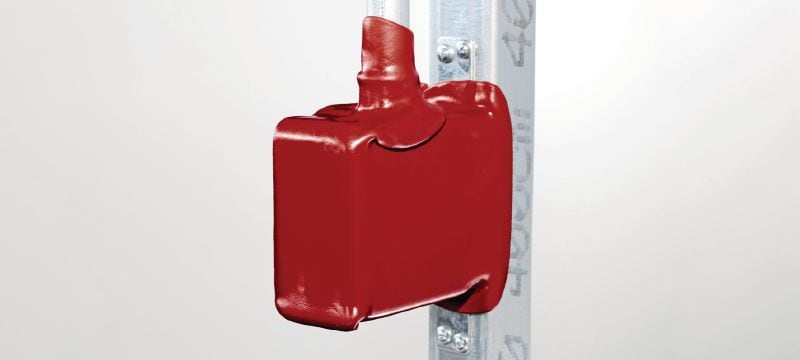

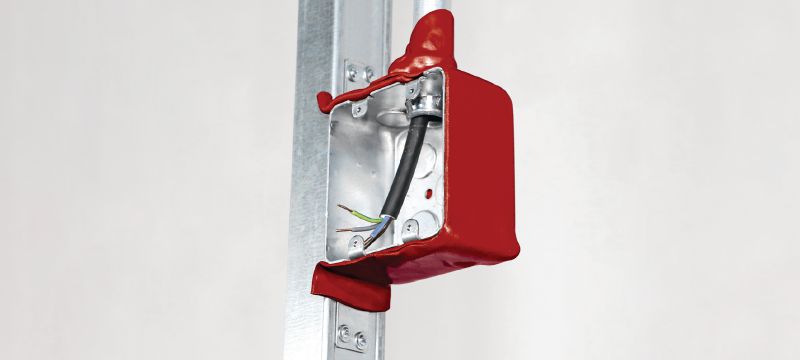

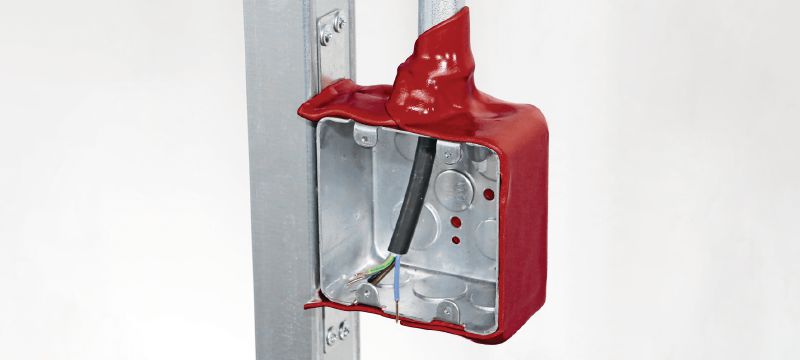

Moldable firestop putty to help protect electrical outlet boxes, junction boxes and metallic washer/dryer boxes
- Approx. Density: 1.6 g/cm³
- Color: Red
- Surface burning characteristics UL 723 (ASTM E84): Flame spread: 15<BR>Smoke development: 10
ultimate
Customers also searched for outlet, pad, electric, puddy or putty.
Choose options
Dimensions (LxWxH)
- 6 x 7 x 1/8 in
- 7 x 7 x 1/8 in
- 9 x 9 x 1/8 in
Pack size
- 1 pc
- 20 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $294.00
Technical Data
Approx. Density
1.6 g/cm³
Color
Red
Surface burning characteristics UL 723 (ASTM E84)
Flame spread: 15<BR>Smoke development: 10
LEED VOC
2 g/l
Application temperature range
32 - 104 °F
Storage and transportation temperature range
23 - 104 °F
Product Class
Ultimate
Documents
Features & Applications
Features
- Excellent adhesion to gypsum, metal and plastic
- Putty remains flexible over time
- Pad can be molded by hand without leaving residue on hands

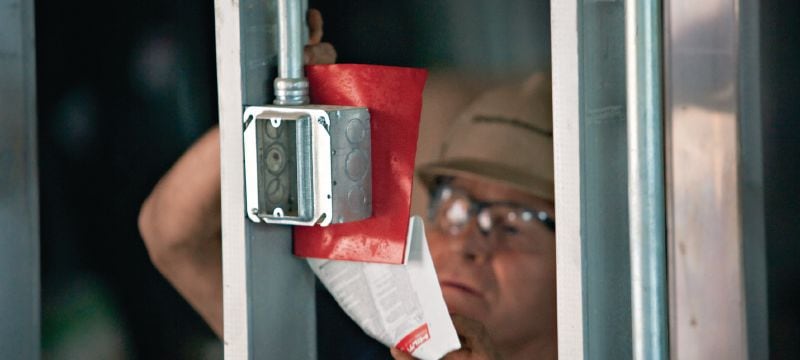

- Quick and simple to install
- Low electrical conductivity
Applications
- Commercial and residential applications
- Acoustically rated drywall - sound transmission classification 59 according to ASTM E90-97 (based on specific construction)
- General gypsum wall assemblies with wood or metal studs
For approval or certificate information, please see individual items.
