CS-SL SA Smoke and acoustic sleeve

Configurator
Technical Data
Documents
Features & Applications
Related Products
061915002 rev.tif
L080299.tif
L080301.tif

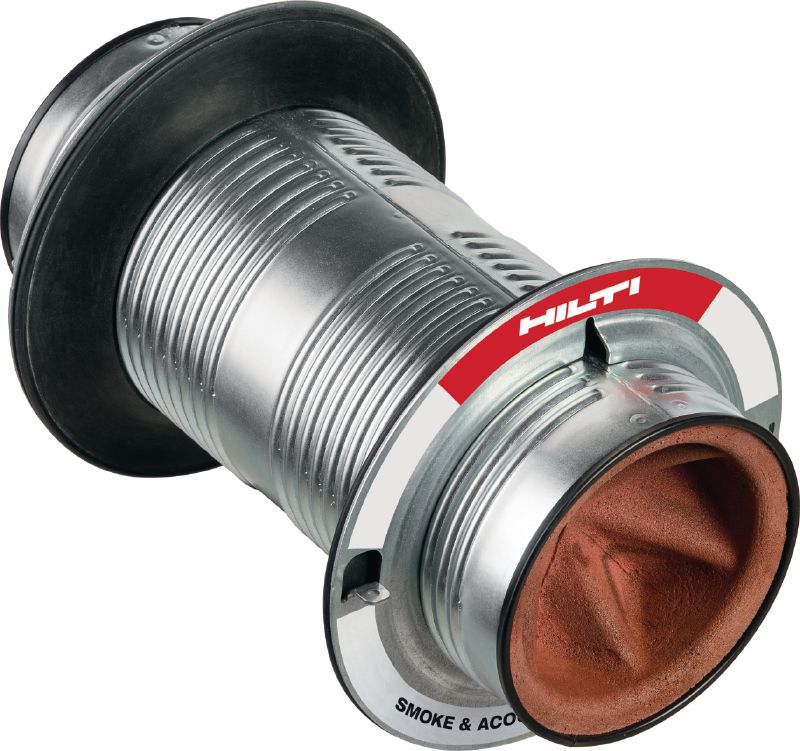

CS SL-SA Smoke an acoustic Sleeve

Non-fire-rated cable pathway for smoke and acoustic sealing

  • Chemical basis: Polyurethane
  • Shelf life: Not relevant
  • Acoustics performance: Test report available
ultimate

Customers also searched for smoke and acoustic, smoke and sound, smoke and acoustic sleeve, non-rated sleeve or non-rated pathway.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $117.00

Technical Data

Chemical basis
Polyurethane
Shelf life
Not relevant 1
Acoustics performance
Test report available
Product Class
Ultimate
Application temperature range
41 - 104 °F
Storage and transportation temperature range
23 - 104 °F
Temperature resistance range
5 - 140 °F
Base materials
Concrete, Masonry, Drywall
  1. at 77°F/25°C and 50% relative humidity; from date of manufacture

Documents

Technical information
Approval document
Test Report
Schematic
CAD/BIM Typicals
Sustainability Documentation
Operating Instruction
pdf Product Data Sheet (US_CA_ENG) for CS-SL SA Smoke and Acoustic Sleeve, English [ 356.8 KB ]
pdf Mold and Mildew Resistant Hilti Firestop Solutions, English [ 833.7 KB ]

Features & Applications

Features

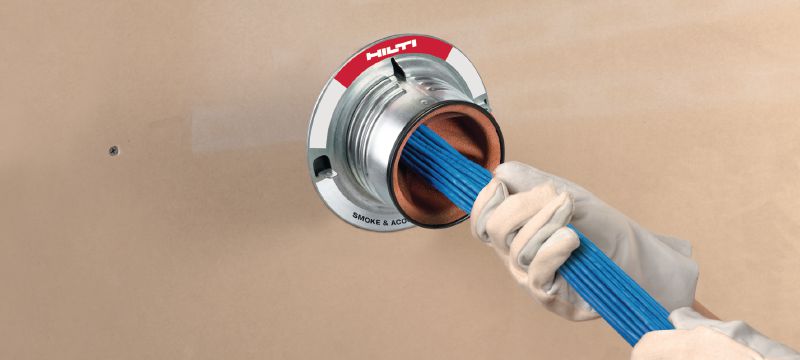

  • Faster, easier installation for non fire-rated cable penetrations requiring a sleeved opening

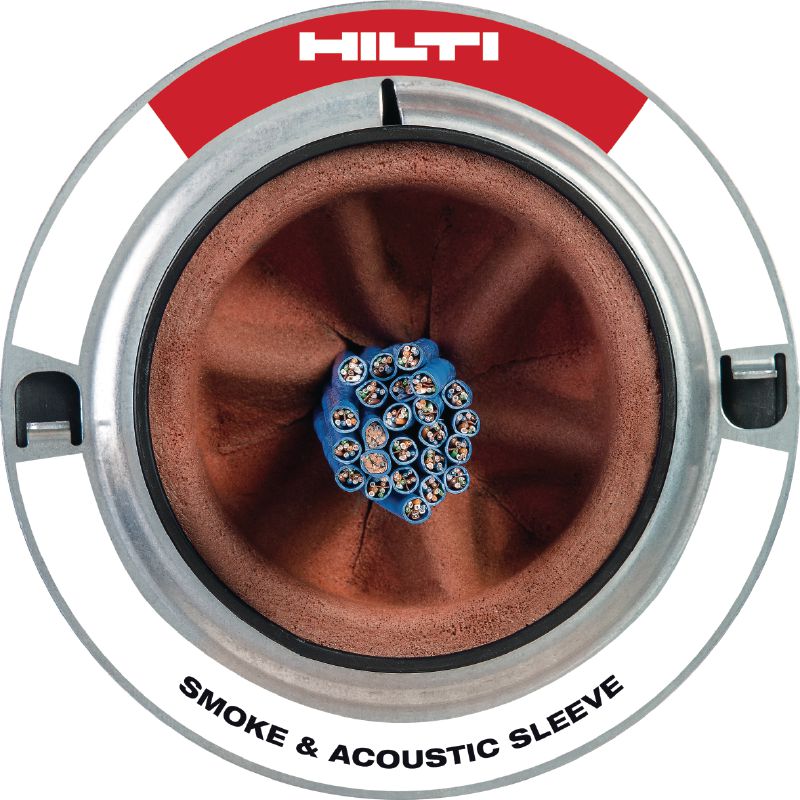

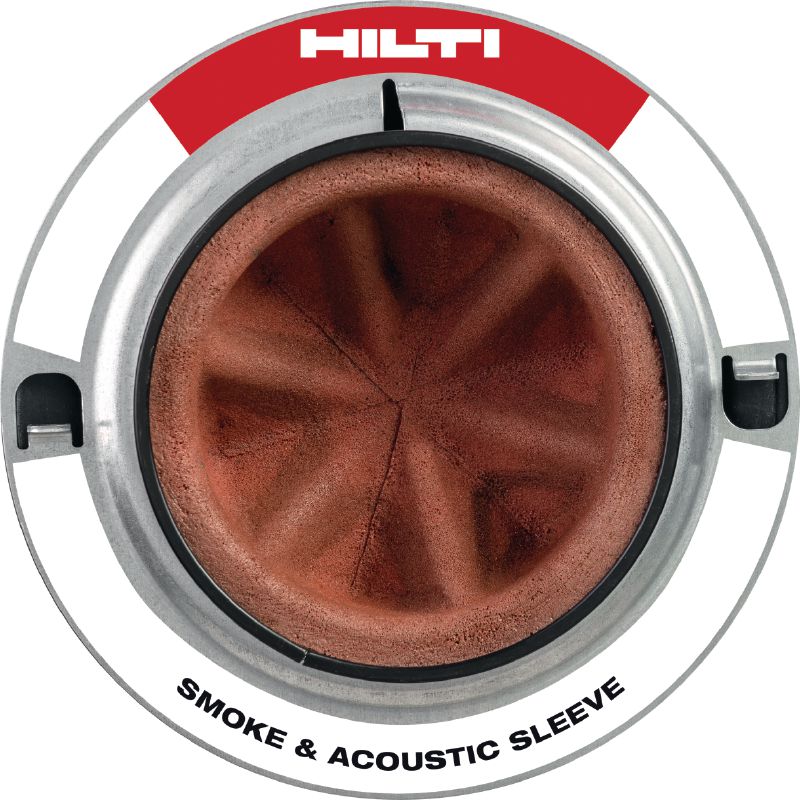

  • Re-penetrable and self-closing cable pathway

Applications

  • Sealing non-fire-rated penetrations for single cables and cable bundles
  • Ideal for small to medium-sized openings in walls, ceilings and floors
  • Electrical, low-voltage / mid-voltage installations and telecom

For approval or certificate information, please see individual items.
