new

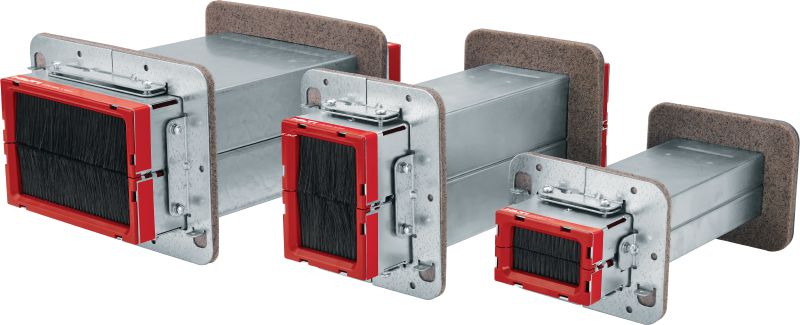

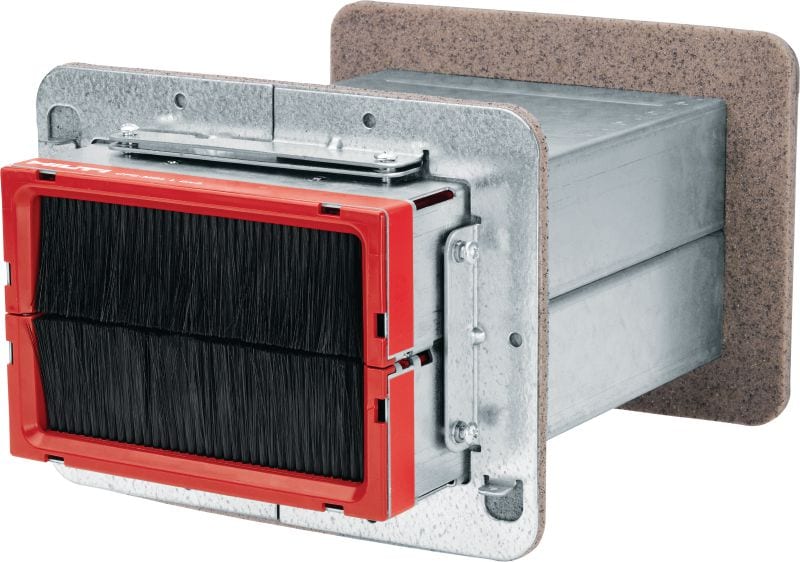

CFS-MSL Modular Fire Sleeve
Modular fire-rated cable pathway for optimal flexibility, cable capacity needs and retrofit ability
- Product Class: Ultimate
- Application temperature range: 23 - 122 °F
- Storage and transportation temperature range: 23 - 122 °F
ultimate
Choose options
Device Size
- L
- M
- S
Configuration
- Single Sleeve
- Sleeve with frame
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $196.00
Technical Data
Product Class
Ultimate
Application temperature range
23 - 122 °F
Storage and transportation temperature range
23 - 122 °F
Temperature resistance range
-7 - 167 °F
Documents
Features & Applications
Features
- Highest cable capacity – our largest pre-formed, fire-rated cable pathway for low-voltage installations
- Always retrofittable thanks to symmetrical half-shell design – no destructive steps involved
- Can be easily ganged in any combination of modular sleeve sizes
- Suitable for sustainable construction – Hilti fire sleeves use mechanical assembly techniques
Applications
- Firestopping low-voltage cable penetrations for single and cable bundles
- Small- to medium-sized rectangular openings in walls, ceilings and floors
- Ideal for frequent cable moves and additions
- For use in concrete, masonry and drywall
For approval or certificate information, please see individual items.
Related Products
Complimentary frame for fastening one modular fire sleeve to walls
Surface-mounted gangplates for installing modular fire sleeves after drywall
Easily adjustable gangplate for varying capacity requirements in future cable additions
Stud-mounted gangplates for installing modular fire sleeves before drywall
