CFS-CC Firestop cable collar

Firestop Cable Collar CFS-CC 4”
Firestop Cable Collar CFS-CC 4”
L064972.tiff

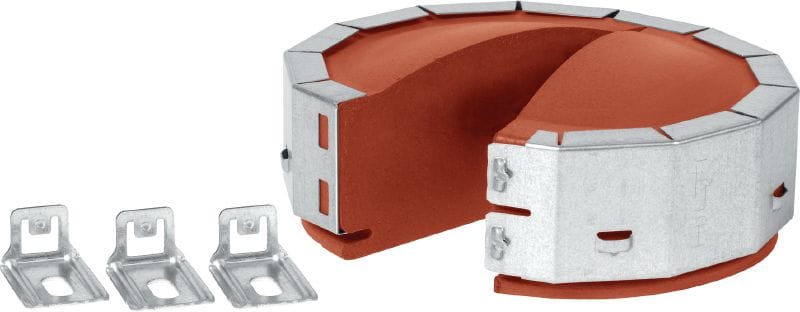

CFS-CC cable collar
L064973.tiff

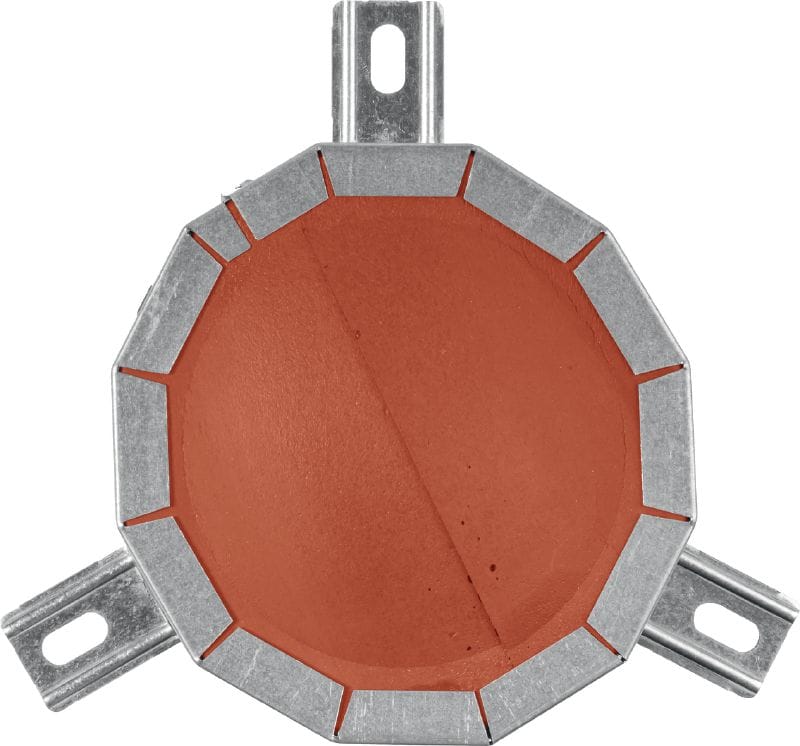

CFS-CC cable collar

Solution for renovation of sealed cable penetrations with 100% fill

  • LEED VOC: 5.4 g/l
  • Diameter: 5-29/32 in
  • Storage and transportation temperature range: 23 - 104 °F
ultimate

Customers also searched for wall device, firestop collar, plug, muffin or sleeve.

Choose options

Pack size
  • 1 pc
  • 2 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $275.00

Technical Data

LEED VOC
5.4 g/l
Diameter
5-29/32 in
Storage and transportation temperature range
23 - 104 °F
Application temperature range
40 - 104 °F
Temperature resistance range
5 - 140 °F
Product Class
Ultimate

Documents

pdf Product Data Sheet (US_CA_ENG) for CFS-CC Firestop Cable Collar, English [ 607 KB ]
pdf Mold and Mildew Resistant Hilti Firestop Solutions, English [ 833.7 KB ]

Features & Applications

Features

  • Suitable for new or existing single and bundled cables in floors and walls
  • Re-penetrable to allow future increases in cable capacity
  • Suitable for openings of max. 4" or 108 mm in diameter (sleeved or un-sleeved)
  • Simple and clean – sealant-free, no backfilling material required and low VOCs
  • Problem solver – suitable for bending cables, cables close to the wall/floor and edge applications (half collar)

Applications

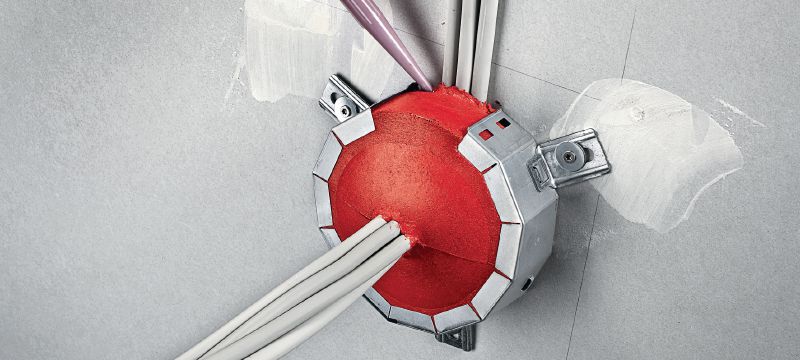

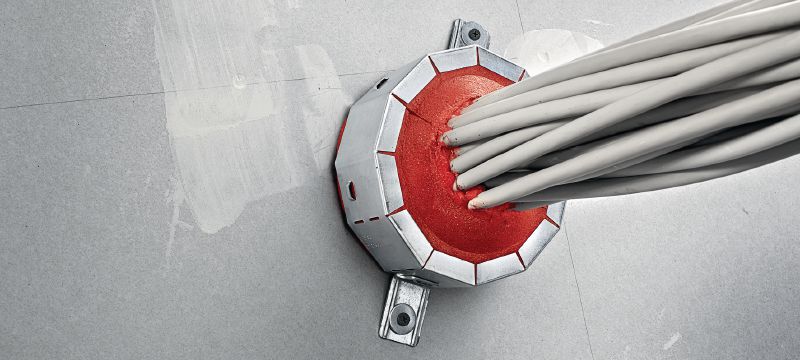

  • Single and bundled cables in floors and walls
  • New and existing cable installations
  • Membrane penetrations
  • Certain coaxial cables, conduit and conduit bundles, split-type air conditioner applications and smoke guide pipes

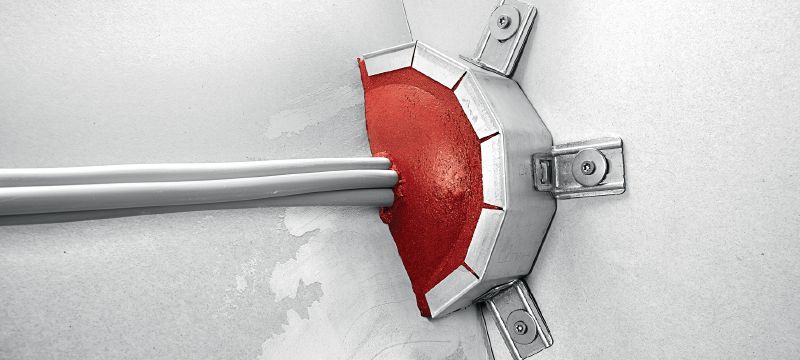

  • Bending cables and cables close to the wall/floor

For approval or certificate information, please see individual items.
