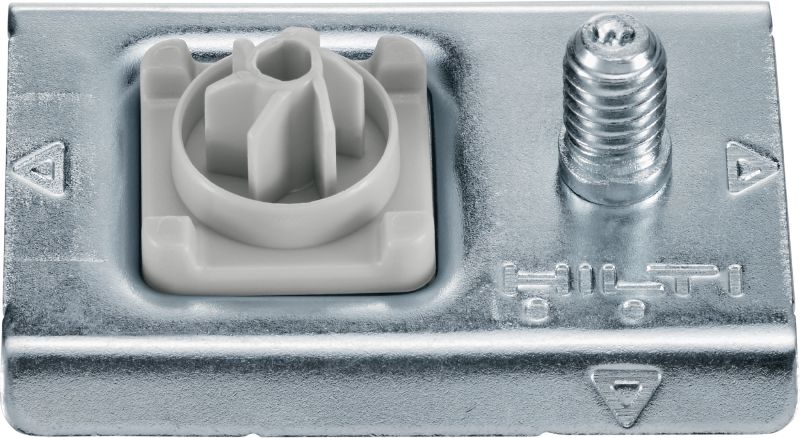

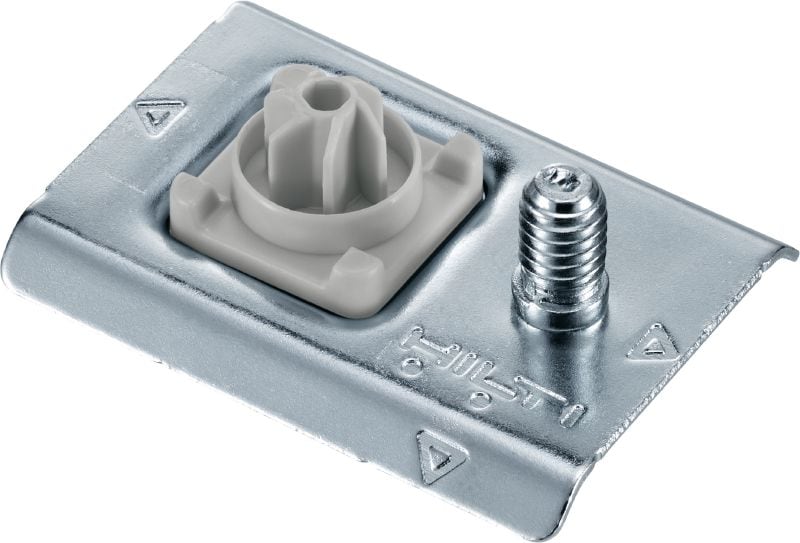

X-TH Threaded Stud plate

Threaded stud X-W6-TH #2402524

BX threaded element for direct fastening cabling
BX threaded element for direct fastening cabling
Construction worker doing a roof overhead application using the BX 4-22 with the B22-85 battery to install the BX threaded element with a mounted cable conduit clamp
Construction worker doing a roof overhead application using the BX 4-22 with the B22-85 battery to install the BX threaded element with a mounted cable conduit clamp
BX threaded element for direct fastening cabling
BX threaded element for direct fastening cabling
Construction worker doing a roof overhead application using the BX 4-22 with the B22-85 battery to install the BX threaded element with a mounted cable conduit clamp
Construction worker doing a roof overhead application using the BX 4-22 with the B22-85 battery to install the BX threaded element with a mounted cable conduit clamp
A promotional video showing the features and benefits of our newest cordless nailer, the BX 4-22. This asset has a standard Hilti outro for HOL.

Metal pipe clamp mount with pre-installed threaded stud for light-duty electrical/mechanical fastenings on ceilings and use with collated nails

  • Base materials: Concrete, Steel
  • Minimum thickness of base material (steel): 4 mm
  • Environmental Conditions: Dry indoor

Choose options

Thread size
  • W6
Thread length
  • 1/4 in
Pack size
  • 100 pc
 Product options
Quantity
Box
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

$134.00

$134.00 / 1 Box

Technical Data

Base materials
Concrete, Steel
Minimum thickness of base material (steel)
4 mm
Environmental Conditions
Dry indoor
Material
Carbon steel
Point type
N/A
For use with (tools)
BX 3, DX 351, DX 460, DX 5, DX 6, GX 120, GX 3

Documents

Features & Applications

Features

  • Quick handling - friction-fit in the nose of BX nailers for easier and faster installations
  • Time-saving solution – pre-mounted threaded stud, delivered ready to install using battery-actuated tools
  • Easier and reliable installations – designed for high stick rate and reduced concrete spalling
  • Combustion-free installation with BX tools – no gas cans or powder cartridges to store and dispose of

Applications

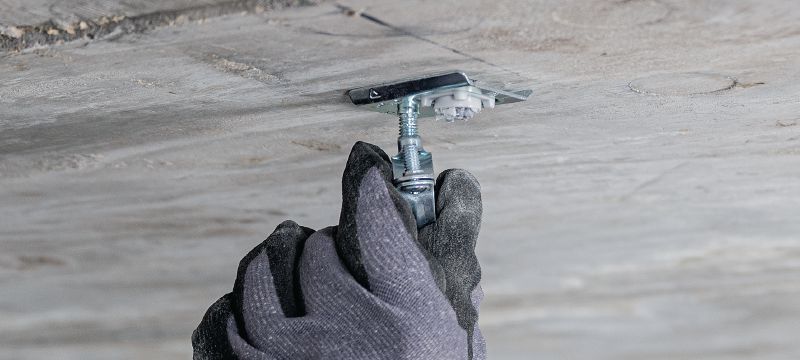

  • Light-duty fastenings on ceilings - fastening overhead pipe systems
  • Typical spacing between fastening elements ranges from 50-100 cm – load requirements must be taken into account
  • Typical spacing between fastening elements ranges from 20 -30 inches – load requirements must be taken into account
