PTH SD Zi Self-drilling framing screws

Drywall screw S-DD 12-14x1 TPCH3 Z #2098865

Configurator
Technical Data
Documents
Features & Applications
Related Products
S-DD12-14x1 TPCH3 Z
SD 4500-A18

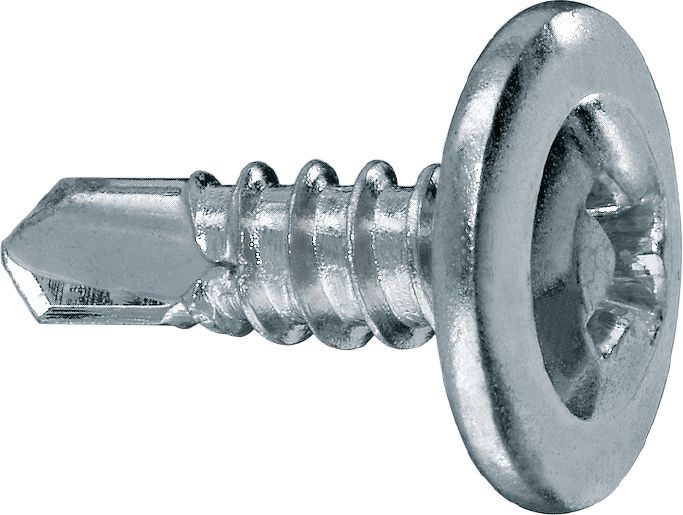

Interior metal framing screw (zinc-plated) for fastening stud or wire lath to track

  • Screw head type: Pancake head
  • Screw drive/recess type: TX 25 HF
  • Collated: No

Customers also searched for zinc, self drilling, driller or truss.

Choose options

Length
  • 1 in
Pack size
  • 5000 pc
 Product options
Quantity
Box
Total Pieces
5000
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$579.00
$579.00 / 1 Box

Technical Data

Screw head type
Pancake head
Screw drive/recess type
TX 25 HF
Collated
No
Length
1 in
Drilling capacity - min (ga)
20 ga
Environmental Conditions
Dry indoor

Documents

Technical information
Documentation
Sustainability Documentation
Operating Instruction
pdf Product Technical Guide Excerpt for Self-Drilling Screw Fastener Selection and Design, English [ 1 MB ]
pdf Product Technical Guide Excerpt for Self-Drilling Screws, English [ 503.4 KB ]

Features & Applications

Features

  • The screws can be driven quickly thanks to their optimized drill point geometry
  • Hilti has full control of the manufacturing process – delivering reliable, consistent quality
  • Precisely matched to Hilti drivers and bits – helping to achieve high-quality fastenings every time
  • All Hilti drill-point screws meet or exceed ASTM C 954 performance requirements

Applications

  • Fastening wire lath to metal studs – maximum combined thickness 0.112 inch
  • Fastening track to studs – maximum combined thickness 0.112 inch
