X-ENP MXR Metal deck nails

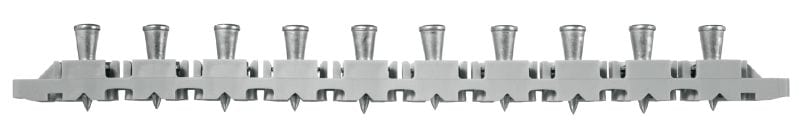

X-ENP MXR strip of 10 nails for fastening of profile metal sheets on steel with DX 860-ENP adapted
Form deck installation

Collated nail for fastening metal decks to steel structures using the DX 9-ENP powder-actuated tool

  • Base materials: Steel
  • Minimum thickness of base material (steel): 1/4 in
  • Corrosion protection: Galvanized zinc coated <20 µm
ultimate

Customers also searched for decking nail, decking fastener, metal roof deck nail or powder actuated.

Choose options

Fastener shank length
  • 15/16 in
Pack size
  • 1 pc
 Product options
Quantity
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
Price loading error occured

Please contact us

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
1/4 in
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
0.18 in
Washer size
19/32 in
Point type
Ballistic point
Approvals
ABS, ETA, FM, IAPMO, ICC-ES, ITB, LR, MLIT, SDI, UL
For use with (tools)
DX 9
Product Class
Ultimate

Documents

pdf FM 3029102 for steel deck and sidelap fasteners as per FM standard 4454, English [ 559.3 KB ]
pdf UL R13203 for roof deck fasteners, English [ 64.8 KB ]
pdf ABS Type Approval 26-0643527-PDA for carbon steel powder-actuated fasteners, English [ 103.8 KB ]
pdf FM 3054498 for Hilti steel deck fasteners, English [ 168.7 KB ]
pdf SDI DDM03 Appendix VI with X-ENP-19 L15, English [ 363 KB ]

Features & Applications

Features

  • Significantly faster and safer fastening system compared to welding
  • Fully knurled tip provides high strength capacity, shear and tension
  • Proven system with several worldwide approvals for siding and decking
  • No predrilling required for any approved steel base material regardless of profile thickness and grade
  • Significantly faster fastening system compared to single screws, particularly in thicker base materials

Applications

  • Fastening composite metal decks to steel structures for composite floor decking
  • Fastening metal roof decks to steel structures for roofing

For approval or certificate information, please see individual items.
