X-P P8 Universal nails

Configurator
Technical Data
Documents
Features & Applications
Related Products

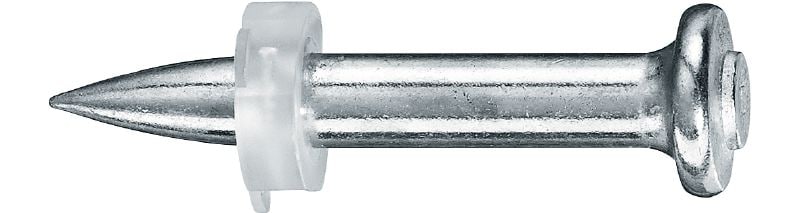

Single nail for concrete base material for powder-actuated tools
DX 2
L070702.tiff
DX 2
Powder actuated tool DX 5 F8, Building & Construction, water membrane, File name: L090220_cropped.tif, r66753

Single nail for fastening to concrete and steel using powder-actuated nailers

  • Base materials: Concrete (soft), Concrete (tough), Masonry (solid limestone brick)
  • Minimum thickness of base material (concrete): 80 mm
  • Corrosion protection: Galvanized zinc coated <20 µm
ultimate

Customers also searched for DX nails, powder actuated fasteners, single nails, general purpose nail or pins.

Choose options

Fastener shank length
  • 3/4 in
  • 7/8 in
  • 1 in
Pack size
  • 1 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $118.00

Technical Data

Base materials
Concrete (soft), Concrete (tough), Masonry (solid limestone brick)
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
0.16 in
Point type
Long conical tip
Approvals
ICC-ES
For use with (tools)
DX 2, DX 351
Product Class
Ultimate

Documents

Technical information
Approval document
Operating Instruction
Material safety datasheet
pdf Powder Actuated Nails Update – X-P Nail Phase Out and Expanded X-U Nail Sizes, English [ 206.9 KB ]
pdf Product Technical Guide Excerpt for X-P Premium Concrete Fasteners and X-U Universal Knurled Shank Fasteners, English [ 1.2 MB ]
pdf Product Technical Guide Excerpt for General Application Fasteners, English [ 663.7 KB ]

Features & Applications

Features

  • Designed for fastening on tough concrete (tested and approved for 8000 psi concrete, up to 25mm | 1" embedment)
  • Long conical nail tip designed for best drivability in tough concrete
  • Highest hardness (59 HRC) for best penetration in tough concrete
  • Provides effective embedment depths of 20mm, 25mm, 31mm, and 38mm (3/4", 1", 1 1/4" and 1 1/2") when used with tracks up to 14 ga thick
  • Highest load performance on tough concrete

Applications

  • Fastening to soft or tough concrete
  • Fastening drywall track to concrete
  • Fastening wall ties
  • Fastening wood to concrete
  • Setting up formwork and safety barriers

For approval or certificate information, please see individual items.
