X-U P8S Universal nails (with washer)

Configurator
Technical Data
Documents
Features & Applications
Related Products
13919.tif

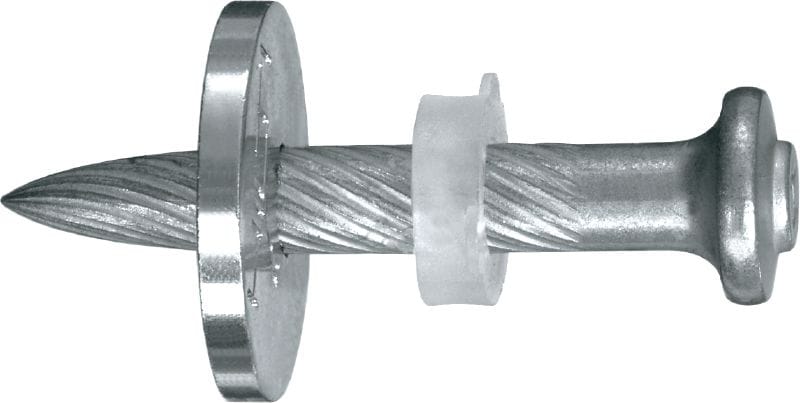

Single nail for fastening to concrete and steel using powder-actuated nailers

  • Base materials: Concrete (soft), Concrete (tough), Steel
  • Minimum thickness of base material (concrete): 80 mm
  • Corrosion protection: Galvanized zinc coated <20 µm
premium

Customers also searched for single nail for concrete, concrete nail with washer, concrete fastener with washer, powder-actuated fastener or single fastener with washer.

Choose options

Fastener shank length
  • 7/8 in
  • 1 in
  • 1-1/16 in
  • 1-1/4 in
  • 2-13/16 in
  • 2-7/8 in
Pack size
  • 1 pc
  • 100 pc
  • 200 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $129.00

Technical Data

Base materials
Concrete (soft), Concrete (tough), Steel
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
0.16 in
Point type
Ballistic point, knurled
Approvals
ABS, COLA, DIBt, IBMB, ICC-ES, LR
For use with (tools)
DX 2, DX 351, DX 5, DX 6
Product Class
Premium

Documents

Approval document
Brochure
Technical information
CAD/BIM Typicals
Documentation
Sustainability Documentation
Operating Instruction
Material safety datasheet
pdf DNV-GL Approval TAS00002UR for X-U and EDS powder-actuated fasteners, English [ 144.4 KB ]
pdf LR TypeApproval LR2410589TA for carbon steel powder-actuated fasteners, English [ 1 MB ]
pdf ABS Approval for Carbon Steel Powder-Actuated Fasteners, English [ 27.1 KB ]
pdf ICC ESR-2269 for X-U Universal and X-P Concrete Powder Driven Fasteners, English [ 827.1 KB ]

Features & Applications

Features

  • Galvanized nails for fastenings on concrete or steel
  • Higher application limits, higher ultimate tensile loads
  • With preassembled washer providing increased pull-over values
  • Knurled point for better performance on high-strength steel and hard concrete

Applications

  • Fastening on steel support frames S 355 (St 52) 6-12 mm
  • Fastening steel sheets on steel support frames or substructures S 355 (St 52) 6-8 mm
  • Fastening wood on S 355 (St 52) steel substructures with a thickness of 6 mm
  • Fastening timber or steel brackets to steel or concrete where high pull-over strength is required
  • Fastening wood to concrete (even high-strength concrete) or steel

For approval or certificate information, please see individual items.
