KH-EZ CRC Screw anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
Kwik HUS-EZ Corrosion Resistant Coating, Screw anchor, r9544560, 2221942, 2221951, 2221952, 2221943, 2221944, 2221945, 2221946, 2221947, 2221953, 2221940, 2221949, 2221941, 2221950, 2221948
KH-EZ CRC group
L069368.tiff
KH-EZ Screw anchorsTemp app, channel fixing

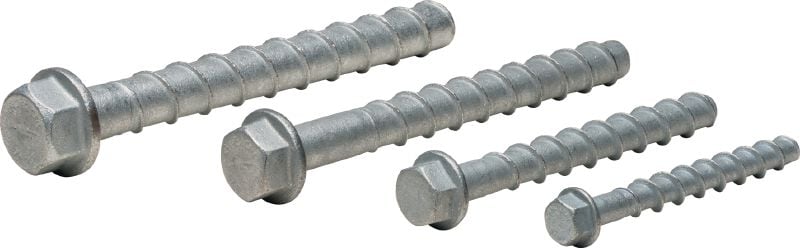

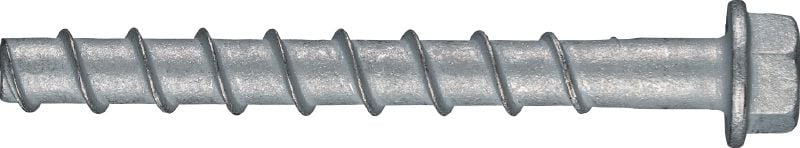

Ultimate screw anchor with corrosion-resistant coating (mechanically galvanized carbon steel, hex head)

  • Material, corrosion: Carbon Steel, mechanically galvanized
  • Head configuration: Hex head
  • Approvals / Test reports: ICC-ES report (concrete), ICC-ES report (masonry), LABC, Seismic

Choose options

Anchor size - D
  • 3/8 in
  • 1/2 in
  • 5/8 in
  • 3/4 in
Anchor length - L
  • 3 in
  • 4 in
  • 5 in
  • 5-1/2 in
  • 6 in
  • 6-1/2 in
  • 7 in
  • 8 in
  • 9 in
Pack size
  • 1 pc
  • 10 pc
  • 15 pc
  • 25 pc
  • 30 pc
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $134.50

Technical Data

Material, corrosion
Carbon Steel, mechanically galvanized
Head configuration
Hex head
Approvals / Test reports
ICC-ES report (concrete), ICC-ES report (masonry), LABC, Seismic
Base materials
Concrete (cracked), Concrete (lightweight), Concrete (uncracked), Masonry (grout-filled CMU)
Type of fixing
Through-fastening
PROFIS Software
Yes
Environmental conditions
Indoor, damp conditions, Outdoor
IBC compliance
IBC 2018
Installation direction
All
Material composition
Steel, mechanically galvanized (min. 55 µm)

Documents

Approval document
Test Report
Technical information
Documentation
Operating Instruction
pdf ICC-ES ESR-3027 for Kwik HUS-EZ Screw Anchors in Concrete, English [ 1.5 MB ]
pdf ICC-ES ESR-3027 Kwik HUS-EZ, Spanish [ 2.3 MB ]
pdf ICC-ES ESR-3056 Spanish, Spanish [ 2.2 MB ]
pdf ICC ESR-3056 for Kwik HUS-EZ Screw Anchors in Masonry, English [ 1.1 MB ]
pdf ICC ESR-3027 for Kwik HUS-EZ Screw Anchors in Concrete, English [ 1.5 MB ]

Features & Applications

Features

  • Time and labor-saving fastening solution especially suited for seismic, cracked concrete and grout filled CMU applications requiring an ICC approval
  • Anchor coating meets ASTM B695 Class 55 for added corrosion resistance
  • Quicker and easier to install than wedge anchors – no cleaning, no high-accuracy torque wrench and no hammering required
  • Optimized thread design for exceptional setting performance, superior load values and reduced edge distances and spacing
  • Fully removable anchoring solution for use with standard ANSI-tolerance drill bits – no special tolerance drill bits required for these screw anchors

Applications

  • Structural steel applications where additional corrosion protection is needed

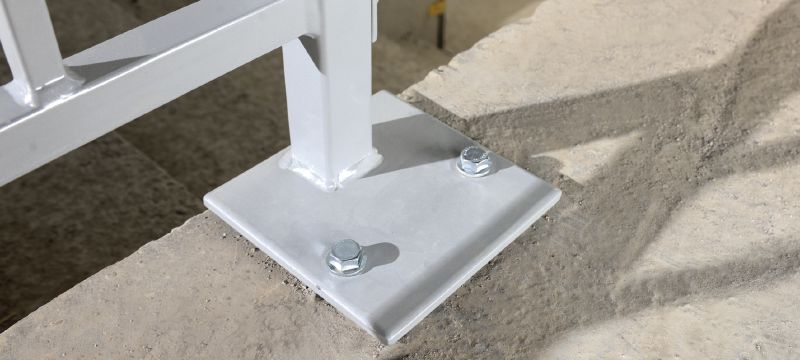

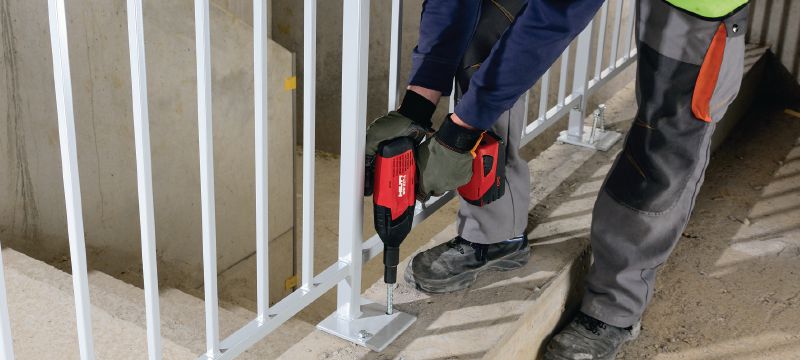

  • Attaching railings, handrails, safety barriers, guard rails and signs
  • Installing storage and rack systems
  • Secondary steel attachment
  • Pressure-treated wood (sill plates)

For approval or certificate information, please see individual items.
