Kwik Bolt 1 Wedge anchor

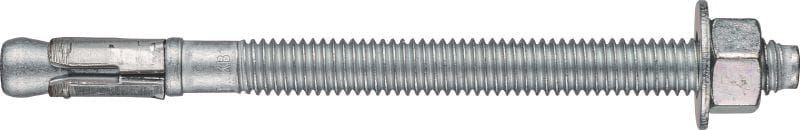

KB 1 0.375x5 side view

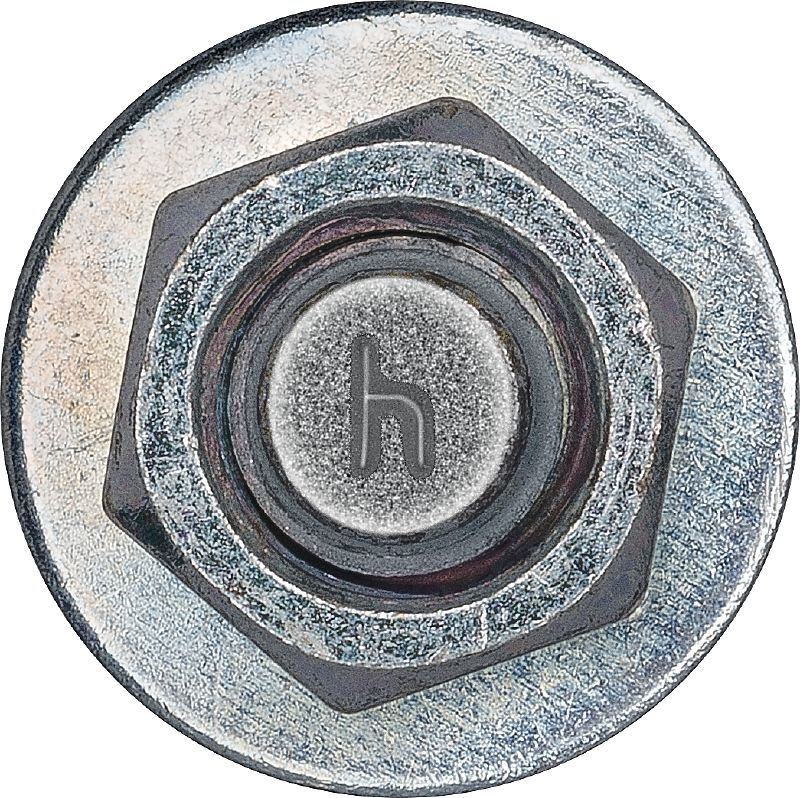

KB 1 0.375x5 top view
Anchor line-drawing KB1. To be shown with separate explanation Length - L, Size of anchor/bolt diameter - D.
KB 1 0.375x5 side view
KB 1 0.375x5 top view
Anchor line-drawing KB1. To be shown with separate explanation Length - L, Size of anchor/bolt diameter - D.

High-performance wedge anchor for cracked concrete and seismic (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Approvals / Test reports: FM (Factory Mutual), IAPMO, LABC, UL (Underwriter Laboratories)

Customers also searched for wedge anchors, concrete wedge anchors, KB1, kwik bolt or KB-1.

Choose options

Anchor size - D
  • 3/8 in
  • 1/2 in
  • 5/8 in
  • 3/4 in
Anchor length - L
  • 2-1/2 in
  • 3 in
  • 3-3/4 in
  • 4-1/4 in
  • 4-1/2 in
  • 4-3/4 in
  • 5 in
  • 5-1/2 in
  • 6 in
  • 7 in
  • 8 in
  • 8-1/2 in
  • 10 in
  • 12 in
Pack size
  • 1 pc
  • 10 pc
  • 15 pc
  • 20 pc
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

From $47.00

Technical Data

Anchor line-drawing KB1. To be shown with separate explanation Length - L, Size of anchor/bolt diameter - D.
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / Test reports
FM (Factory Mutual), IAPMO, LABC, UL (Underwriter Laboratories)
Installation tools
TE 6-22 Cordless rotary hammer, SIW 4AT-22 ½” Cordless impact wrench
PROFIS Software
Yes
Environmental conditions
Dry indoor

Documents

Features & Applications

Features

  • Especially suitable for seismic relevant applications as well as cracked concrete (tension zone)
  • Seismic tested in accordance with ACI 355.2 and ICC-ES AC 193
  • Per IAPMO, compliant for use with Hilti Adaptive Torque (AT) Module for Mechanical Safeset
  • Product and length identification markings facilitate quality control and inspection

Applications

  • Fastening structural steel, facades, electrical and mechanical equipment, hand rails and racks

For approval or certificate information, please see individual items.
