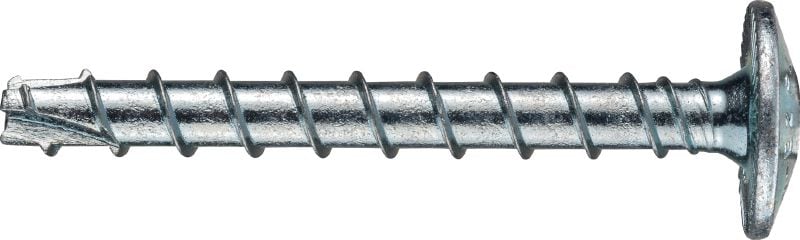

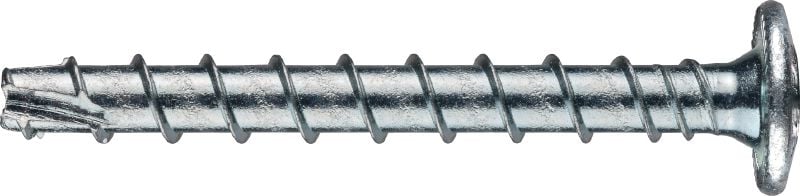

KH-EZ P Screw anchor

KH-EZ P 1/4" X 1 7/8"KH-EZ P 1/4" X 2 5/8"Screw anchor in diameter 1/4" with a pan head
KH-EZ PM
KH-EZ PL
Screw anchor in diameter 1/4" with a pan headKH-EZ P 1/4" X 1 7/8"KH-EZ P 1/4" X 2 5/8"

Ultimate screw anchor for quicker and more economical fastenings to concrete (carbon steel, pan head)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Pan head
  • Approvals / Test reports: ICC-ES report (concrete), ICC-ES report (masonry), Seismic

Customers also searched for blue tip.

Choose options

Anchor size - D
  • 1/4 in
Anchor length - L
  • 1-7/8 in
  • 2-5/8 in
Head outer diameter (final output)
  • 0.52 in
  • 0.69 in
  • 0.86 in
Pack size
  • 1 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Pan head
Approvals / Test reports
ICC-ES report (concrete), ICC-ES report (masonry), Seismic
Base materials
Concrete (cracked), Concrete (lightweight), Concrete (lightweight over metal deck), Concrete (uncracked), Masonry (grout-filled CMU)
Type of fixing
Through-fastening
Reusable (and removable)
Not Possible
Cleaning procedures
Manual Cleaning
PROFIS Software
Yes
Environmental conditions
Dry indoor
IBC compliance
IBC 2018
Installation direction
All
Material composition
Steel, zinc-plated (min. 8 µm)

Documents

pdf Product Technical Supplement for Kwik HUS-EZ Screw Anchor - Masonry, English [ 1.3 MB ]
pdf Supplement for Hilti Anchors For Attachments to Hollow Core Concrete Panels, English [ 3.3 MB ]

Features & Applications

Features

  • Low-profile and small washer-style head for easier installation through access holes
  • Quicker and easier to install than wedge anchors – no cleaning, no high-accuracy torque wrench and no hammering required
  • Easier to set, even under critical conditions – optimized screw threads and cutting edges suitable for high-strength concrete, used drill bits, rebar hits, and other challenging base materials
  • For use with standard ANSI-tolerance drill bits – no special tolerance drill bits required when installing these screw anchors
  • Fully-removable concrete screw anchor

Applications

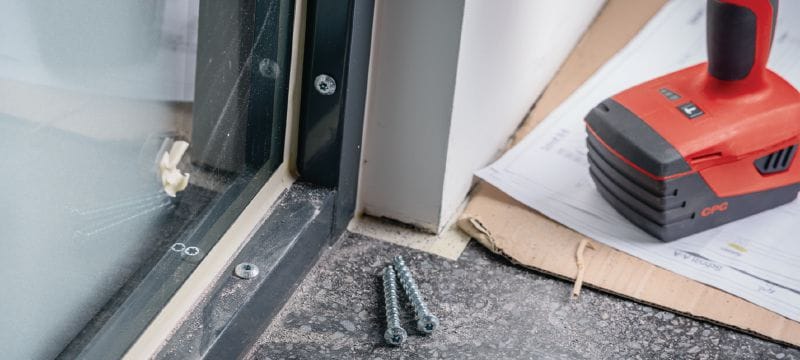

  • Glazing, window wall and store front attachments
  • Strut to concrete applications
  • Door threshold anchoring
  • Attaching handrails and glass shoes

For approval or certificate information, please see individual items.
