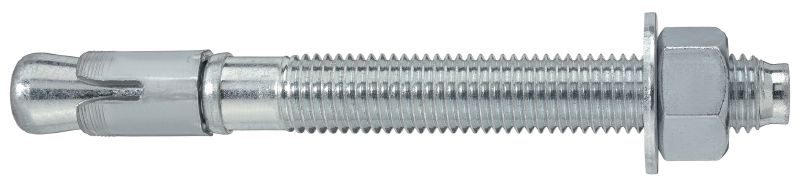

Kwik Bolt 3 Wedge anchor

Exp anchor KB3 5/8" x 10" LT #282534

Configurator
Technical Data
Documents
Features & Applications
Related Products
L041265.tif
HSA stud anchor
HSA stud anchor (Segmentanker)

High-performance wedge anchor with everyday approvals for uncracked concrete (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Approvals / Test reports: FM (Factory Mutual), ICC-ES report (concrete), ICC-ES report (masonry), LABC, Nuclear (NQA-1), UL (Underwriter Laboratories)

Customers also searched for wedge anchor, carbon steel wedge anchor, expansion anchor or KB3.

Choose options

Anchor size - D
  • 5/8 in
Anchor length - L
  • 10 in
Pack size
  • 15 pc
 Product options
Quantity
Box
Total Pieces
15
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$159.00
$159.00 / 1 Box

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / Test reports
FM (Factory Mutual), ICC-ES report (concrete), ICC-ES report (masonry), LABC, Nuclear (NQA-1), UL (Underwriter Laboratories)
PROFIS Software
Yes

Documents

Specification Text
Technical information
Approval document
Certificate
Documentation
CAD/BIM Typicals
Brochure
Operating Instruction
doc General Notes for Post-Installed Anchors (CA-EN), English [ 69.5 KB ]
doc General Notes for Post-Installed Anchors, French [ 66.5 KB ]
doc Spec Section 05 05 19 for Post-Installed Concrete Anchors, English [ 104.5 KB ]
doc Spec Section 05 05 19 for Post-Installed Concrete Anchors, French [ 101.5 KB ]
doc Spec Section 03 15 00 for Concrete Accessories, English [ 83.5 KB ]

Features & Applications

Features

  • Approved by ICC-ES for use in masonry and concrete
  • Rounded end for easy installation
  • Dog point impact section to prevent thread damage during installation
  • Testing in accordance with AC193 shows the smallest edge and spacing distances of all wedge anchors in its class
  • Also available in hot-dip galvanized, 304 SS and 316 SS to suit any environment

Applications

  • Fastening structural steel, hand rails, signs, racks, equipment and formwork bracing
