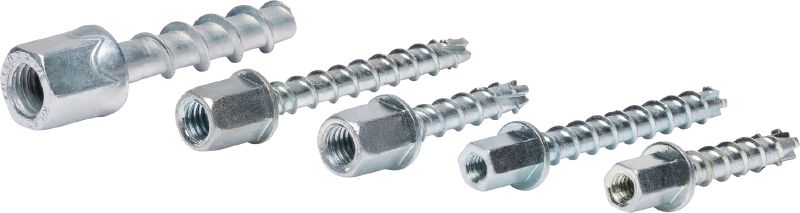

KH-EZ I Screw anchor with internally threaded head

Configurator
Technical Data
Documents
Features & Applications
Related Products
Screw Anchor#423471
KH-EZ I portfolio
HUS-I small, KH-EZ I
MM

Ultimate screw anchor for quicker and more economical fastening of threaded rod to concrete (carbon steel, internally threaded)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Internally threaded
  • Approvals / Test reports: FM (Factory Mutual), ICC-ES report (concrete), LABC, Seismic

Customers also searched for drop in.

Choose options

Anchor size - D
  • 1/4 in w/ 1/4 in cplr
  • 1/4 in w/ 3/8 in cplr
  • 3/8 in w/ 1/2 in cplr
Anchor length - L
  • 1-5/8 in
  • 2-1/8 in
  • 2-1/2 in
Pack size
  • 1 pc
  • 50 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $151.00

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Internally threaded
Approvals / Test reports
FM (Factory Mutual), ICC-ES report (concrete), LABC, Seismic
Base materials
Concrete (cracked), Concrete (lightweight), Concrete (lightweight over metal deck), Concrete (uncracked)
Type of fixing
Pre-fastening
Reusable (and removable)
Not Possible
Cleaning procedures
Manual Cleaning
PROFIS Software
Yes
Environmental conditions
Dry indoor
IBC compliance
IBC 2018
Installation direction
All
Material composition
Steel, zinc-plated (min. 8 µm)

Documents

Specification Text
Technical information
Approval document
Documentation
CAD/BIM Typicals
Operating Instruction
Instruction for use
doc General Notes for Post-Installed Anchors (CA-EN), English [ 69.5 KB ]
doc General Notes for Post-Installed Anchors, French [ 66.5 KB ]
doc Spec Section 05 05 19 for Post-Installed Concrete Anchors, English [ 104.5 KB ]
doc Spec Section 05 05 19 for Post-Installed Concrete Anchors, French [ 101.5 KB ]
doc Spec Section 03 15 00 for Concrete Accessories, English [ 83.5 KB ]

Features & Applications

Features

  • Time and labor-saving fastening solution especially suited for seismic and cracked concrete overhead applications requiring an ICC approval
  • Quicker and more convenient to install overhead than flush anchors – smaller drilling diameter and no hammering required
  • Easier to set, even under critical conditions – optimized screw threads and cutting edges suitable for high-strength concrete, used drill bits, rebar hits, and other challenging base materials
  • For use with standard ANSI-tolerance drill bits – no special tolerance drill bits required when installing these screw anchors
  • KH-EZ I 3/8" is FM approved for hanging of pipes up to 8” diameter

Applications

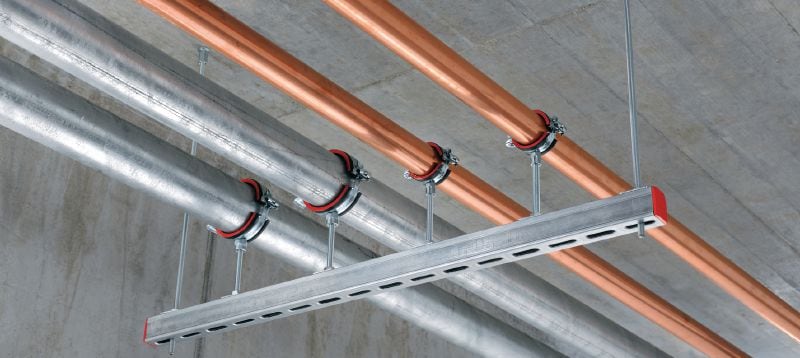

  • Various piping or ventilation duct installation applications
  • Rod hangers for single or multiple pipes
  • Suitable for repetitive installation tasks

For approval or certificate information, please see individual items.
