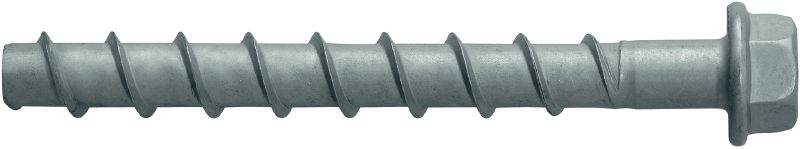

KWIK HUS Screw anchor
Screw anc KH 3/4" x 5-1/2" #434451
Premium screw anchor for permanent fastenings or reusable temporary fastenings in concrete or masonry (carbon steel, hex head)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Hex head
- Socket size: 1.13 in
Customers also searched for screw anchor or concrete screw anchor.
Choose options
Anchor size - D
- 1/4 in
- 3/8 in
- 1/2 in
- 5/8 in
- 3/4 in
Anchor length - L
- 2-1/8 in
- 2-5/8 in
- 3 in
- 3-1/2 in
- 4 in
- 4-1/2 in
- 5 in
- 5-1/2 in
- 6 in
- 6-1/2 in
- 7 in
- 9 in
Pack size
- 1 pc
- 10 pc
- 15 pc
- 25 pc
- 30 pc
- 50 pc
- 100 pc
Quantity
Box
Total Pieces
10
Discounted net
$106.00
$106.00 / 1 Box
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Hex head
Socket size
1.13 in
Drill bit diameter
3/4 in
Reusable (and removable)
Yes
PROFIS Software
Yes
Material composition
Steel, zinc-plated (min. 8 µm)
Documents
Features & Applications
Features
- Time-saving and easy to install with no need for accurate torque
- Tested and evaluated according to AC 193 for uncracked concrete and AC 106 for grout-filled CMU blocks (for sizes 3/8'' and bigger)
- Optimized thread design for best-in-class setting performance and superior load values
- For use with standard ANSI-tolerance drill bits – no special close-tolerance drill bits required
- Fully-removable screw anchoring solution
Applications

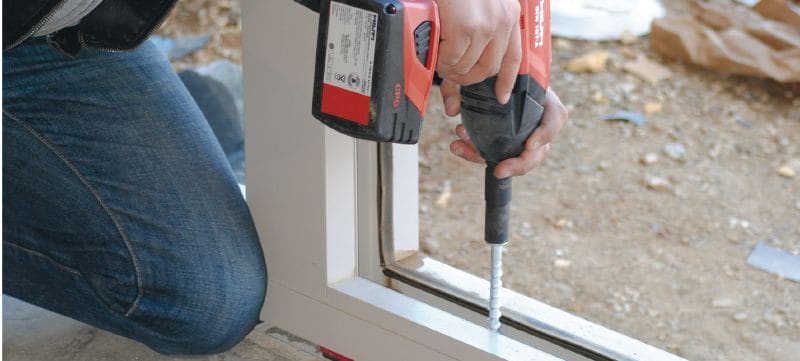

- Glazing, windows and storefronts

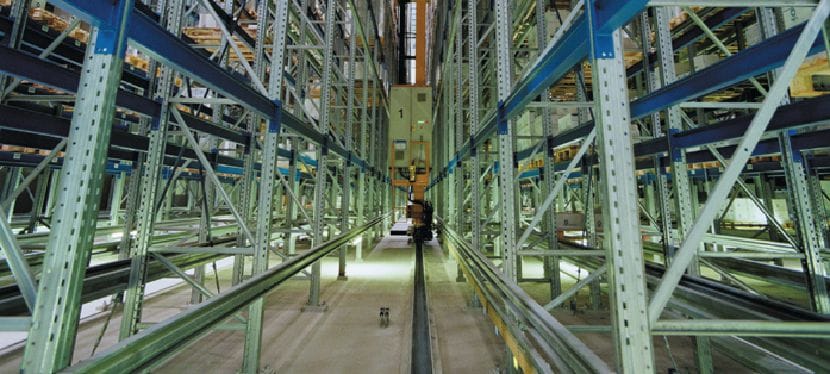

- Racking and shelving
- Attaching ledgers

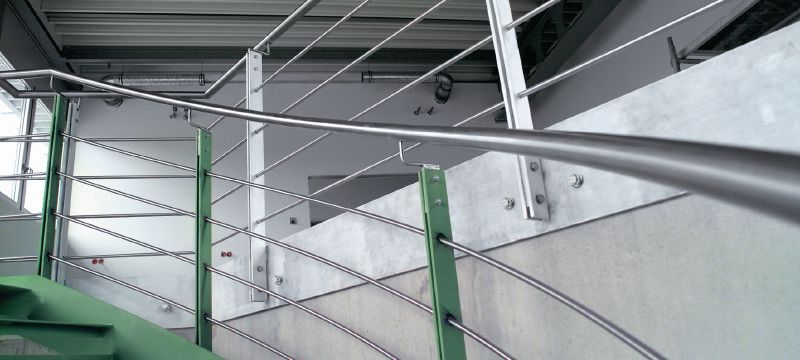

- Installing inside railings
- Attaching formwork and tilt-up braces, sill plates, perimeter walls
