HDA-PR Undercut anchor

Undercut anchor HDA-PR M16 x 190/40 #339349

Ultimate-performance pre-set undercut anchor for dynamic loads (stainless steel)

  • Material, corrosion: Stainless steel, A4
  • Head configuration: Externally threaded
  • Approvals / Test reports: ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic

Customers also searched for self-undercutting anchor or undercut anchor.

Choose options

Anchor size - D
  • M10
  • M12
  • M16
Standard embedment depth
  • 3.937 in
  • 4.921 in
  • 7.48 in
Max. fixture thickness at standard embedment depth
  • 0.79 in
  • 1.18 in
  • 1.57 in
  • 1.97 in
  • 2.36 in
Pack size
  • 4 pc
  • 8 pc
  • 12 pc
Product options
Quantity
Box
Total Pieces
4
You can not see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$2,319.00
$2,319.00 / 1 Box

Technical Data

Material, corrosion
Stainless steel, A4
Head configuration
Externally threaded
Approvals / Test reports
ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic
Max. fixture thickness at standard embedment depth
1.57 in
Seismic loading
Yes
Fatigue loading
Yes
PROFIS Software
Yes
Wrench size
24 mm

Documents

Features & Applications

Features

  • Combines the flexibility and immediate loading of a post-installed mechanical anchor with the performance of a cast-in-place headed stud
  • Close spacing and small edge distances thanks to low expansion forces
  • Self-undercutting facilitates fast and reliable installation without the need for additional tools
  • The keying effect provides a secure hold even in cracked concrete under dynamic loading
  • Manufactured under the NQA-1 nuclear quality assurance program with comprehensive approvals

Applications

  • Safety-relevant, heavy-duty fastening for dynamic loading in cracked or uncracked concrete and corrosive environments, including applications in nuclear power plants

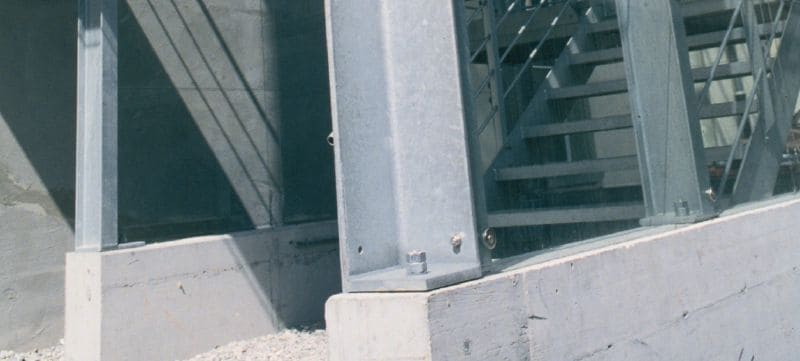

  • Anchoring supports for heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fixings, elevator tracks, bridge retrofitting etc.
