HDA-TR Undercut anchor
Undercut anchor HDA-TR M12 x 125/50 #339353
Ultimate-performance through-set undercut anchor for dynamic loads (stainless)
- Material, corrosion: Stainless steel, A4
- Head configuration: Externally threaded
- Approvals / Test reports: ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic
Customers also searched for self-undercutting anchor or undercut anchor.
Choose options
Anchor size - D
- M10
- M12
- M16
Standard embedment depth
- 3.937 in
- 4.921 in
- 7.48 in
Max. fixture thickness at standard embedment depth
- 0.79 in
- 1.18 in
- 1.57 in
- 1.97 in
- 2.36 in
Pack size
- 4 pc
- 8 pc
- 12 pc
Quantity
Box
Total Pieces
8
Discounted net
$3,039.01
$3,039.01 / 1 Box
Technical Data
Material, corrosion
Stainless steel, A4
Head configuration
Externally threaded
Approvals / Test reports
ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic
Max. fixture thickness at standard embedment depth
1.97 in
Seismic loading
Yes
Fatigue loading
Yes
PROFIS Software
Yes
Documents
Features & Applications
Features
- Combines the advantages of a post-installed mechanical anchor, i.e. flexibility and immediate loading, with the performance of a cast-in-place headed stud
- Close spacing and small edge distances thanks to low expansion forces
- Self-undercutting facilitates fast and reliable installation without the need for additional tools
- The keying effect provides a secure hold even in cracked concrete under dynamic loading
- Manufactured under an NQA-1 nuclear quality assurance program with comprehensive approvals
Applications

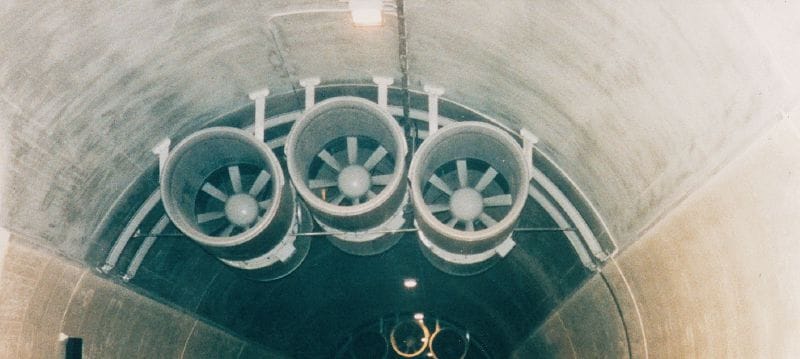

- Safety-relevant, heavy-duty fastening for dynamic loading in cracked or uncracked concrete and corrosive environments, including applications in nuclear power plants

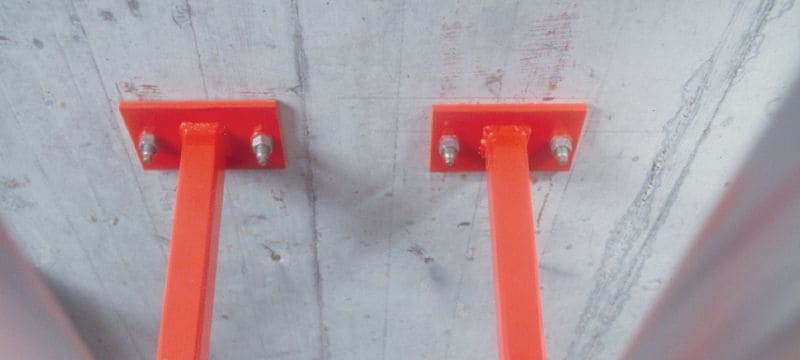

- Anchoring supports for heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fixings, elevator tracks, bridge retrofitting etc.
