HDI-TZ Drop-in anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products

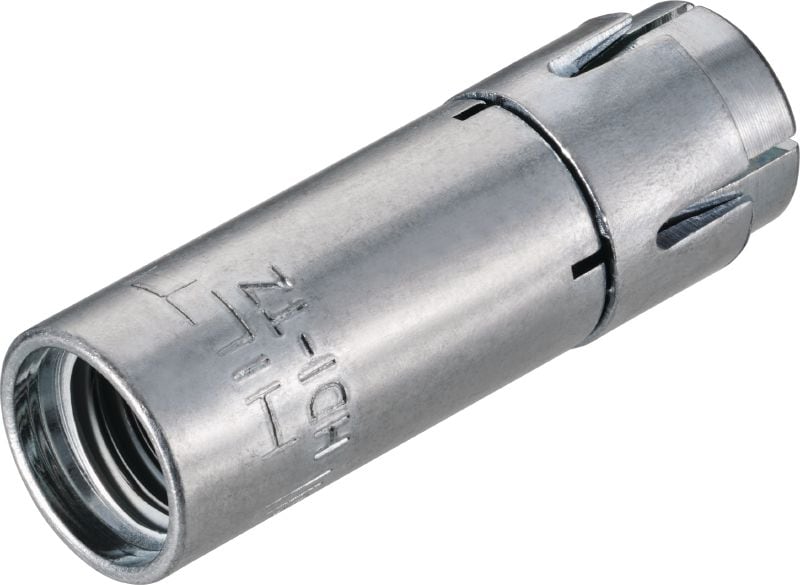

Still life picture of the flush anchor HDI-TZ

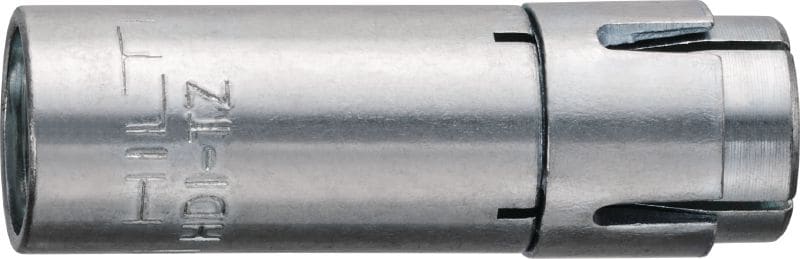

Still life picture of the flush anchor HDI-TZ

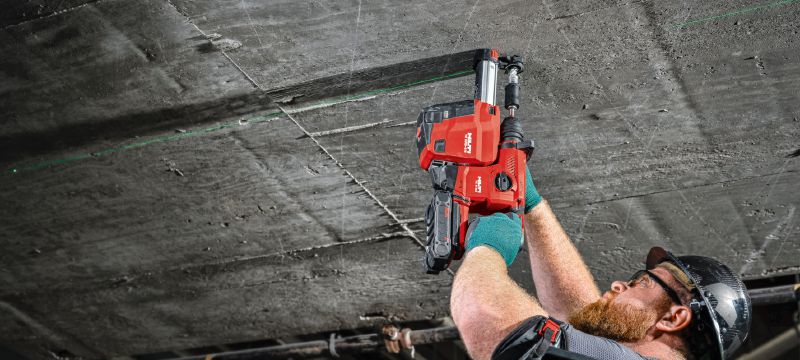

Cropped application picture of a worker using TE 6-22 with 2-in-1 HDI and EXO-S to install HDI-TZ anchors. Produced by HNA. Dallas, TX, March 8, 2024.

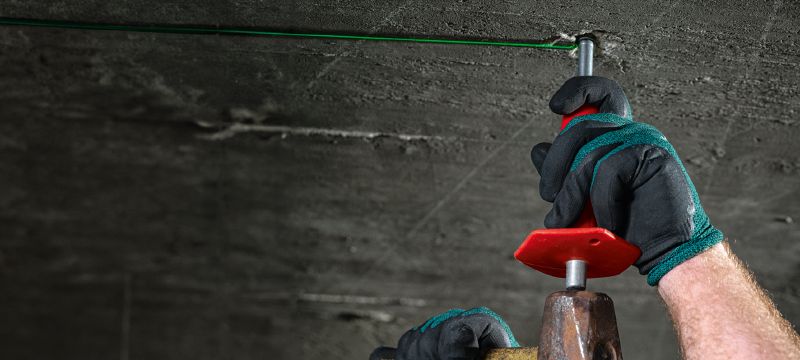

Cropped application picture of a worker using a HSD-G drop-in anchor setting tool to install HDI-TZ anchors. Produced by HNA. Dallas, TX, March 8, 2024.

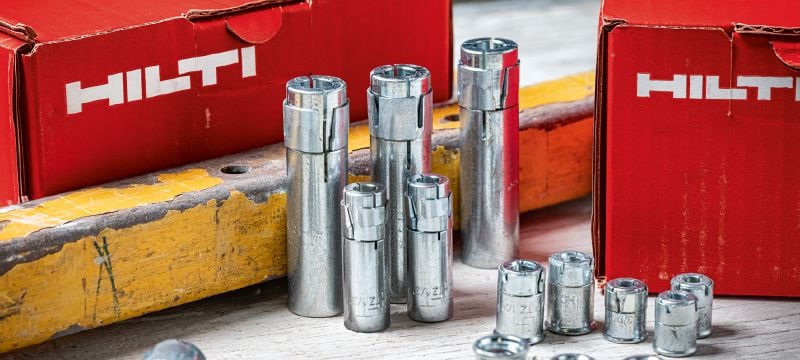

Cropped application picture of HDI-TZ anchors portfolio with various sizes. Produced by HNA. Dallas, TX, March 8, 2024.

Ultimate-performance drop-in concrete anchor for standard embedment depths in cracked/ uncracked concrete and seismic applications (carbon steel, zinc plated) 3/8” – 5/8”

  • Approvals / Test reports: FM (Factory Mutual), Seismic, UL (Underwriter Laboratories)
  • Material, corrosion: Carbon steel, zinc-plated
  • PROFIS Software: Yes

Customers also searched for multi-set, drop-in, expansion anchor or drop-in anchor.

Choose options

Anchor size - D
  • 3/8 in
  • 1/2 in
  • 5/8 in
Pack size
  • 1 pc
  • 25 pc
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $158.00

Technical Data

Approvals / Test reports
FM (Factory Mutual), Seismic, UL (Underwriter Laboratories)
Material, corrosion
Carbon steel, zinc-plated
PROFIS Software
Yes
Installation tools
TE 6-22 Cordless rotary hammer

Documents

Approval document
Technical information
Operating Instruction
pdf UL Certificate of Compliance EX2709 for Pipe Hangers, English [ 114.7 KB ]
pdf ICC ESR-4236 for HDI-P TZ Anchors in Cracked and Uncracked Concrete, English [ 1.8 MB ]
pdf FM Certificate of Compliance for HDI-TZ Anchor, English [ 200.8 KB ]

Features & Applications

Features

  • Higher productivity - designed for reduced setting time and effort, and faster installations when paired with the HDI- TZ 2-in-1 setting tool and a hammer drill
  • Increased performance – drop-in anchor with optimized length for more reliable fastenings in standard reinforced slabs and composite metal deck slabs
  • Code compliant - ICC-ESR approved for cracked/ uncracked concrete and seismic
  • Virtually dust-free – pair with Hilti Dust Removal System (DRS) for compliance with Table 1 of OSHA 1926.1153 regulations for silica dust exposure
  • Easier to specify and design – pair with PROFIS Engineering software to simplify the design of concrete connections and reduce material costs

Applications

  • Post-installed fastening point for suspended pipes, electrical conduits, cable trays, HVAC ducts and equipment, seismic bracing, and other overhead elements
  • Suitable for use in cracked and uncracked concrete including seismic areas

For approval or certificate information, please see individual items.
