HDA-P Undercut anchor

Undercut anchor HDA-P M20 x 250/100 #339266

Ultimate-performance pre-set undercut anchor for dynamic loads (zinc-plated)

  • Material, corrosion: Carbon steel, zinc-plated, Zinc plated (min. 5 microns)
  • Head configuration: Externally threaded
  • Approvals / Test reports: ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic

Customers also searched for self-undercutting anchor or undercut anchor.

Choose options

Anchor size - D
  • M10
  • M12
  • M16
  • M20
Standard embedment depth
  • 3.937 in
  • 4.921 in
  • 7.48 in
  • 9.843 in
Max. fixture thickness at standard embedment depth
  • 0.79 in
  • 1.18 in
  • 1.57 in
  • 1.97 in
  • 2.36 in
  • 3.94 in
Pack size
  • 2 pc
  • 4 pc
  • 8 pc
  • 12 pc
Product options
Quantity
Box
Total Pieces
2
You can not see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$639.00
$639.00 / 1 Box

Technical Data

Material, corrosion
Carbon steel, zinc-plated, Zinc plated (min. 5 microns)
Head configuration
Externally threaded
Approvals / Test reports
ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic
Max. fixture thickness at standard embedment depth
3.94 in
Seismic loading
Yes
Fatigue loading
Yes
PROFIS Software
Yes

Documents

Features & Applications

Features

  • Combines the flexibility and immediate loading capability of a post-installed mechanical anchor with the performance of a cast-in-place headed stud
  • Close spacing and small edge distances thanks to low expansion forces
  • Self-undercutting facilitates faster and more reliable installation without need for a separate undercutting tool or additional operations
  • The resulting keying effect provides a more secure hold even in cracked concrete under dynamic loading
  • Manufactured under an NQA-1 nuclear quality assurance program with comprehensive approvals

Applications

  • Safety-relevant, heavy-duty fastenings for all dynamic loading (shock, seismic and fatigue) in cracked or uncracked concrete, including applications in nuclear power plants

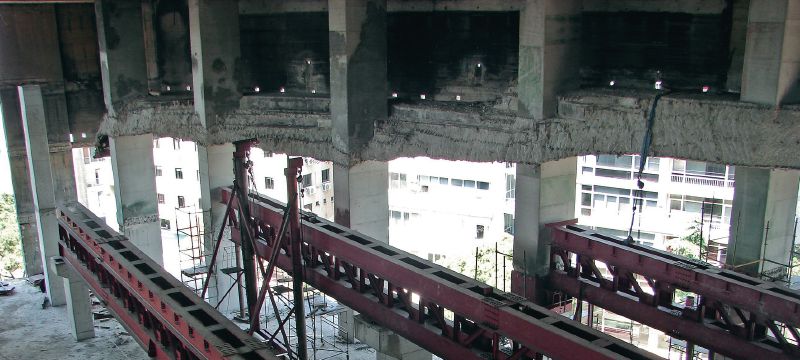

  • Fastenings to support heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fixings, elevator tracks, bridge retrofitting etc.
