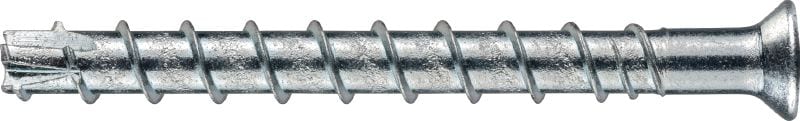

KH-EZ C Countersunk screw anchor

KH-EZ C

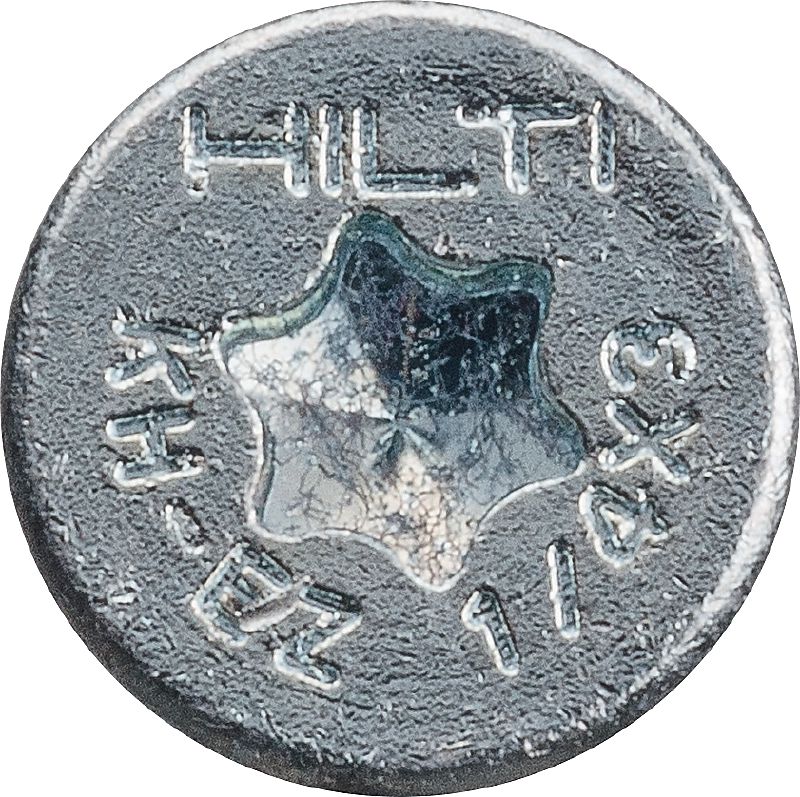

KH-EZ C head

Ultimate screw anchor for quicker and more economical fastenings to concrete (carbon steel, countersunk head)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Countersunk Torx
  • Approvals / Test reports: ICC-ES report (concrete), ICC-ES report (masonry), LABC, Miami Dade County, Seismic

Choose options

Anchor size - D
  • 1/4
  • 3/8
Anchor length - L
  • 2 in
  • 2-1/2 in
  • 3 in
  • 4 in
Pack size
  • 1 pc
  • 50 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Countersunk Torx
Approvals / Test reports
ICC-ES report (concrete), ICC-ES report (masonry), LABC, Miami Dade County, Seismic
Base materials
Concrete (cracked), Concrete (lightweight), Concrete (lightweight over metal deck), Concrete (uncracked), Masonry (grout-filled CMU)
Type of fixing
Through-fastening
Reusable (and removable)
Not Possible
Cleaning procedures
Manual Cleaning
PROFIS Software
Yes
IBC compliance
IBC 2018
Installation direction
All
Material composition
Steel, zinc-plated (min. 8 µm)

Documents

pdf ICC-ESR-3027, KH-EZ for fastening in concrete, English [ 1.6 MB ]
pdf ICC-ESR-3027-SP, KH-EZ for fastening in concrete, Spanish [ 3.1 MB ]
pdf  ICC-ESR-3056 KH-EZ for fastening in masonry, English [ 1.4 MB ]
pdf ICC-ES ESR-3056 Spanish, Spanish [ 2.2 MB ]

Features & Applications

Features

  • Countersunk head allows for a flush finish
  • Time and labor-saving concrete screw anchor – especially suited for seismic, cracked concrete and grout filled CMU applications requiring an ICC approval
  • Quicker and easier to install than wedge anchors – no cleaning, no high-accuracy torque wrench and no hammering required
  • Optimized thread design for exceptional setting performance, superior load values and reduced edge distances and spacing
  • Fully removable anchoring solution for use with standard ANSI-tolerance drill bits – no special tolerance drill bits required for these screw anchors

Applications

  • Fastening handrails, railings and other ornamental steelwork
  • Architectural steel plates
  • Piping or ventilation applications
  • Anchoring glass shoes and door thresholds

For approval or certificate information, please see individual items.
