TE-YD (SDS Max) Metric hollow drill bit

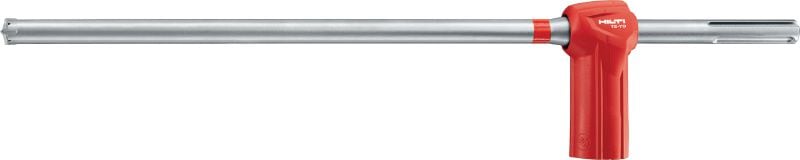

Hammer drill bit TE-YD 32mm/47" #2078885

78844.tif

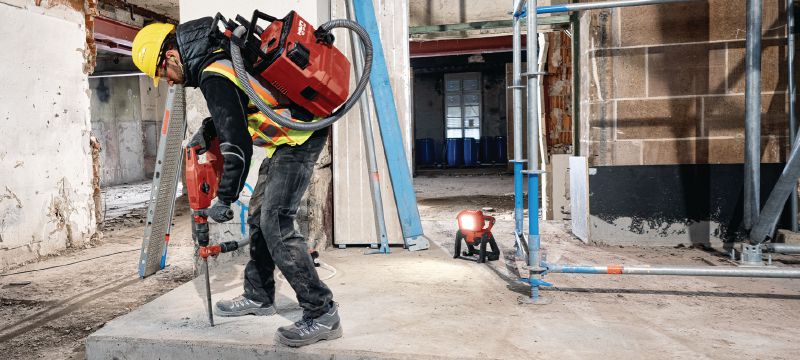

Drilling for rebar installation on reinforced concrete, with powerful SDS-Max combihammer, hollow-drill bit Safeset, vacuum cleaner.

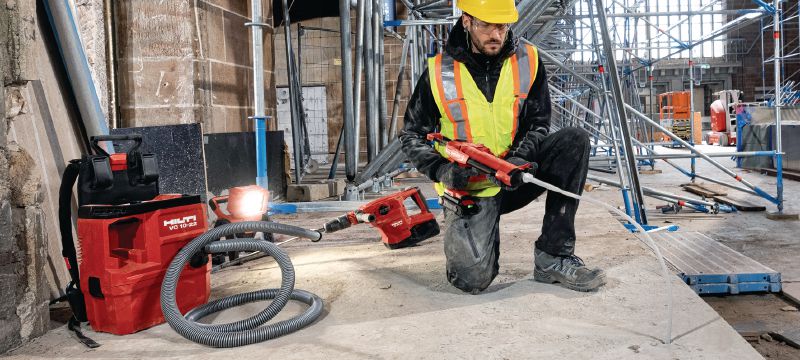

Rebar injecting with HDE 500-22, TE 60-22, SL 6-22, and VC 40-22 application image, cropped version for PDP.

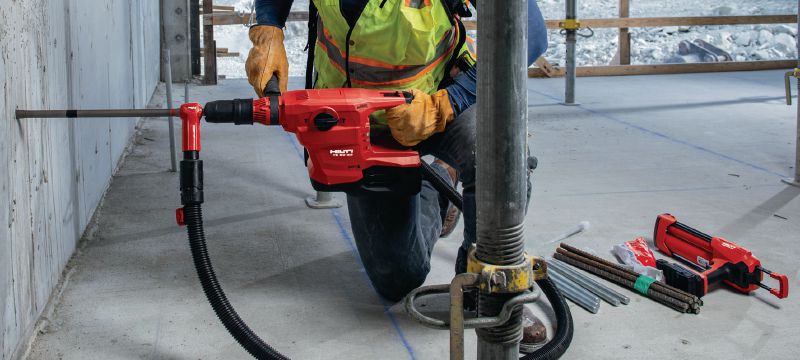

Rebar drilling application using TE 60-22 and VC 10-22 cropped version for PDP.
Drlling a hole in the wall with TE-60-22 and HDB for a HY 200-A V3 + HIT-Z installtion in water saturated concrete.
78844.tif
Drilling for rebar installation on reinforced concrete, with powerful SDS-Max combihammer, hollow-drill bit Safeset, vacuum cleaner.
Rebar injecting with HDE 500-22, TE 60-22, SL 6-22, and VC 40-22 application image, cropped version for PDP.
Rebar drilling application using TE 60-22 and VC 10-22 cropped version for PDP.
Drlling a hole in the wall with TE-60-22 and HDB for a HY 200-A V3 + HIT-Z installtion in water saturated concrete.
HIT HY 200 - Speed installation.
Hilti HIT-HY 200 proper adhesive anchor installation

Ultimate SDS Max (TE-Y) hollow drill bit for virtually dust-free drilling in concrete

  • Connection end: TE-Y (SDS Max)
  • Base material: Reinforced concrete, Concrete
  • Working mode: Hammer drilling
ultimate

Customers also searched for dust-free drill bit, dust extraction bit, hollow drill bit or SDS max.

Choose options

Diameter
  • 16 mm
  • 18 mm
  • 20 mm
  • 28 mm
  • 32 mm
  • 35 mm
Working length
  • 400 mm
  • 700 mm
  • 1000 mm
Length
  • 590 mm
  • 890 mm
  • 1190 mm
Pack size
  • 1 pc
  • 4 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

$1,075.00

$1,075.00 / 1 Each

Technical Data

Connection end
TE-Y (SDS Max)
Base material
Reinforced concrete, Concrete
Working mode
Hammer drilling
Head shape
Multi Cutter
Head material composition
Tungsten carbide
Need vacuum cleaner
Yes
Diameter
32 mm
Length
1190 mm
Working length
1000 mm
Product Class
Ultimate

Documents

Features & Applications

Features

  • Drilling and hole cleaning in one step
  • Optimum hole cleaning for consistent anchor setting
  • Robustness, lifetime and drilling speed equal to TE-YX drill bits
  • Minimized snagging or sticking when drilling into rebar

Applications

  • Drilling holes for anchoring structural steel connections (e.g. steel columns, beams)
  • Drilling holes for structural connections with post-installed rebar
  • Drilling holes for anchoring secondary steel structures (e.g. staircases, steel ledgers)
  • Drilling holes for structural renovation or upgrading with post-installed rebar
  • Drilling holes for substitution of misplaced or missing rebar
