X-ECH MX (02) Cable holder

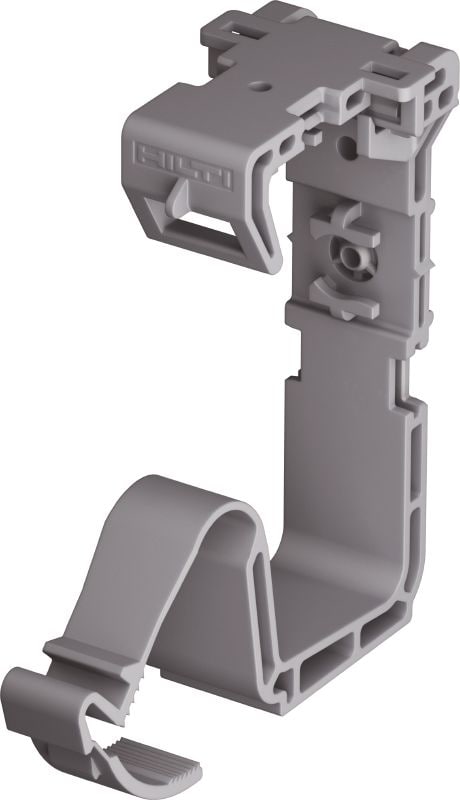

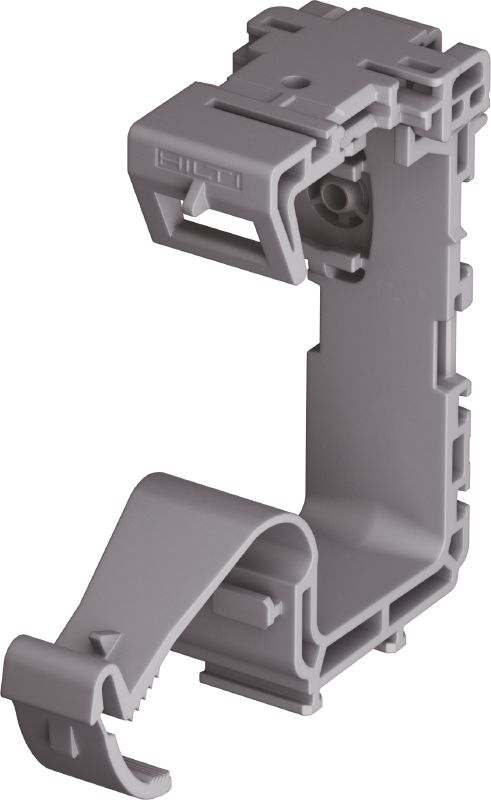

3D still life picture of the bunched Cable Holder X-ECH MX (02). Closed.
3D still life picture of the bunched Cable Holder X-ECH MX (02). Closed.

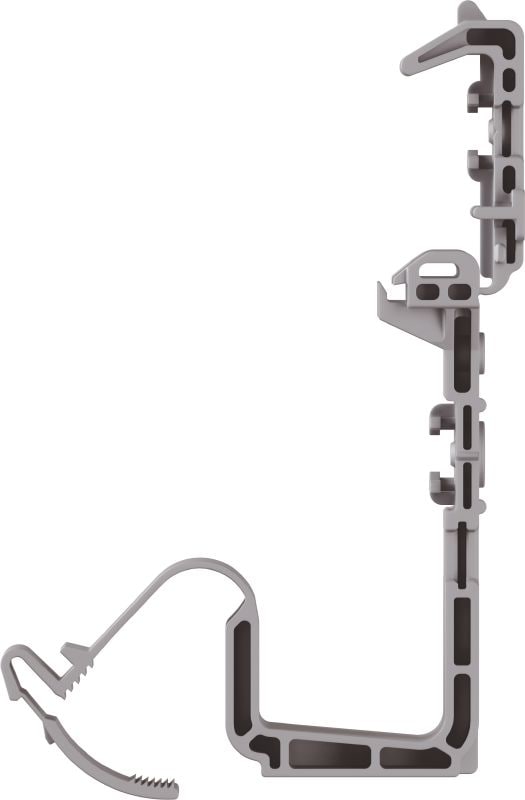

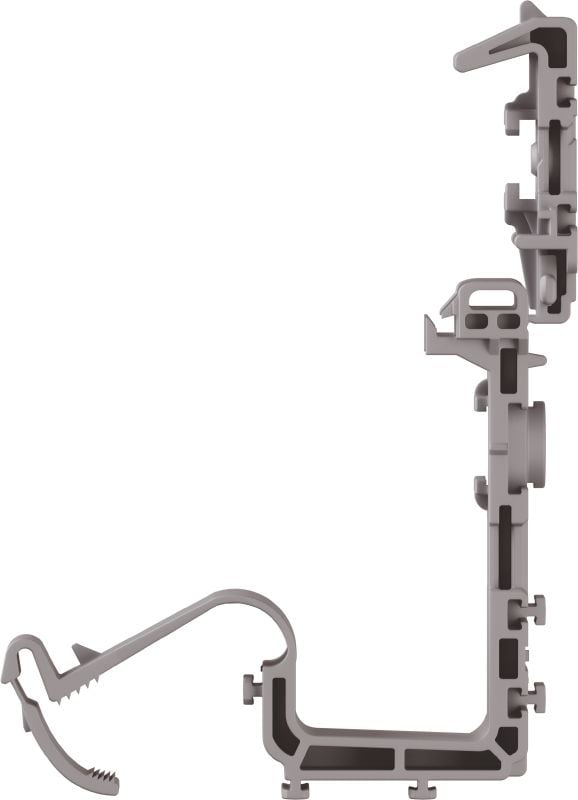

Still life picture of the bunched Cable Holder X-ECH MX (02)
Still life picture of the bunched Cable Holder X-ECH MX (02)

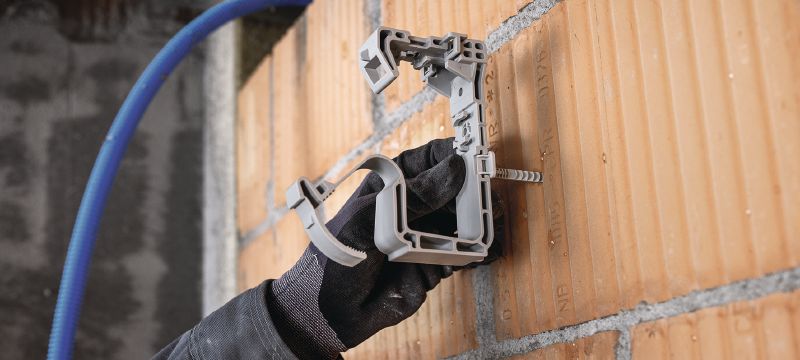

Cropped application image of jobsite worker installing the X-ECH MX bunched cable holder mounted with the X-EA push fit anchor
Cropped application image of the X-ECH MX bunched cable holder installed with the BX 4-22

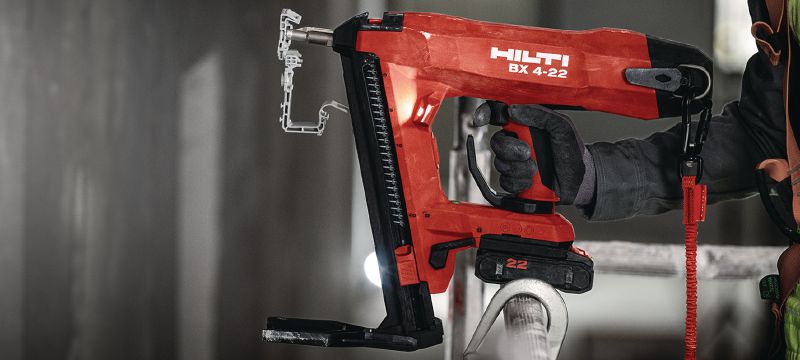

Cropped application image of jobsite worker ready to install the X-ECH MX bunched cable holder with the BX 4-22
3D still life picture of the bunched Cable Holder X-ECH MX (02). Closed.
3D still life picture of the bunched Cable Holder X-ECH MX (02). Closed.
Still life picture of the bunched Cable Holder X-ECH MX (02)
Still life picture of the bunched Cable Holder X-ECH MX (02)
Cropped application image of jobsite worker installing the X-ECH MX bunched cable holder mounted with the X-EA push fit anchor
Cropped application image of the X-ECH MX bunched cable holder installed with the BX 4-22
Cropped application image of jobsite worker ready to install the X-ECH MX bunched cable holder with the BX 4-22

Plastic bunched cable holder optimized for collated nails and compatible with a wide variety of fastening methods and base materials

  • Application: Cable Fastenings, Conduit Fastening, Electrical applications
  • Material: High-density polyethylene (HDPE)
  • For use with (tools): BX 3, GX 120, GX 3

Technical Data

Application
Cable Fastenings, Conduit Fastening, Electrical applications
Material
High-density polyethylene (HDPE)
For use with (tools)
BX 3, GX 120, GX 3
Base materials
Concrete (soft), Concrete (tough), Masonry (solid limestone brick), Steel, Wood, Masonry (hollow clay brick), Masonry (solid clay brick)
Environmental Conditions
Dry indoor

Documents

Features & Applications

Features

  • Optimized for your BX nailer – friction-fit nailer nose and drill-less fastening method allows for faster, easier, and virtually dust-free installations
  • Versatile fastening methods – compatible with nails, push-fit anchors, wood screws and standard plastic anchors for fastening to a wide variety of base materials
  • Interlocking system – fully modular system allows you the option to combine multiple cable holders and clamps to increase your range of applications
  • Made with up to 62% less product carbon footprint compared to legacy version (based on LCA according to DIN EN ISO 14040/440)
  • High-quality installations – ETA approved, UL listed and plenum rated

Applications

  • Fastening multiple electrical cables to walls and ceilings
  • Typical spacing between elements less than 50cm – load requirements must be taken into consideration
  • Fastening to virtually all base materials -concrete, masonry, brick, hollow-brick, drywall, steel, wood and more
  • For indoor applications

For approval or certificate information, please see individual items.
