FX 3 Support plates

Configurator
Technical Data
Documents
Features & Applications
Related Products

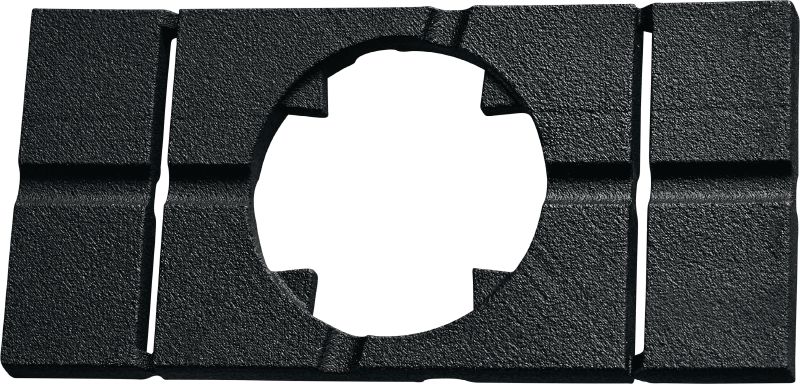

CSF support plate for F-BT-MR SN
Cropped version of the application image showing the mekano modular support installation with F-BT stud.

Support plates to create a stable base for narrow material when fastening with F-BT-MR SN fusion threaded studs

  • Application: Multi-purpose fastening (electrical, mechanical elements and support system fastenings)
  • For use with (tools): FX 3
  • Material composition: Ultramid® A3WG10

Customers also searched for support plates or stabilizing plates.

Choose options

Pack size
  • 200 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $398.00

Technical Data

Application
Multi-purpose fastening (electrical, mechanical elements and support system fastenings)
For use with (tools)
FX 3
Material composition
Ultramid® A3WG10
Environmental Conditions
Outdoor, areas with heavy industrial pollution
Base materials
Carbon steel

Documents

Technical information
Operating Instruction
pdf Cordless Stud Fusion (CSF): F-BT Visual Examination Catalogue - OTR/5724148/03, 2025-05-02, including grinding, English [ 1.3 MB ]

Features & Applications

Features

  • Provides a stable base for fastening narrow material when using F-BT studs with sealing washer
  • Helps you maximize the performance of multiple studs and fastened materials (suitable for Stud Fusion only)

Applications

  • Fastening to steel in polluted/corrosive environments (up to C5) involving higher tensile loads or thinner base materials
  • Steel fastening in oil and gas offshore installations – cable tray/ladder supports, non-critical pipe supports, multi-disciplinary supports and miscellaneous equipment fastenings
  • Steel fastening in oil and gas onshore installations – cable tray/ladder supports, non-critical pipe supports, multi-disciplinary supports and miscellaneous equipment fastenings
  • Shipbuilding – false ceiling fixing, inspection grids, water spray separators, outfitting, supports for electric/piping/ventilation services

For approval or certificate information, please see individual items.
