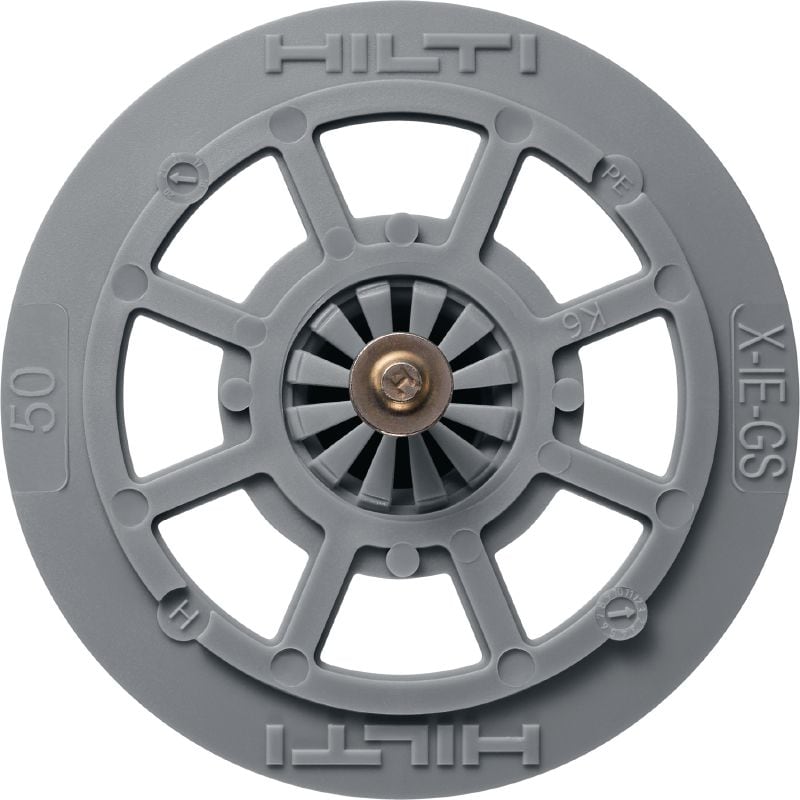

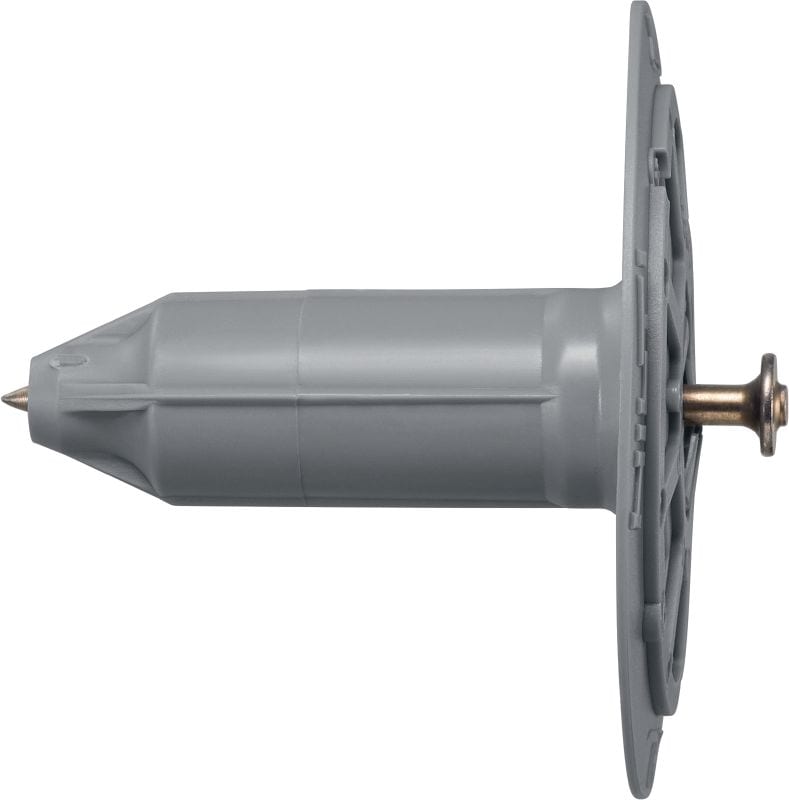

X-IE-GS Insulation Fastener

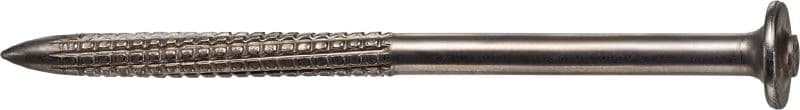

Insulation fasteners pre-mounted with high-performance knurled nails for fixing mineral wool, XPS, PIR and PUR boards through sheathing into cold-formed steel studs

  • Application: Rigid Board Insulation, Mineral Wool Insulation
  • Insulation material: Hard board (e.g. XPS, PUR, PIR - 1”- 4”), Soft board (e.g. EPS - 1”- 4”), Mineral wool (1”- 8”)
  • Base materials: Steel

Choose options

Insulation thickness
  • 1 in
  • 1.5 in
  • 2 in
  • 2.5 in
  • 3 in
  • 3.5 in
  • 4 in
  • 5 in
  • 6 in
  • 7 in
  • 8 in
Pack size
  • 1 pc
  • 100 pc
  • 200 pc
  • 400 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

From $147.00

Technical Data

Application
Rigid Board Insulation, Mineral Wool Insulation
Insulation material
Hard board (e.g. XPS, PUR, PIR - 1”- 4”), Soft board (e.g. EPS - 1”- 4”), Mineral wool (1”- 8”)
Base materials
Steel
For use with (tools)
GX-IE
Minimum thickness of base material (steel)
1 mm
Material
High-density polyethylene (HDPE)
Color
Grey

Documents

Features & Applications

Features

  • Faster and more reliable installation to steel stud framing
  • One-step installation with no additional sealing cap required
  • Sets to the right depth, helping to prevent overdrive and damage to the foil-facing insulation

Applications

  • Cold formed steel stud framing (18-12 Gauge)
  • Continuous rigid board insulation over gypsum sheathing
  • Continuous mineral wool insulation over gypsum sheathing
  • For use in 1/2" to 5/8" thick sheathing

For approval or certificate information, please see individual items.
