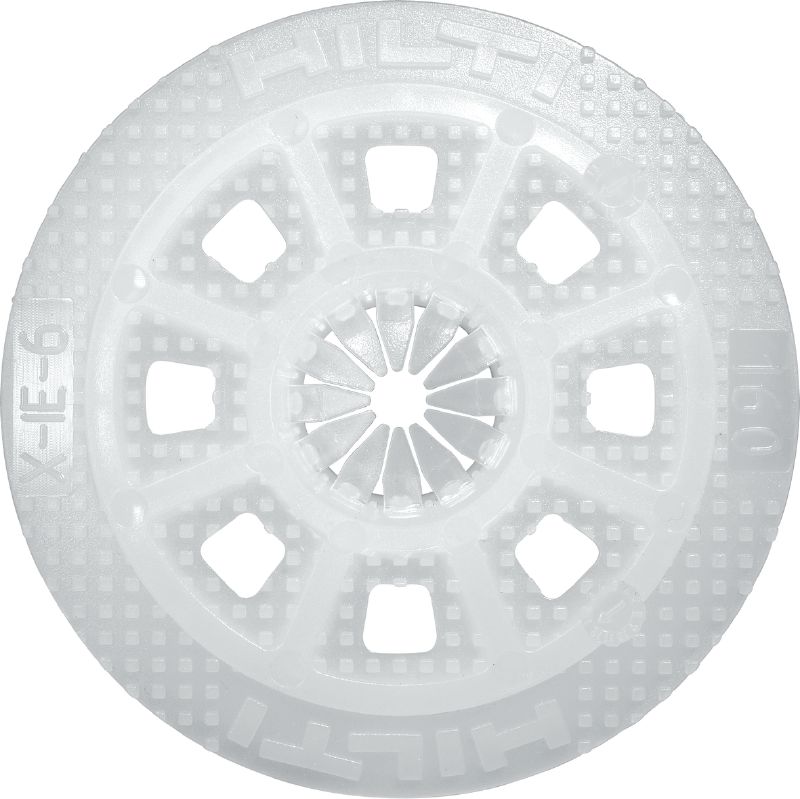

X-IE 6 Insulation fastener
Insulation fasteners for fastening mineral wool, EPS, XPS, PIR, PUR, wood-wool and fiber-cement faced boards to soft and tough concrete, masonry and steel
- Application: Rigid Board Insulation, Mineral Wool Insulation
- Insulation material: Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
- Base materials: Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)
ultimate
Customers also searched for Insulation fasteners, Insulation nails, rigid insulation fasteners, insulation board fasteners or power fasteners.
Choose options
Insulation thickness
- 3/4 in
- 1 in
- 1-3/8 in
- 1-1/2 in
- 2 in
- 2-3/8 in
- 2-3/4 in
- 3 in
- 3-1/8 in
- 4 in
- 4-3/4 in
- 5-1/2 in
- 5-7/8 in
- 6-1/4 in
- 7-1/8 in
- 7-7/8 in
Pack size
- 1 pc
- 100 pc
- 150 pc
- 200 pc
- 300 pc
- 500 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $321.00
Technical Data
Application
Rigid Board Insulation, Mineral Wool Insulation
Insulation material
Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
Base materials
Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)
For use with (tools)
DX-IE
Minimum thickness of base material (concrete)
3-1/8 in
Minimum thickness of base material (steel)
3/16 in
Material
High-density polyethylene (HDPE), Halogen-free, Silicone-free
Color
Colorless
Product Class
Ultimate
Documents
Features & Applications
Features
- Extremely quick insulation fastening system, one-step solution, up to five times faster than alternative methods
- Suitable for a wide range of insulation materials – mineral wool, EPS, XPS, PIR, PUR, soft core multilayer board, rigid core multilayer board
- Suitable for 20-200 mm thick insulation (14-197 mm for multilayer boards)
- Excellent thermal efficiency, no cap required
- No holes in the plastic shank – helping prevent mold and moisture penetration in the insulation material
Applications

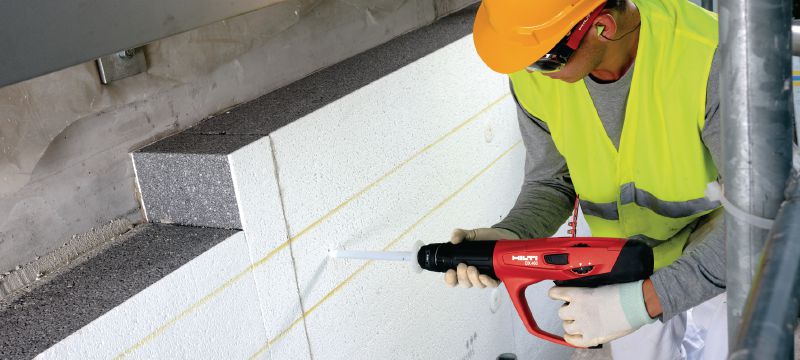

- Fastening mineral wool, EPS, XPS, PIR, PUR, wood-wool and fiber-cement faced boards to soft and tough concrete, masonry and steel

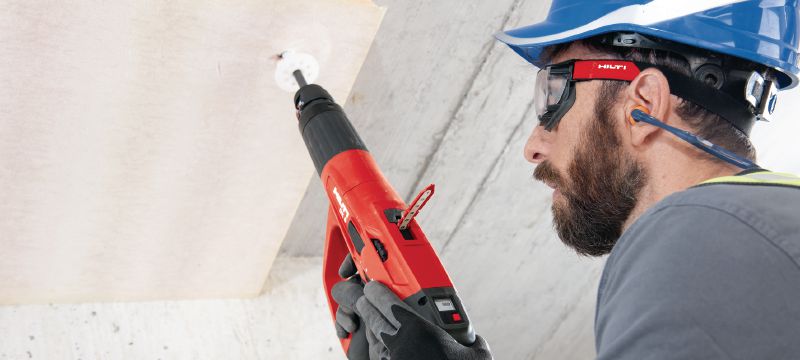

- Fastening insulation on walls and ceilings
- Light ventilated façade insulation

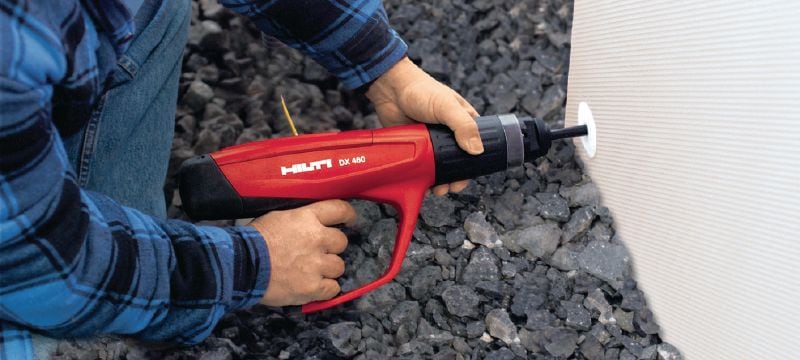

- Basement perimeter wall insulation
- Suitable for non ETICS insulation applications
For approval or certificate information, please see individual items.
Related Products

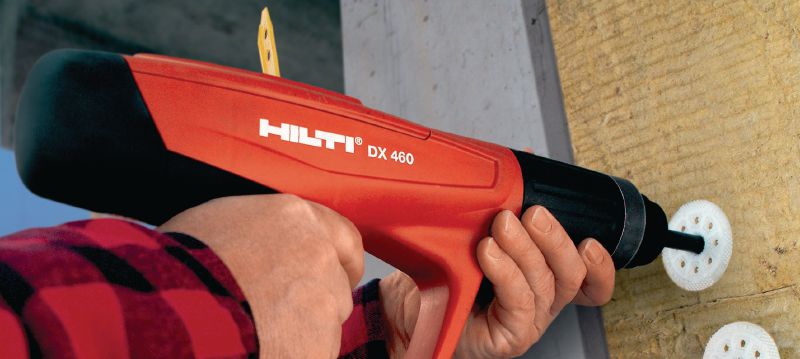

Fully automatic powder-actuated fastening nailer for fastening insulation to concrete, masonry and steel
