X-FCM-F NG Narrow grating fastener disc (duplex coated)

Configurator
Technical Data
Documents
Features & Applications
Related Products

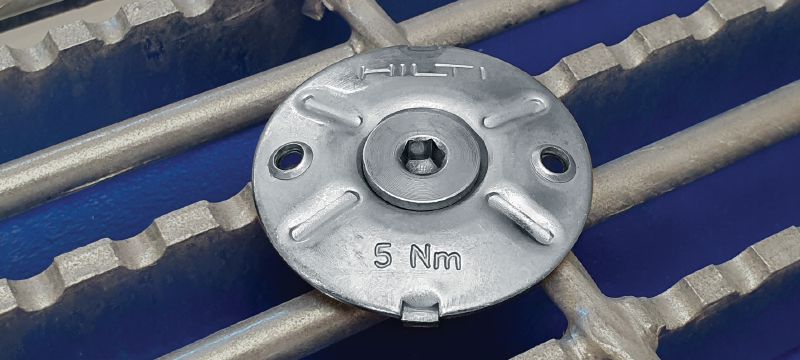

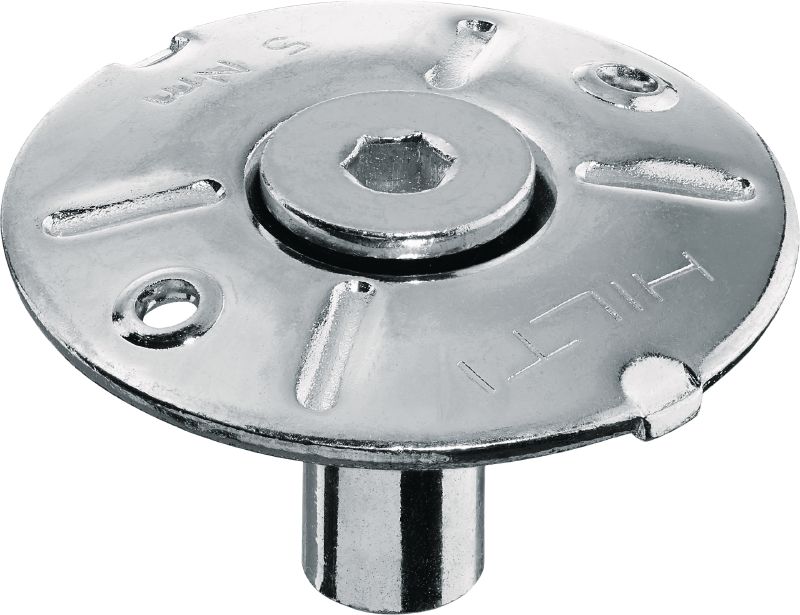

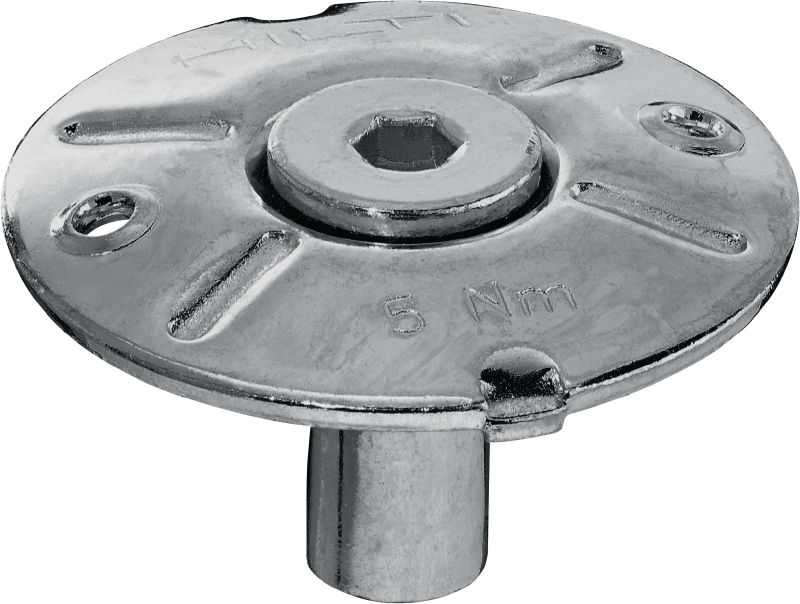

Narrow grating disc (coated)
Narrow grating elements - X-FCM-M/R NG
Narrow grating elements - X-FCM-M/R NG
Narrow grating elements - X-FCM-M/R NG

Duplex coated narrow grating fastener disc for fixing narrow-mesh floor grates with threaded studs in mildly corrosive environments

  • Application: Grating
  • For use with (tools): DX 460, DX 5, DX 6
  • Corrosion protection: Duplex coating equivalent to 45 µm hot dipped galvanized
ultimate

Choose options

Grating height
  • 29/32 - 1-3/32 in
  • 1-3/32 - 1-5/16 in
  • 1-1/4 - 1-15/32 in
  • 1-1/2 - 1-11/16 in
  • 1-7/8 - 2-3/32 in
Grating width range
  • 13 - 22 mm
Corrosion protection
  • Duplex coating equivalent to 45 µm hot dipped galvanized
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $758.00

Technical Data

Application
Grating
For use with (tools)
DX 460, DX 5, DX 6
Corrosion protection
Duplex coating equivalent to 45 µm hot dipped galvanized
Environmental Conditions
Dry indoor, Indoor environments with temporary condensation, Outdoor temporary applications, Outdoor, rural or urban environment with low pollution, Outdoor with moderate concentration of pollution
Minimum thickness of base material (steel)
6 mm
Product Class
Ultimate

Documents

Approval document
Brochure
Certificate
Operating Instruction
pdf LR Type Approval LR21394055TA for S-BT fastening system in off-shore, shipbuilding and industrial application, English [ 470.9 KB ]
pdf RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English [ 108.1 KB ]
pdf ABS Type Approval 22-2285526-PDA for X-FCM-R, X-FCM-F grating and X-FCP checker plate fasteners in marine, off-shore and industrial environments, English [ 110.3 KB ]
pdf DNV Type Approval TAS00001UJ for X-FCM-R, X-FCM-F and X-FCS-R grating fasteners in marine and industrial environments, English [ 209.6 KB ]
pdf BV Type Approval 71291-A0 for X-FCM-R, X-FCM-F and X-FCS-R grating fasteners in marine environments, English [ 577.8 KB ]

Features & Applications

Features

  • Labor-saving grating installation – fewer steps than traditional grating clamps and welding
  • Approvals and certificates – technical data, test reports and approvals available
  • No surface rework needed – when fastening grating to steel with S-BT and X-BT threaded studs
  • Durable hold – locking tabs on the disc help to prevent loosening or spinning
  • Reduce trip hazards – non-slip surface and minimized protrusion on walkway gratings when correctly installed

Applications

  • Fastening narrow grating to steel in mildly corrosive C3 environments, such as power plants, industrial facilities and mining
  • For gratings exposed to standard loads such as walkways
  • Fastening narrow-mesh steel grating

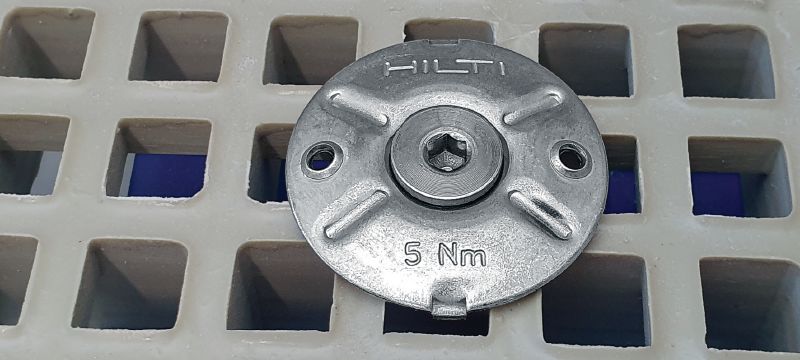

  • Fastening fiber-reinforced plastic (FRP) mini-mesh grating
  • Grating fastener disc for use with M8 threaded studs

For approval or certificate information, please see individual items.
