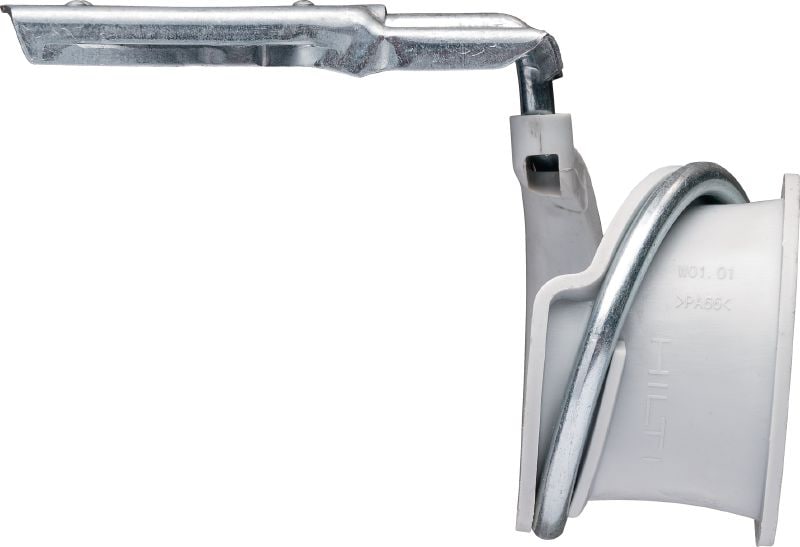

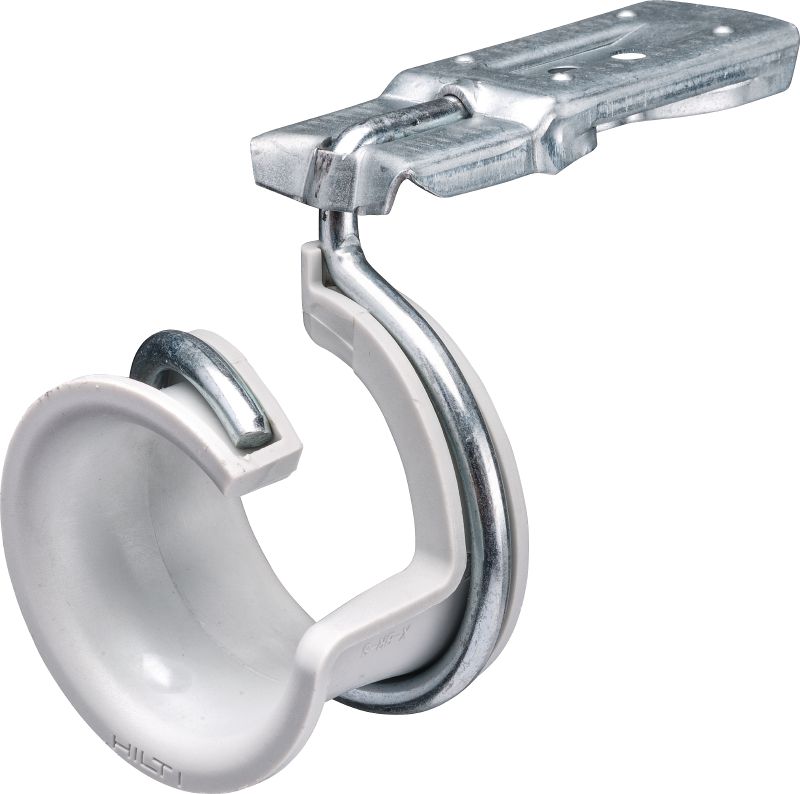

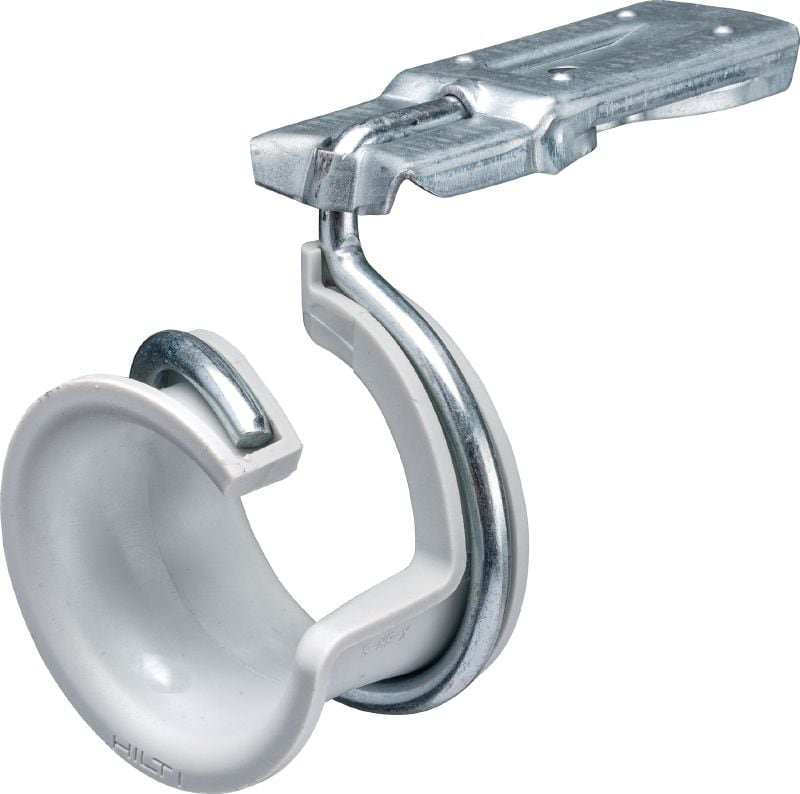

X-BR S MX Bridle ring with saddle

Bridle ring X-BR S 2" MX #2229905

Configurator
Technical Data
Documents
Features & Applications
Related Products

Bridle ring with plastic saddle for use with battery-actuated tools

  • Application: Suspended systems
  • Material: Carbon steel, Polyamide (PA), Flame-retardant, Plenum rated
  • For use with (tools): BX 3, BX 4-22
premium

Customers also searched for bridle, ring, bridle ring or saddle.

Choose options

Nominal size
  • 2"
Pack size
  • 50 pc
 Product options
Quantity
Box
Total Pieces
50
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$194.25
$194.25 / 1 Box

Technical Data

Application
Suspended systems
Material
Carbon steel, Polyamide (PA), Flame-retardant, Plenum rated
For use with (tools)
BX 3, BX 4-22
Base materials
Concrete (soft), Concrete (lightweight over metal deck), Steel
Cable capacity (CAT 5e cable, 70% fill rate)
37
Environmental Conditions
Dry indoor
Cable capacity (CAT 6 cable, 70% fill rate)
30
Cable capacity (CAT 6A cable, 70% fill rate)
17
Product Class
Premium

Documents

Approval document
Technical information
Operating Instruction
pdf UL-E505554_X-DR_X-BR_Cables-Conduits_2024-06-21, English [ 99.6 KB ]
pdf UL-Can_E505554_X-DR_X-BR_Cables-Conduits_2024-12-13, English [ 100 KB ]

Features & Applications

Features

  • Time-saving solution – bridle ring pre-assembled with baseplate and plastic saddle, delivered ready to install using battery-actuated tools
  • Plenum-rated plastic saddle – increases the bearing surface area to provide the optimal bending radius and support for data cable bundles
  • Safer and higher-productivity method for overhead applications – battery-actuated tools with a compatible pole tool remove the need for lifts and ladders
  • One-handed installation – slide-in connection grips the baseplate to the BX tool
  • Combustion-free installation with BX tool – no gas cans or powder cartridges to store and dispose of

Applications

  • Support for high-performance data cable bundles
  • Support for sensitive wires and low-voltage cables
  • Support for cables in air handling (plenum-rated) spaces
