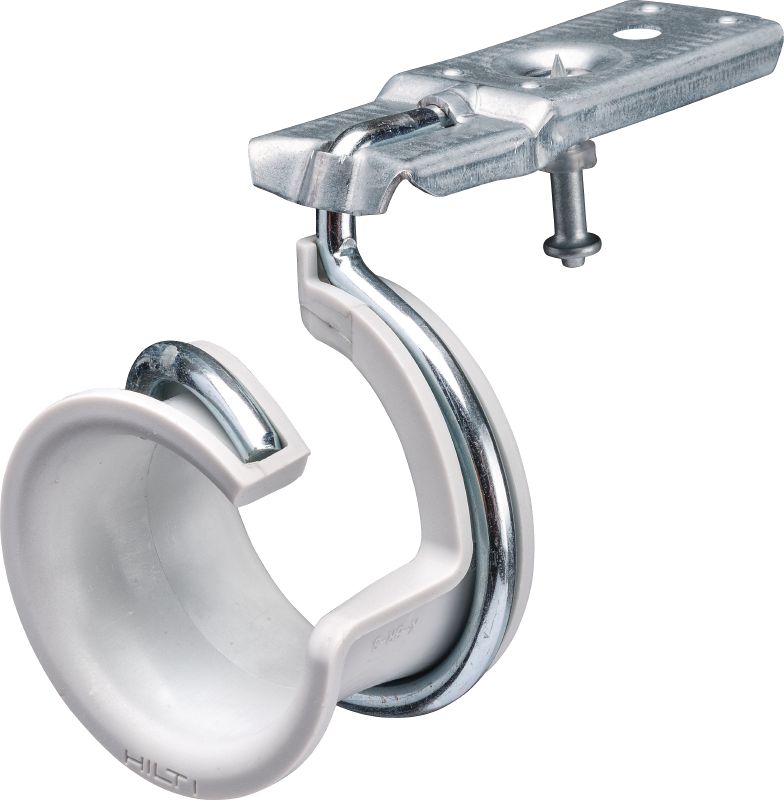

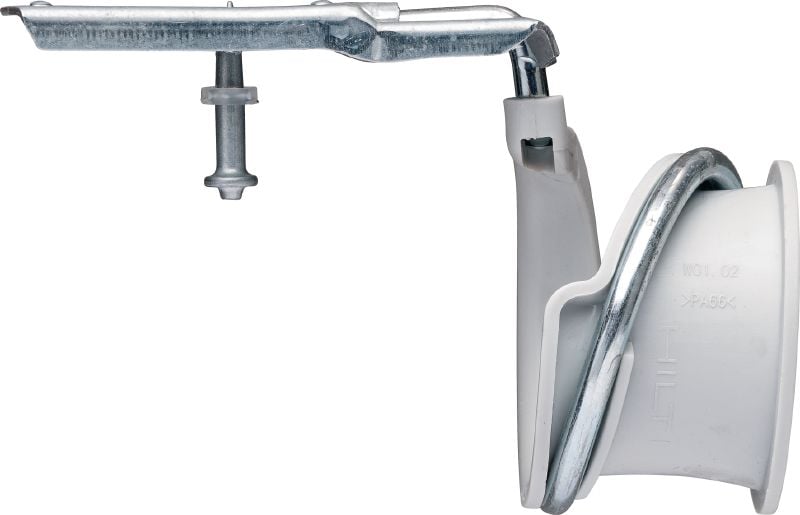

X-BR S Bridle ring with saddle and nail

Bridle ring X-BR S 2" ALH27 #2230060

Bridle ring with plastic saddle and pre-mounted nail for use with powder-actuated tools on tough concrete

  • Application: Suspended systems
  • Material: Carbon steel, Polyamide (PA), Flame-retardant, Plenum rated
  • For use with (tools): DX 351, DX 460, DX 5, DX 6
ultimate

Customers also searched for bridleringbridle ring or saddle.

Choose options

Nominal size
  • 2"
Pack size
  • 50 pc
Product options
Quantity
Box
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

$229.00

$229.00 / 1 Box

Technical Data

Application
Suspended systems
Material
Carbon steel, Polyamide (PA), Flame-retardant, Plenum rated
For use with (tools)
DX 351, DX 460, DX 5, DX 6
Base materials
Concrete (very tough), Concrete (tough), Concrete (normal-weight over metal deck)
Cable capacity (CAT 5e cable, 70% fill rate)
37
Environmental Conditions
Dry indoor
Cable capacity (CAT 6 cable, 70% fill rate)
30
Cable capacity (CAT 6A cable, 70% fill rate)
17
Product Class
Ultimate

Documents

Features & Applications

Features

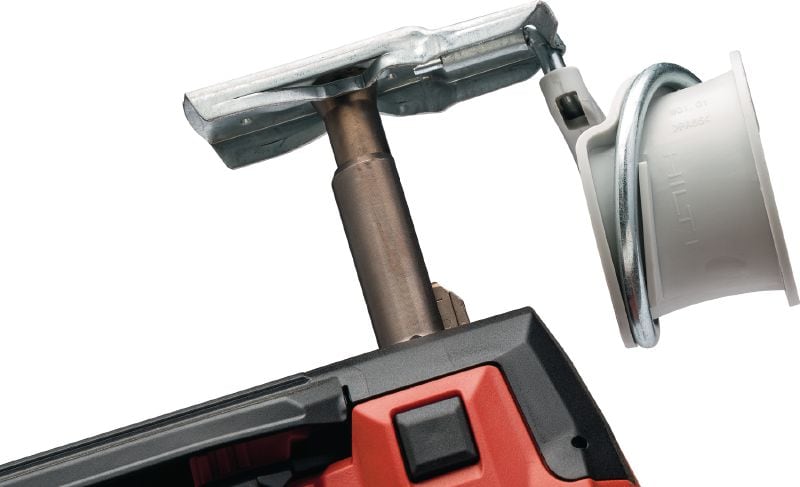

  • Time-saving solution – bridle ring pre-assembled with baseplate, plastic saddle and DX ALH nail, delivered ready to install using powder-actuated tool
  • Plenum-rated plastic saddle – increases the bearing surface area to provide the optimal bending radius and support for data cable bundles
  • Safer and higher-productivity method for overhead applications – powder-actuated tools with a compatible pole tool remove the need for lifts and ladders
  • Maximized stick rate – high-performance pre-mounted ALH nail for tough concrete
  • Virtually dust-free solution – no drilling required

Applications

  • Support for high-performance data cable bundles
  • Support for sensitive wires and low-voltage cables
  • Support for cables in air handling (plenum-rated) spaces
