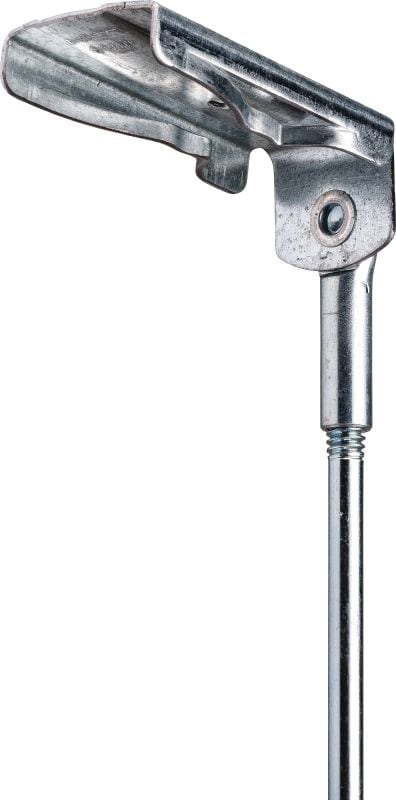

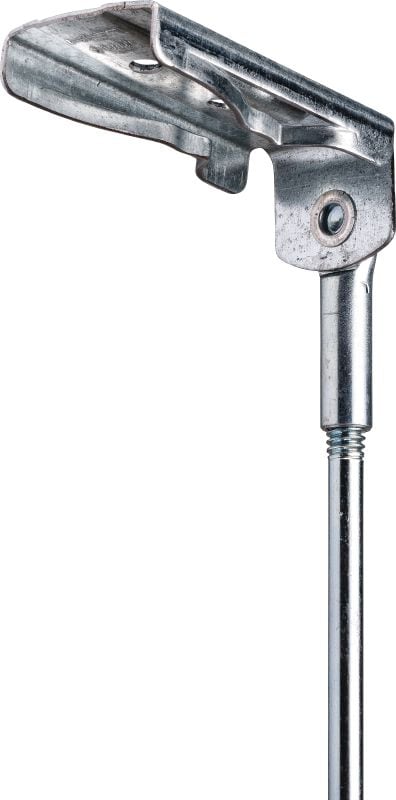

X-DR S MX Drop rod
Smooth drop rod for use with battery-actuated tools
- Application: Suspended systems
- Material: Carbon steel
- For use with (tools): BX 3
premium
Customers also searched for drop rod, rod, pencil rod, smooth rod or slick rod.
Choose options
Rod/wire length
- 12 in
- 24 in
- 36 in
- 48 in
- 72 in
Pack size
- 25 pc
- 50 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $165.00
Technical Data
Application
Suspended systems
Material
Carbon steel
For use with (tools)
BX 3
Base materials
Concrete (soft), Concrete (lightweight over metal deck), Steel
Approvals (global)
UL, ICC ES
Type of rod
smooth
Environmental Conditions
Dry indoor
Product Class
Premium
Documents
Features & Applications
Features
- Time-saving solution – pre-assembled ¼” smooth rod, delivered ready to install using battery-actuated tools
- Drop rod is considered a rigid system – no extra attachment to the ceiling grid needed (as per NEC 300.11)
- One-handed installation – slide-in connection grips the baseplate to the BX tool

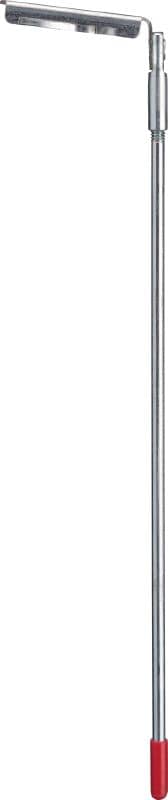

- Safer and higher-productivity method for overhead applications – battery-actuated tools with a compatible pole tool to remove the need for lifts and ladders
- Combustion-free installation with BX tools – no gas cans or powder cartridges to store and dispose of
Applications
- Fastening overhead electrical hanging systems
- Works with all Hilti cable and conduit hanging elements (data hooks, batwings and MC stackers)
For approval or certificate information, please see individual items.
Related Products
Data cable hook with batwing clip for supporting cable bundles on a drop rod
MC/AC cable stacker with batwing clip for supporting multiple metal-clad/armored cables to a drop rod
Batwing hanger for attaching single MC/AC cables, EMTs and rigid conduits to drop rods, wires or beam flanges
Ultimate-performance collated nails for fastening to concrete and other base materials using the BX 3 cordless nailer
