X-DR T MX Threaded drop rod

Configurator
Technical Data
Documents
Features & Applications
Related Products

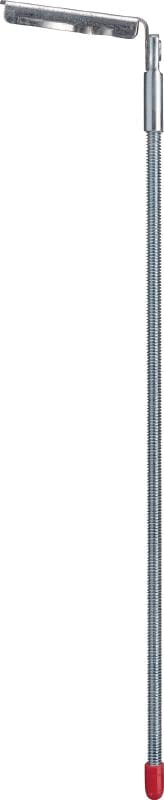

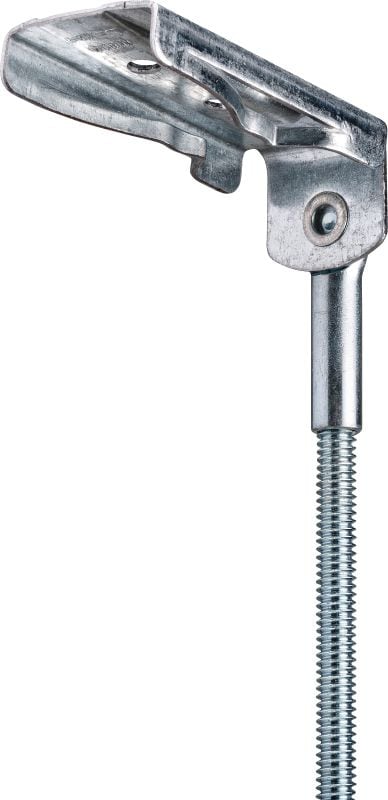

Still life image of the drop rod X-DR T MX
X-DR T MX

Threaded drop rod for use with battery-actuated tools

  • Application: Suspended systems
  • Material: Carbon steel
  • For use with (tools): BX 3, BX 4-22

Customers also searched for drop rod, rod, threaded, threaded rod or rod hanger.

Choose options

Rod/wire length
  • 12 in
  • 24 in
  • 48 in
  • 72 in
Pack size
  • 25 pc
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $165.00

Technical Data

Application
Suspended systems
Material
Carbon steel
For use with (tools)
BX 3, BX 4-22
Base materials
Concrete (soft), Concrete (lightweight over metal deck), Steel
Approvals (global)
UL, ICC ES
Type of rod
threaded
Environmental Conditions
Dry indoor

Documents

Approval document
Technical information
Operating Instruction
pdf UL-E505554_X-DR_X-BR_Cables-Conduits_2024-06-21, English [ 99.6 KB ]
pdf UL-Can_E505554_X-DR_X-BR_Cables-Conduits_2024-12-13, English [ 100 KB ]
pdf ICC ESR-2795 for Low-Velocity Power-Actuated X-DR, X-DR MX and X-HS Rod Hanger Assemblies, English [ 886.1 KB ]

Features & Applications

Features

  • Time-saving solution – pre-assembled ¼” threaded rod, delivered ready to install using battery-actuated tools
  • Drop rod is considered a rigid system – no extra attachment to the ceiling grid needed (as per NEC 300.11)
  • One-handed installation – slide-in connection grips the baseplate to the BX tool
  • Safer and higher-productivity method for overhead applications – battery-actuated tools with a compatible pole tool to remove the need for lifts and ladders
  • Combustion-free installation with BX tools – no gas cans or powder cartridges to store and dispose of

Applications

  • Fastening overhead electrical hanging systems
  • Works with all Hilti cable and conduit hanging elements (data hooks, batwings and MC stackers)

For approval or certificate information, please see individual items.
