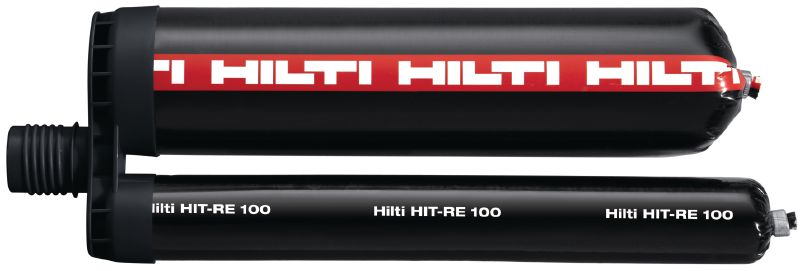

HIT-RE 100 Epoxy anchor

L041483_V6.tif

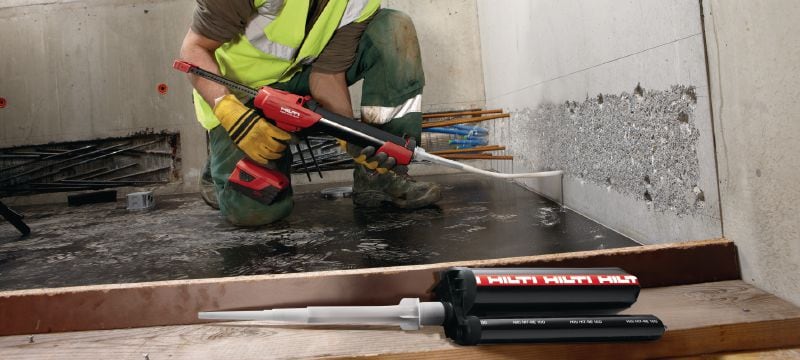

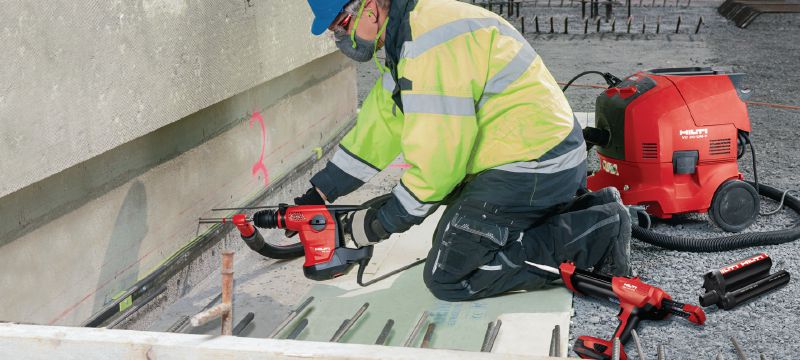

RE100 with Hollow drill bit and Electric dispenser
L065051_RE100.tiff
L065008_RE100.tiff

High-performance injectable epoxy mortar with everyday approvals for anchoring and rebar connections in concrete

  • Base materials: Concrete (cracked), Concrete (uncracked)
  • Base material condition (as per approval): Dry
  • IBC compliance: IBC 2015, IBC 2018, IBC 2021

Choose options

Content per can/cartridge
  • 11.16 fl oz (US)
  • 16.91 fl oz (US)
Return Policy
  • No Returns
Pack size
  • 1 pc
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $17.25

Technical Data

Base materials
Concrete (cracked), Concrete (uncracked)
Base material condition (as per approval)
Dry
IBC compliance
IBC 2015, IBC 2018, IBC 2021
Seismic loading
Yes
PROFIS Software
Yes
Anchoring elements
HIS-N internally threaded rods, Rebar
Cleaning procedures
Manual Cleaning
Storage and transportation temperature range
41 - 77 °F
In-service temperature – range
-40 - 158 °F

Documents

pdf ICC-ESR-3829, Hilti HIT-RE 100 for fastening in concrete, English [ 4.5 MB ]
pdf ETA-15/0882, Hilti HIT-RE 100 for fastening in concrete, static loading condition, ML, English, German [ 7.3 MB ]
pdf ETA-15/0883, Hilti HIT-RE 100 for rebar connection, static/fatigue loading condition, ML, German, English, Polish [ 7 MB ]
pdf ICC-ESR-3829 for HIT-RE 100 Adhesive Anchoring System in Cracked and Un-Cracked Concrete (April 2025), English [ 3.9 MB ]

Features & Applications

Features

  • Suitable for cracked and uncracked concrete
  • Suitable for indoor and outdoor applications as well as use in a wide variety of base material conditions - dry, wet, water-filled (depending on rod specification and approvals)
  • Achieves equal to cast-in performance for post-installed rebar designed according to the Eurocode, both for static and seismic load conditions
  • Compatible with hollow drill bits for automatic cleaning and electrical dispenser for accurate dosing, enabling faster, simpler and safer installation
  • Long working time allows greater flexibility in installation

Applications

  • Substitution of misplaced / missing rebars
  • Renovation / upgrades with post-installed rebars
  • Rebar doweling / connection of post-installed rebars, also in seismic regions
  • Anchoring secondary steel elements
  • Anchoring structural steel connections (e.g. steel columns, beams)

For approval or certificate information, please see individual items.
