Kwik-X Dual Action Anchor
Dual Action Anchor System includes KH-EZ screw anchors and KHC adhesive capsules. For fastening in concrete with performance of adhesive anchors and installation speed and simplicity of screw anchors
- Base material temperature at installation - range: -18 - 104 °F
- Tested/approved for diamond drilling: Yes, with DD 30-W
- SAFEset: Yes
Choose options
- 3/8"
- 1/2"
- 5/8"
- 3/4"
- ≤ 3 in
- > 3 in
- ≤ 4-1/4 in
- > 4-1/4 in
- ≤ 4-1/2 in
- > 4-1/2 in
- 3 in
- 3-1/2 in
- 4 in
- 4-1/2 in
- 5 in
- 5-1/2 in
- 6 in
- 7 in
- 8 in
- 9 in
- No Returns
- 1 pc
Technical Data
Documents
Features & Applications
Features
- Unmatched combination of load capacity, productivity and simplicity – new dual-action technology combining the performance of adhesive anchors with the installation speed and simplicity of screw anchors
- Easier to install – SafeSet method and pre-configured adhesive capsules reduce the number of steps in the installation process and eliminate the need for accessories like brushes, air pumps and dispensers
- Up to 4x faster installation than injectable mortars – significantly reduce labor costs due to faster, easier setting with an impact driver, and possibility of immediate loading
- Extensive technical data including ESR for concrete, seismic category A-F – maximum application coverage and design flexibility fully supported by the PROFIS Engineering software suite
Applications
- Fastening structural and non-structural steel baseplates to concrete
- Industrial fastenings – racking, machinery and other equipment

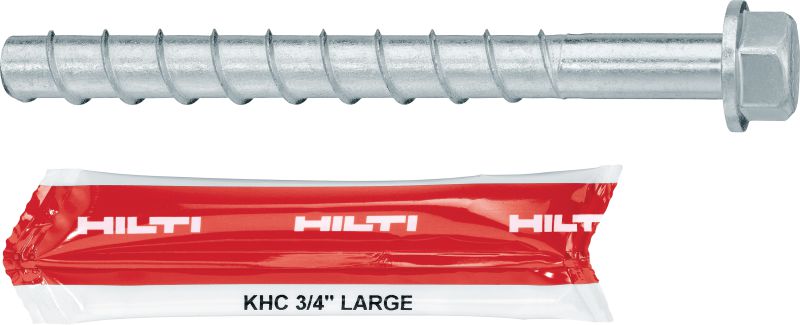

- The Kwik-X Dual Action anchor comprises the KHC adhesive capsule and the KH-EZ screw anchor for high-performance anchoring of steel to concrete
For approval or certificate information, please see individual items.
Related Products
Consulting & Support
Would you like an interactive demonstration of this product? Meet one of our product experts for a free and hands-on demonstration.
Use this instant messaging tool to get easy and quick access to our Customer Service team. This service is available during business hours 8:00AM to 5:00 PM CST.
Kwik-X Dual Action Anchor
Simplicity of a mechanical anchor with high capacity performance of an adhesive
Save time on the jobsite and help minimize the risk of installer error with the Kwik-X system, comprised of the Kwik-HUS Capsule (KHC) and Kwik HUS-EZ screw anchors (either zinc plated carbon steel, mechanically galvanized (CRC) or stainless steel 316). Kwik-X is the only Dual Action system on the market. Dual action technology offers the high performance of adhesive anchors and the installation speed and simplicity of screw anchors.
Applications:
- Fastening structural and non-structural steel baseplates to concrete
- Industrial fastenings - racking, machinery and other equipment
Features and Benefits of Kwik-X
Dual Action Technology
Provides an unmatched combination of load capacity, productivity and simplicity to help you save time on the jobsite.
Up to 4x Faster Installation
Significantly reduces labor costs due to faster setting with an impact wrench and the possibility of immediate loading.
Efficient Installation
Reduces complex steps like hole cleaning, epoxy injection and curing without compromising the integrity of the application.
Maximum Coverage
Allows you to have maximum application coverage in cracked concrete and seismic categories A-F with a design flexibility fully supported by the PROFIS Engineering software suite.
Drill, Drop, Drive, Done

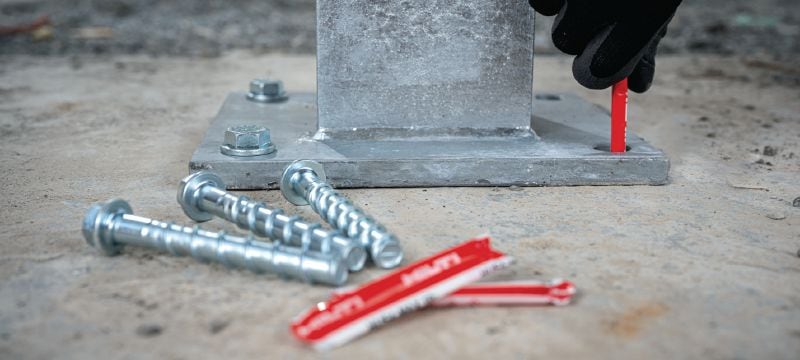

DRILL the hole

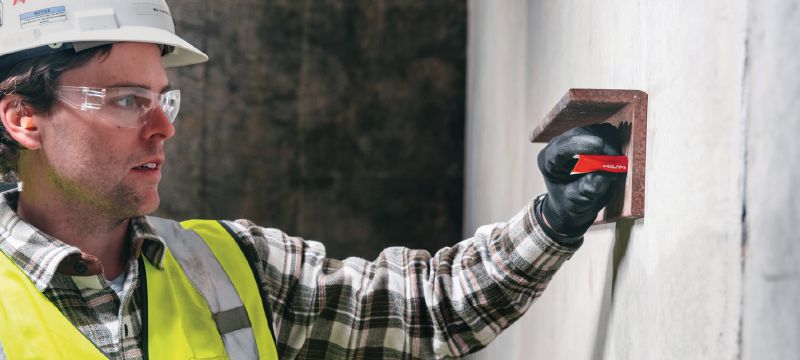

DROP the capsule
DRIVE in the screw
And you're DONE
Hilti SafeSet Installation
With Kwik-X and SafeSet methods of installation, cleaning is not a requirement, reducing or eliminating the need for manual cleaning. Utilizing SafeSet ensures OSHA Table 1 compliance (ie ensuring OSHA 19226.1145 Table 1 compliant installation).
Baseplate Design and Installation
Faster and safer solutions for your connections from steel skeletons and staircases to handrails and outdoor seating – help speed up design and installation of your baseplates without compromising on quality and safety.
