HAC Cast-in anchor channel

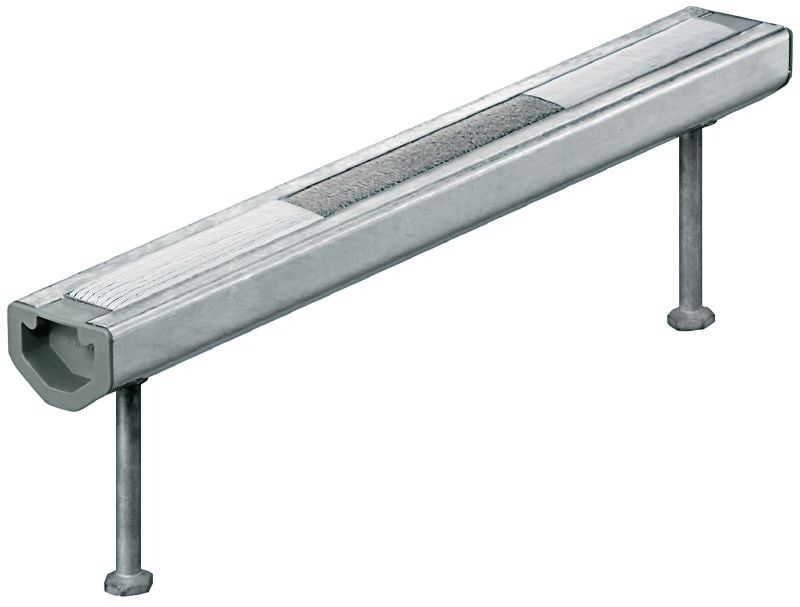

Anchor channel HAC-50 106/1300 F #2122544

Configurator
Technical Data
Documents
Features & Applications
Related Products
Cast-In
Anchor Channel
35965.tif
Cast-In
Anchor Channel
CI_HAC-50,_Anchor_Channel
HAC-50,_Anchor_Channel

Cast-in anchor channels in standard sizes and lengths with the regulatory approvals needed for virtually any challenging project

  • Material, corrosion: Carbon steel, HDG (Hot-Dip Galvanized)/Sherardized
  • Channel profile: HAC-50
  • Length: 51.18 in

Customers also searched for halfen, hta or embed.

Choose options

Channel profile
  • HAC-50
Length
  • 51.18 in
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$157.00
$157.00 / 1 Each

Technical Data

Details
Technical illustrations
Material, corrosion
Carbon steel, HDG (Hot-Dip Galvanized)/Sherardized
Channel profile
HAC-50
Length
51.18 in
Standard embedment depth
4.173 in
Anchor distance
9.84 in
PROFIS Software
Yes

Documents

Approval document
HSE Information
Technical information
Documentation
Operating Instruction
pdf ICC-ESR 3520 for HAC-V Anchor Channel Systems in Cracked and Uncracked Concrete incl. LABC and FBC Supplement (Aug. 2025), English [ 3.7 MB ]
pdf ETA_11_0006_HAC_Anchor_Channels, German [ 6.9 MB ]

Features & Applications

Features

  • High-performance solution – designed for challenging loads and design parameters
  • Approved for static, fatigue, seismic and fire loading
  • Customizable – options available for virtually any specification
  • Low-energy manufacturing – cast-in anchor channels can contribute to environmental certification of construction projects
  • High-precision manufacturing

Applications

  • Curtain wall façades (e.g. fixing curtain wall elements with brackets)
  • Elevators (e.g. fixing guiderails, sliding doors or divider beams)
  • Projects with high environmental standards
  • Building appliances (e.g. heating, ventilation)
  • Power plants
