HAC Top-of-slab rebar channel for corners

Configurator
Technical Data
Documents
Features & Applications
Related Products

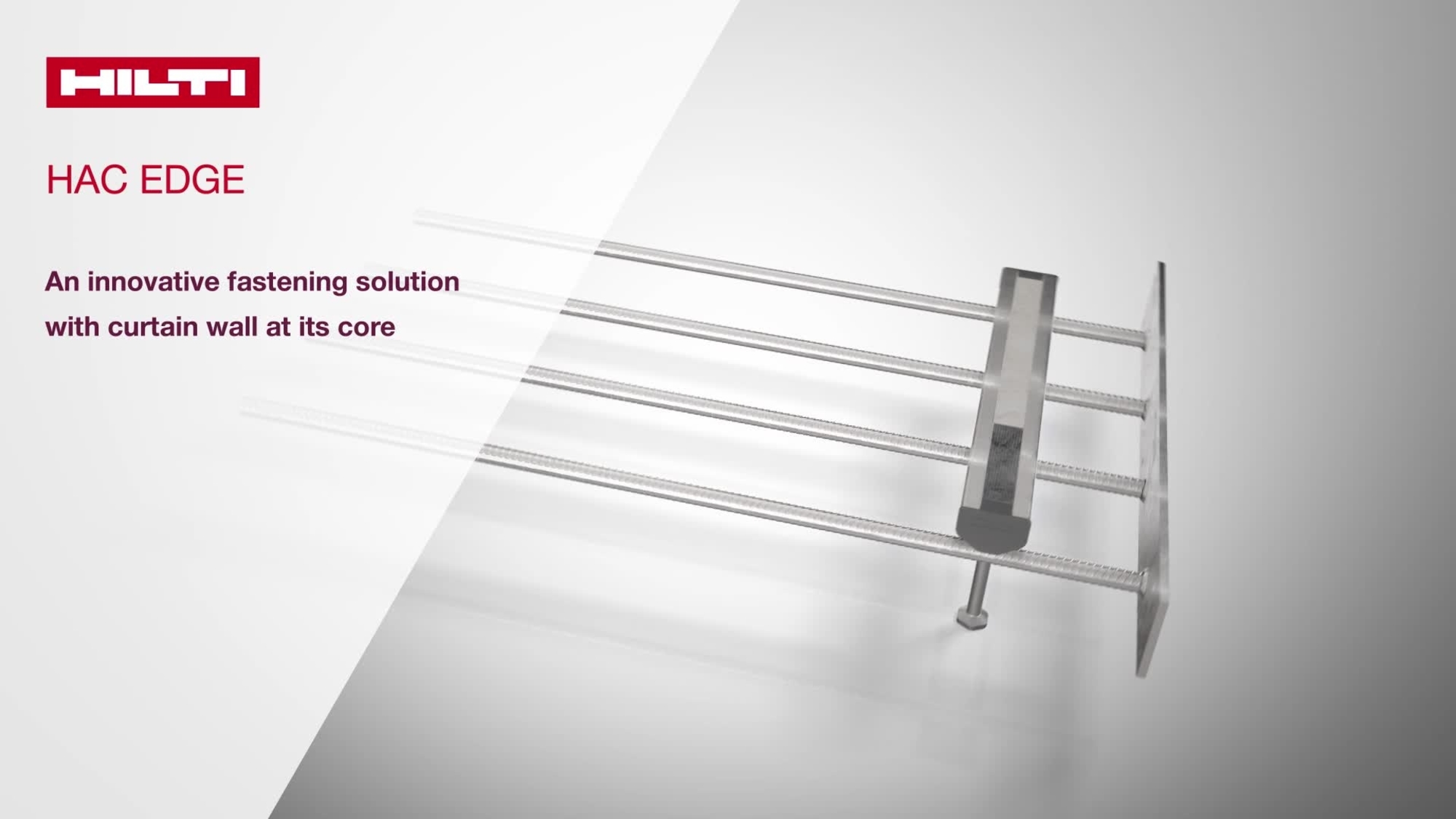

Cast-in anchor channel with rebars for fixing in concrete suitable for high loads
Cast-in anchor channel with rebars for fixing in concrete suitable for high loads

Cast-in anchor channels in standard sizes and lengths for top-of-slab corner applications

  • Material, corrosion: Carbon Steel, Hot-Dip Galvanized
  • Channel profile: HAC-50
  • PROFIS Software: Yes

Choose options

Channel profile
  • HAC-50
Length
  • 11.81 in
  • 17.72 in
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $58.25

Technical Data

Material, corrosion
Carbon Steel, Hot-Dip Galvanized
Channel profile
HAC-50
PROFIS Software
Yes

Documents

pdf HAC-V_Inventory Selector Guide_EN, English [ 630.4 KB ]
pdf Instructions for use HAC-EDGE and HAC-EDGE C [ 2.2 MB ]
pdf LEED Information HAC Anchor Channels and System Components, English [ 160 KB ]

Features & Applications

Features

  • Higher shear load resistance due to confinement of concrete edge
  • Suitable for small edge distances and thin concrete slabs
  • Available for different edge distances, already set for quicker installation
  • Serrated channel available – for seismic-relevant applications and 3D loads
  • Increased design freedom – solution for designs, where standard HAC anchor channel reaches application limits

Applications

  • Installing curtain wall brackets on anchor channels in top-of-slab position, especially in building corners
  • Fastening to thin concrete slabs

For approval or certificate information, please see individual items.
